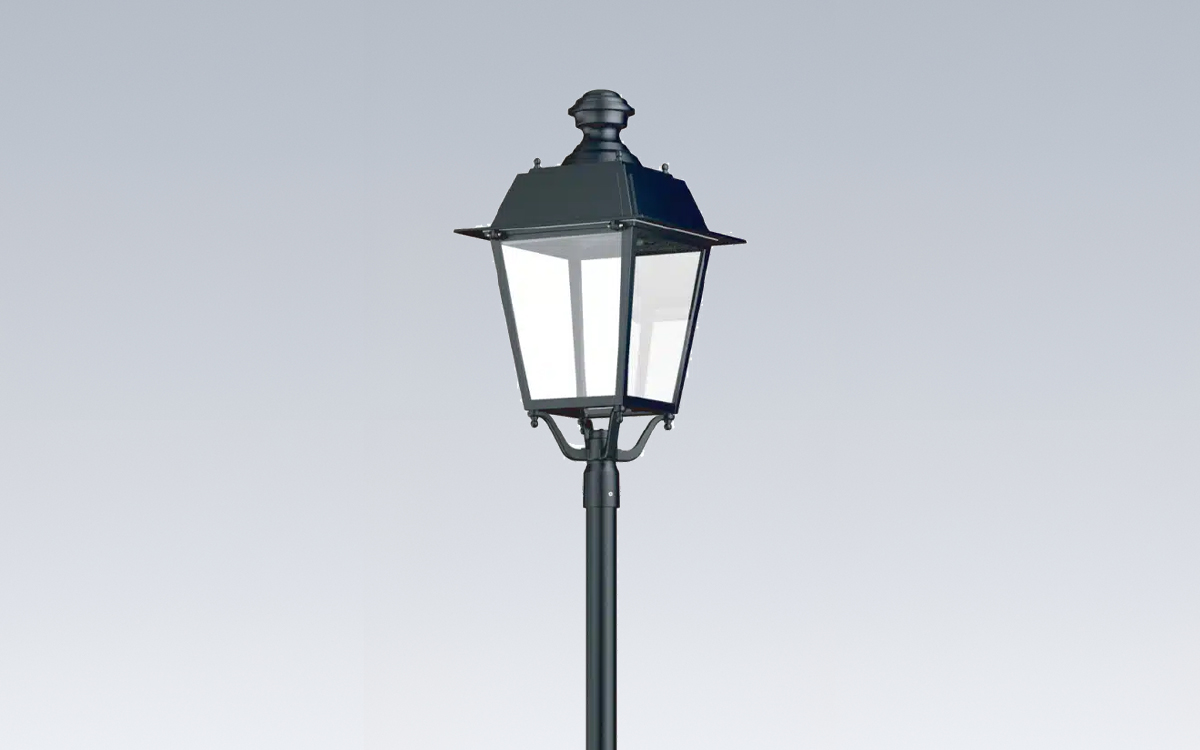

The ZG-1094 series represents a classic line of post top LED luminaires, ideally suited for illuminating courtyards, parks, parking lots, sidewalks, and other public outdoor spaces. Combining robust construction with versatile lighting options, these fixtures deliver uniform, high-quality light that enhances visibility and safety in a variety of outdoor environments. The luminaire features a die-cast aluminum housing paired with a die-cast aluminum heat sink, ensuring efficient heat dissipation and long-term performance. A tempered glass diffuser provides high light transmittance while meeting IK impact resistance standards, making the fixture durable in demanding public settings.
This series offers a wide range of wattages—40W, 60W, 80W, and 100W—allowing users to select the appropriate power level for different roadway and area conditions. Its optical system supports both symmetrical and asymmetrical light distributions, enabling even illumination across roads, pathways, and open spaces. The ZG-1094 is engineered with high luminaire efficacy, reaching up to 150 lumens per watt, ensuring bright, consistent light output while maintaining energy-conscious performance.
The fixture is designed with serviceability and flexibility in mind. Both the driver and surge protection device (SPD) can be easily removed for maintenance or replacement. Standard 1–10V dimming capabilities allow for precise light control, and optional timer-based dimming enhances energy management. The luminaire also incorporates surge protection with differential mode rated at 6 kV and common mode at 10 kV, with higher surge options available upon request.
Technical specifications highlight the fixture’s adaptability and durability. It supports input voltages ranging from 100–240/277 VAC at 50/60 Hz, with a power factor exceeding 0.95. The ZG-1094 carries IP66 and IK08 ratings, providing protection against dust, water, and mechanical impact. Beam angles are available in Type I, II, III, V, or customizable configurations to suit diverse lighting requirements. Mounting is configured for post top applications, and the luminaire comes with a five-year warranty. Certifications include CE, RoHS, IP66, IK10, LM80, TM-21, and IEC62471, affirming its compliance with international standards for safety, performance, and longevity.
