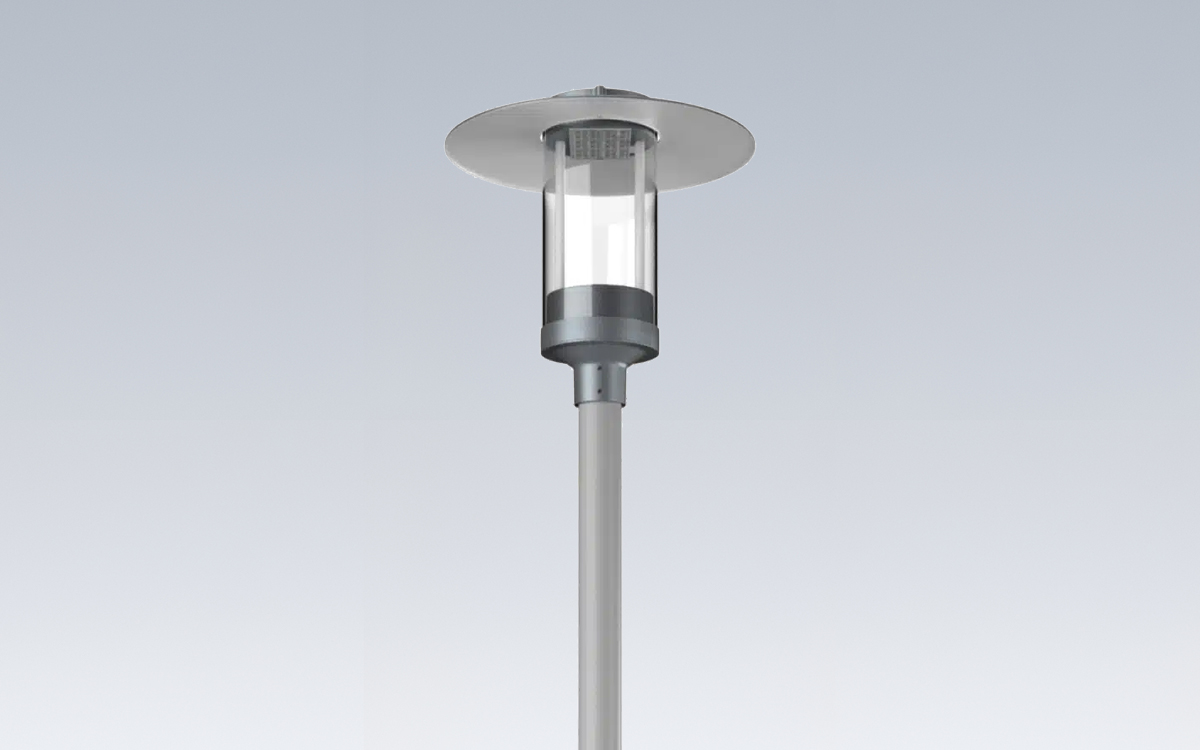

The ZG-1022 post top light offers an affordable yet high-quality solution for municipal or private outdoor lighting needs. It is suitable for a wide range of applications, including parking lot lighting, security lighting, and general area lighting. The fixture combines reliable LED technology with flexible installation and control options, making it a practical choice for both current use and future upgrades.
This LED post top luminaire supports multiple dimming and control methods, including 1–10V dimming, timer-based dimming, photocells, and intelligent control systems. Additionally, it can be equipped with NEMA or Zhaga interfaces, allowing seamless integration with future lighting upgrades or smart lighting networks. The combination of flexible dimming and intelligent controls helps optimize light output while reducing operational costs.
Constructed with a full die-cast aluminum housing (ADC12), the ZG-1022 post top light provides durability and effective heat dissipation, ensuring long-term reliability. Both Class I and Class II electrical configurations are available, accommodating diverse installation requirements. The fixture carries IP66 and IK08 ratings, offering protection against dust, water, and mechanical impact. Its optical system allows for a variety of symmetrical and asymmetrical beam distributions, ensuring uniform and targeted light coverage across streets, parking areas, and other outdoor spaces.
The ZG-1022 delivers high luminous efficacy ranging from 135 to 150 lumens per watt, producing bright and consistent light suitable for outdoor applications. Power options include 40W and 60W, while the input voltage ranges from 100–240/277 VAC at 50/60 Hz, with a power factor greater than 0.95. Surge protection is standard at 6 kV differential mode and 10 kV common mode, with higher surge protection available upon request. Maintenance is simplified with easily removable drivers and surge protection devices (SPD), reducing downtime and ensuring long-term performance.
Additional technical specifications include beam angle options such as Type I, II, III, V, or customized distributions, and the post top mounting configuration is compatible with standard outdoor installations. The fixture comes with a five-year warranty and meets multiple international certifications, including CE, RoHS, IP66, IK10, LM80, TM-21, and IEC62471, ensuring compliance with global safety and performance standards.
