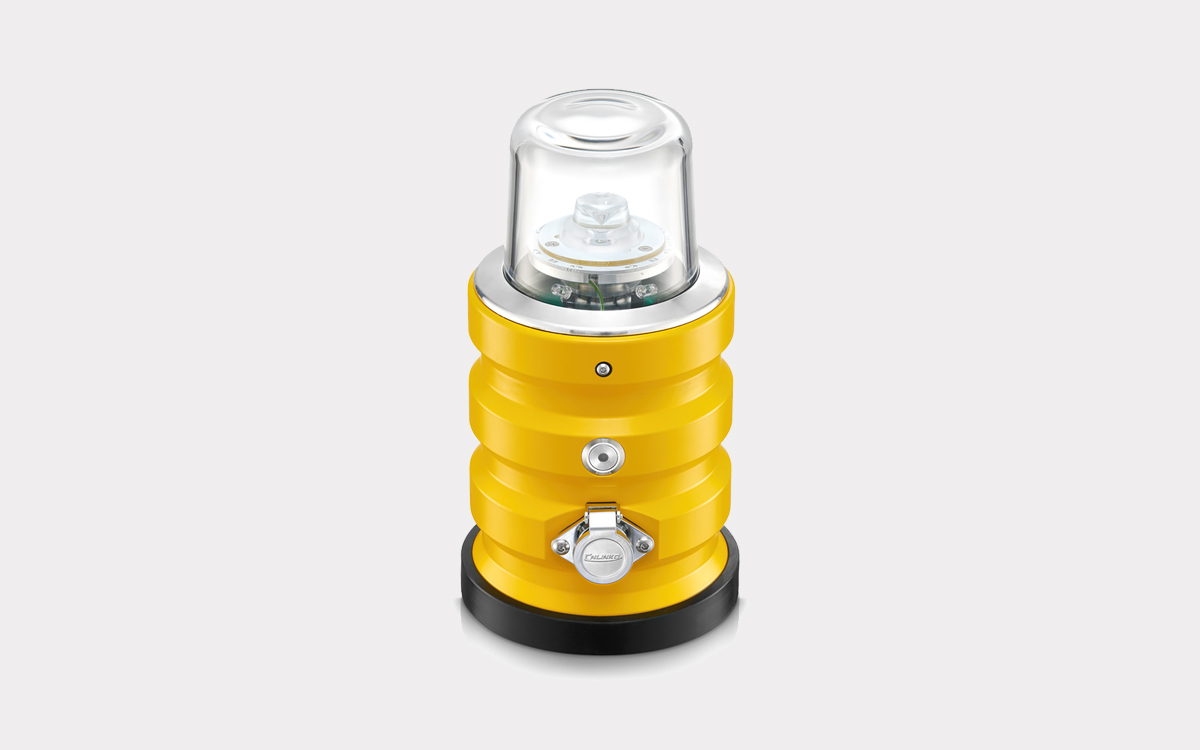

The SP-102 Portable Runway Edge Light is an advanced and reliable lighting solution designed for flexible deployment at remote or temporary airfields. Fully compliant with ICAO Annex 14 photometric and chromaticity standards, as well as FAA Advisory Circular 150/5345-50B, the SP-102 provides safe and effective visual guidance for aircraft operations on general aviation airports, grass strips, temporary runways, and local aerodromes. This compact, lightweight unit uses precision-engineered LED optics to deliver omnidirectional white light with consistent intensity and chromaticity throughout its lifespan—rated at a minimum of 100,000 hours.
Built to support both standard visual operations and night vision goggle (NVG) assisted approaches, the SP-102 offers a range of operating modes and adjustable intensity levels. It features steady-on lighting with selectable low, medium, and high intensity, as well as flashing modes at 30, 60, or 120 flashes per minute. The built-in Automatic Light Control (ALC) system ensures continued performance by automatically adjusting intensity when battery capacity runs low. For added versatility, the light can operate in visible LED mode, NVG-only mode for covert missions, or a combined NVG and visible configuration.
Durability and weather resistance are central to the SP-102’s design. Encased in a rugged, non-corrosive aluminum chassis with an IP65 waterproof rating, the unit is capable of withstanding harsh outdoor conditions. Its optical dome, available in standard glass or UV-resistant polycarbonate, shields the internal components from damage. With a compact form factor (210 mm height x 125 mm diameter) and a lightweight construction of just 2 kg, the SP-102 is easy to transport and deploy across a range of environments.
The SP-102 is powered by a 6V sealed lead acid battery (SLAB), approved for air transport and designed to deliver 4.5 Ah capacity. This robust battery supports up to 25 hours of operation at minimum intensity and 10 hours at maximum output. The user-replaceable battery includes an onboard indicator and can be conveniently recharged either through an external OCT-102 charger or via an optional 5W solar panel kit. Charging time is approximately 8 hours with the charger or 12 hours with solar. The solar panel, mounted separately and directionally optimized for maximum energy harvesting, boasts a 15-year lifespan.
Control and monitoring are simplified through a multifunctional push-button interface that handles power, mode selection, and accidental activation prevention. The integrated microprocessor not only oversees operational settings but also provides safety features such as protection from battery overcharging and deep discharging. This intelligent control system ensures long-term functionality and battery life, even in demanding field conditions.
The SP-102 is engineered to operate within a broad temperature range. The standard version functions from -20°C to 50°C (-4°F to 122°F), while the optional Arctic Pack allows operation in extreme environments, from -40°C to 80°C (-40°F to 176°F). These capabilities make the light suitable for year-round use in both temperate and polar climates.
Meeting stringent international standards is critical for aviation safety, and the SP-102 is no exception. In addition to ICAO and FAA compliance, the system conforms to several European Union electrical and electromagnetic compatibility standards, including EN 61000-4-2:2009, EN 61000-4-3:2007/A2:2011, PN-EN 61000-4-4:2013-05, EN 61000-4-5:2014-10, and EN 61000-4-6:2014-04. This makes it a highly reliable choice for airport operators seeking to meet global regulatory requirements while maintaining operational flexibility.
Portable runway edge lights like the SP-102 serve a critical role in aviation infrastructure, particularly in areas where fixed lighting systems are not feasible or where temporary lighting is needed due to system failures, construction, or special operations. They are essential for both civilian and military use cases, especially when operations require compatibility with night vision equipment or rapid light deployment.
In summary, the SP-102 Portable Runway Edge Light combines rugged construction, intelligent power management, regulatory compliance, and versatile operation to deliver a dependable lighting solution for challenging airfield conditions. Whether used for temporary runway illumination, emergency lighting, or NVG-compatible missions, it stands out as a field-proven tool for safe and effective aircraft guidance.
