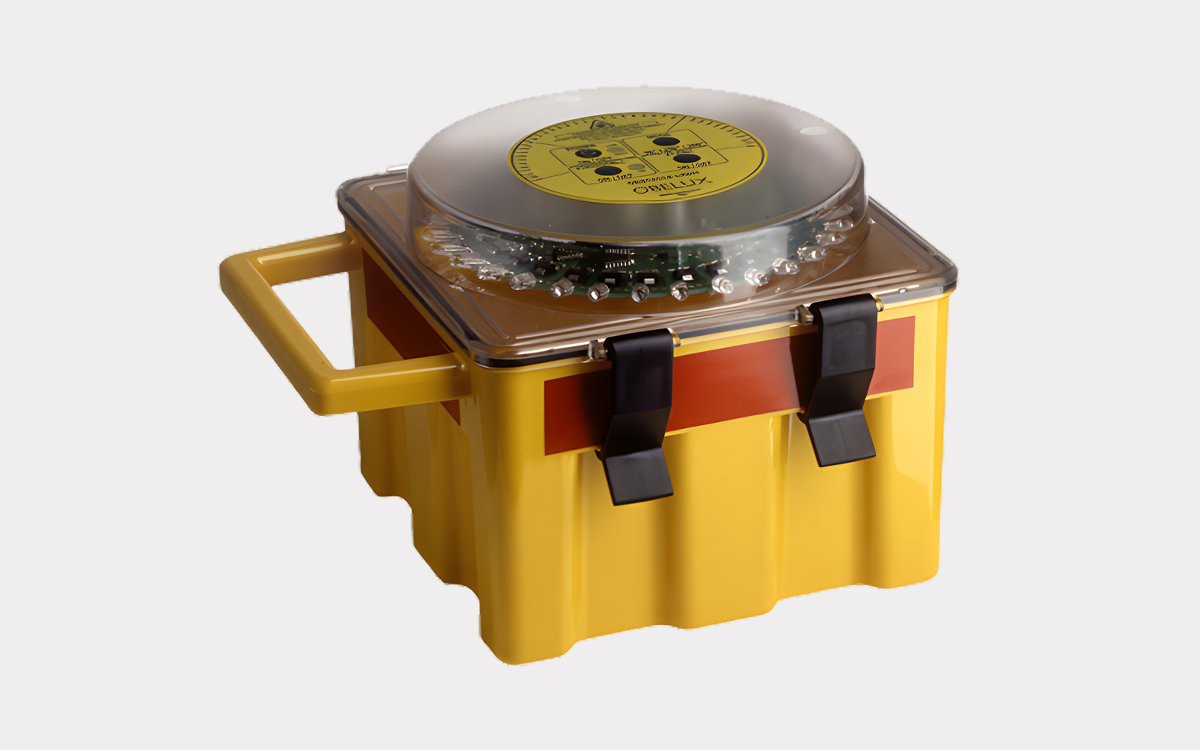

The Obelux Low-Intensity Portable (LI-P) obstruction light is a compact, battery-operated LED beacon designed for reliable temporary marking of obstacles in outdoor environments. Engineered for rapid deployment in aviation, construction, and industrial applications, the LI-P light provides a versatile and maintenance-minimal solution for structures such as temporary masts, cranes, airfield perimeters, or mobile equipment. Built with a rugged yellow enclosure made of shockproof and corrosion-resistant polycarbonate, and a transparent polycarbonate cover, the unit is designed to withstand harsh environmental conditions while maintaining full operational integrity.
This low-intensity light operates using air-alkaline, non-rechargeable batteries that offer an impressive runtime of up to 4–5 months under typical operating conditions (32cd red flash, 20 FPM, photocell activated). Battery configuration can be scaled up to four batteries, delivering a total capacity of 100 Ah at 12 VDC. The unit’s nominal voltage is 12 VDC with an operating range from 10 to 16 VDC. Depending on beam coverage mode—160°, 280°, or 360°—continuous operating times range from approximately 1500 hours down to 375 hours, enabling adaptable power management based on visibility requirements.
Optically, the LI-P light supports both fixed and flashing modes, adjustable by the user, with output options of 10 candela or 32 candela in aviation red. Additionally, NVG-compliant infrared output at 850nm is available, supporting both civilian and tactical night operations. The vertical beam exceeds 10° and the horizontal beam can be configured at 160°, 280°, or 360°, depending on the application. A high-accuracy photocell enables automatic day/night switching, with user-selectable thresholds of 800 lux, 1600 lux, or a constant-on mode, enhancing flexibility across varied lighting environments.
The LI-P is fully compliant with international aviation standards, including ICAO Annex 14 Volume 1, 8th Edition, for low-intensity light Types A, B, and E, and meets FAA distribution requirements for L-810 and L-810F classifications. Optional GPS synchronization is available for coordinated flash timing across multiple units in larger temporary installations. Designed around LED technology, the light features very low power consumption, stabilized light output, microprocessor-based control, and extremely long maintenance intervals—requiring only basic cleaning and occasional battery replacement.
Highly portable, lightweight, and user-friendly, the LI-P light can also be equipped with external power supply and chaining connectors for scalable operation. Its compact design (67 x 67 x 98/108 mm) and environmentally friendly battery system—free of toxic materials—make it not only easy to handle and transport but also safe for use in sensitive areas. Backed by a 5-year warranty, the Obelux LI-P light offers dependable, low-maintenance, and regulation-compliant obstruction marking in even the most demanding temporary field conditions.
