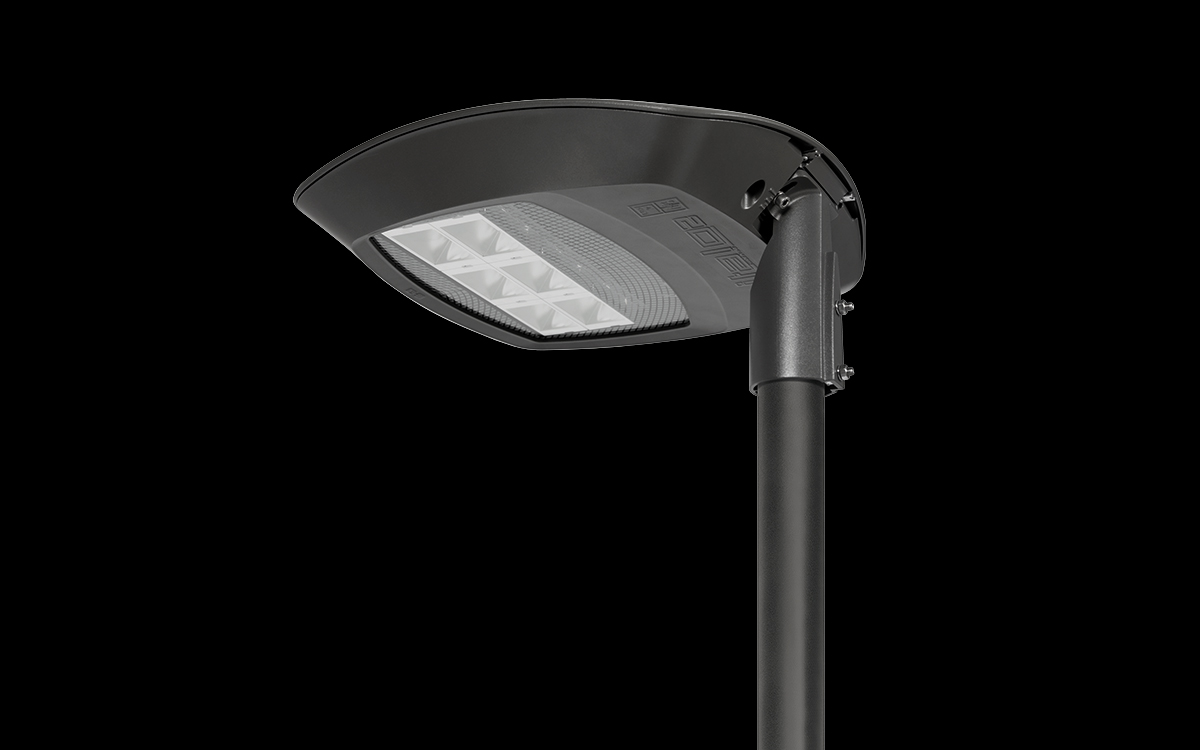

The ITALO 2 URBAN pole-top LED street light combines refined aesthetics with advanced lighting performance, making it an ideal solution for contemporary urban environments. Its sleek, architecturally balanced design complements a variety of settings—from residential streets and city avenues to public squares, green spaces, and pedestrian areas—where both form and function are essential. Built to ensure optimal visibility and visual comfort, ITALO 2 URBAN supports the creation of safe, welcoming public spaces while enhancing the aesthetic value of the urban landscape.
This luminaire represents a forward-thinking approach to urban lighting, providing consistent light quality, longevity, and adaptability across different applications. It is particularly suited for parks, city centers, cycle paths, and pedestrian walkways where safety and comfort are priorities. The LED source operates with a high luminous efficiency of 168 lm/W (at 525 mA, Tj = 85°C, 4000K), ensuring powerful performance while minimizing power consumption. The fixture maintains a total luminous output ratio (LOR) of 100%, ensuring that every lumen contributes directly to lighting the target area without upward light dispersion, preserving dark skies and minimizing light pollution.
ITALO 2 URBAN offers multiple optical configurations to adapt to diverse street and urban conditions. Asymmetrical optics such as STE-M/S, STU-M/S, STW, SV/SV2, and S05 meet various roadway and urban lighting requirements—from wide suburban roads and wet asphalts to narrow streets and green spaces—while symmetrical options (S) and crosswalk-specific optics (OP-DX/SX) extend versatility to pedestrian zones. Each optic is crafted from 99.85% aluminum with a vacuum-sealed 99.95% reflective finish, ensuring exceptional light control, precision, and durability.
Constructed with robust materials, the luminaire demonstrates reliability even in challenging outdoor conditions. The fixing system, heat sink, lower frame, and upper canopy are made of die-cast aluminum UNI EN 1706 with a durable powder-coated finish for corrosion resistance and long-term structural integrity. An extruded aluminum closure hook with a stainless steel spring ensures secure assembly, while the flat tempered glass screen (4mm thick) offers high transparency and protection against impact. The fixture also includes a polyurethane gasket for superior sealing and environmental protection, ensuring an IP66 ingress rating and IK09 impact resistance.
Installation flexibility is a key feature of ITALO 2 URBAN. It supports both bracket and post-top mounting configurations, accommodating diameters from Ø33mm to Ø76mm. Adjustable tilt angles provide precise light direction, with post-top installations adjustable from 0° to +20° and bracket setups adjustable from 0° to -20°. The luminaire’s modular design allows easy maintenance with removable LED modules and a detachable gear tray, simplifying on-site servicing and reducing downtime.
With an operating temperature range from -40°C to +50°C, the fixture performs reliably in diverse climates. Electrical characteristics include a rated voltage of 220–240V (50/60Hz) with a power factor greater than 0.9 at full load, and a built-in on-load switch with an integrated cable clamp. Surge protection up to 10kV is standard, with an optional SPD (10kV–10kA, type 2+3) providing enhanced defense against overvoltage events. The optional SPD unit includes a thermal fuse and LED indicator to signal end-of-life disconnection for added safety.
The ITALO 2 URBAN street light also supports a comprehensive range of intelligent control options. It can operate with fixed power or integrate automatic dimming functions based on virtual midnight profiles (DA and DAC) or constant light flux (FLC) regulation. For networked lighting systems, it accommodates DALI digital dimming, wireless single-point communication (WL), and compatibility with smart city standards such as NEMA 7-pin sockets (ANSI C136.41) and ZHAGA Book 18 4-pin sockets. These options enable ITALO 2 URBAN to serve as a foundation for smart lighting networks, facilitating adaptive control, remote monitoring, and energy management in urban infrastructures.
Overall, the ITALO 2 URBAN pole-top LED street light stands out as a reliable, flexible, and visually refined solution for public lighting. Combining precision optics, durable construction, and intelligent control compatibility, it enhances both the functionality and aesthetic quality of modern urban environments, contributing to safer, more sustainable, and visually cohesive cityscapes.
