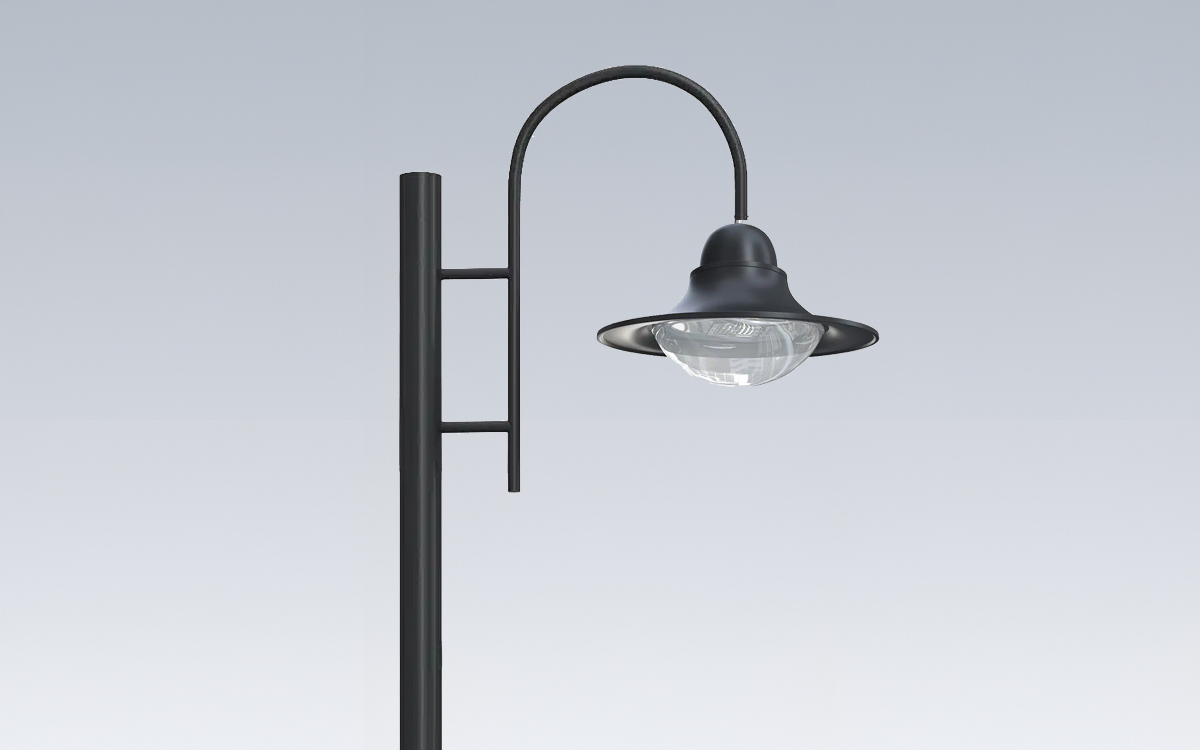

The ZG-1058 pendant street light is a versatile outdoor lighting solution, offering multiple lens options suitable for replacing traditional MH, HPS, or HID lighting systems. It is ideal for a range of applications including urban roads, parking lots, sidewalks, and pedestrian public spaces, providing consistent and uniform lighting across different environments. The luminaire is suitable for installation heights ranging from 3 to 8 meters, allowing flexibility based on specific light level and uniformity requirements.
Constructed with a full die-cast aluminum housing (ADC12), the ZG-1058 ensures durability and reliable protection against harsh outdoor conditions. The integrated stretched aluminum heat sink enhances thermal management, effectively dissipating heat to extend the service life of the lamp. The fixture carries IP66 and IK08 ratings, providing protection against dust, water, and mechanical impact, while both Class I and Class II electrical configurations are available to meet various installation needs.
The ZG-1058 achieves high luminaire efficacy up to 130 lumens per watt, combining high-quality LEDs with dependable power supplies for bright, consistent lighting. It supports multiple beam angle options, primarily Type II Medium, and a variety of symmetrical and asymmetrical distributions to optimize coverage for streets, parking areas, and pedestrian spaces. Standard dimming options include 1–10V and timer-based dimming, allowing for precise light control, while surge protection is rated at 6 kV differential mode and 10 kV common mode, with higher surge options available upon request.
Maintenance and serviceability are simplified with easily removable drivers and surge protection devices (SPD), reducing downtime and facilitating long-term operation. Technical specifications include an input voltage range of 100–240/277 VAC at 50/60 Hz, a power factor exceeding 0.95, and power options of 30W, 40W, 50W, and 60W to accommodate different site requirements. The ZG-1058 pendant street light comes with a five-year warranty and meets a comprehensive set of certifications, including CE, RoHS, IP66, IK10, LM80, TM-21, and IEC62471, ensuring compliance with international standards for safety, performance, and durability.
