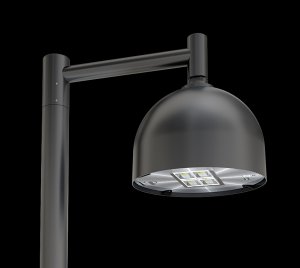

The GOBLET pendant LED street light merges elegant design and superior performance to create a timeless luminaire suited for both historic and modern urban spaces. Its softly tapered form evokes the charm of traditional street lighting while incorporating advanced LED technology for outstanding optical performance and visual comfort. GOBLET’s high color rendering ensures natural and accurate color perception, making it ideal for environments where visual quality and ambiance are equally important, such as residential neighborhoods, public parks, city squares, and historic centers.
Balancing heritage aesthetics with cutting-edge performance, GOBLET revitalizes classic urban lighting forms with renewed technology that meets contemporary energy and safety standards. Its familiar silhouette preserves the visual identity of traditional architecture while delivering the benefits of modern LED systems. This harmony between form and function enhances public spaces with elegant contours and efficient, uniform light distribution that contributes to both safety and atmosphere.
GOBLET provides multiple optical configurations to suit a wide range of outdoor lighting requirements. The STE-M/S optic delivers asymmetrical light for suburban streets; the STU-M/S optic serves streets, urban paths, and cycleways; the STW version ensures optimal lighting for wide urban or suburban roads, particularly effective on wet asphalt surfaces; and the S05 optic is tailored for streets, urban, and landscaped areas. The fixture supports color temperatures of 4000K as standard, with 3000K available upon request, and achieves a color rendering index (CRI) of 70 or higher. The LED source reaches an efficiency of 168 lm/W at 525 mA (Tj=85°C), ensuring strong luminous performance and long-term reliability.
Engineered for durability, GOBLET offers a protection rating of IP66 and an impact resistance of IK08, making it resilient against weather and environmental stress. The luminaire’s construction includes a powder-painted aluminum body, a die-cast aluminum lower frame, and an extruded aluminum heatsink that ensures efficient thermal management. The flat, high-transparency tempered glass screen enhances light transmission while maintaining robustness, and the EPDM gasket ensures a secure seal against dust and moisture. All components—including removable and replaceable LED modules and gear trays—are designed for ease of maintenance and longevity.
GOBLET operates within a temperature range of -40°C to +35°C and supports a rated voltage of 220–240V (50/60Hz) with a power factor greater than 0.9 at full load. Surge protection up to 10kV is integrated, with an optional SPD unit (10kV–10kA, type 2+3) that includes LED status indication and a thermal fuse for end-of-life disconnection. The luminaire also includes an on-load switch with an integrated cable clamp and a standard 3-meter mains cable (H07RN-F nx1.5mm²), with an optional IP66/IP68 connector for cables up to 2.5mm² in diameter.
Multiple control configurations are available to meet diverse lighting management needs: fixed output (F), automatic dimming via virtual midnight (DA), custom dimming profiles (DAC), constant light flux operation (FLC), and DALI digital interface control. These options enable flexible energy management and optimized nighttime operation across varying environments.
The fixture measures Ø627x510mm with a maximum weight of 11.5 kg and can be mounted on compatible brackets (MA, MK/S, MP, MG) with a fixed 0° tilt angle. Its exposed surface area is 0.15m² on the side and 0.31m² on the top, ensuring stable installation even under challenging conditions. Finished in graphite (code 01), GOBLET embodies a refined aesthetic that complements urban architecture while meeting the technical demands of modern street and area lighting.
