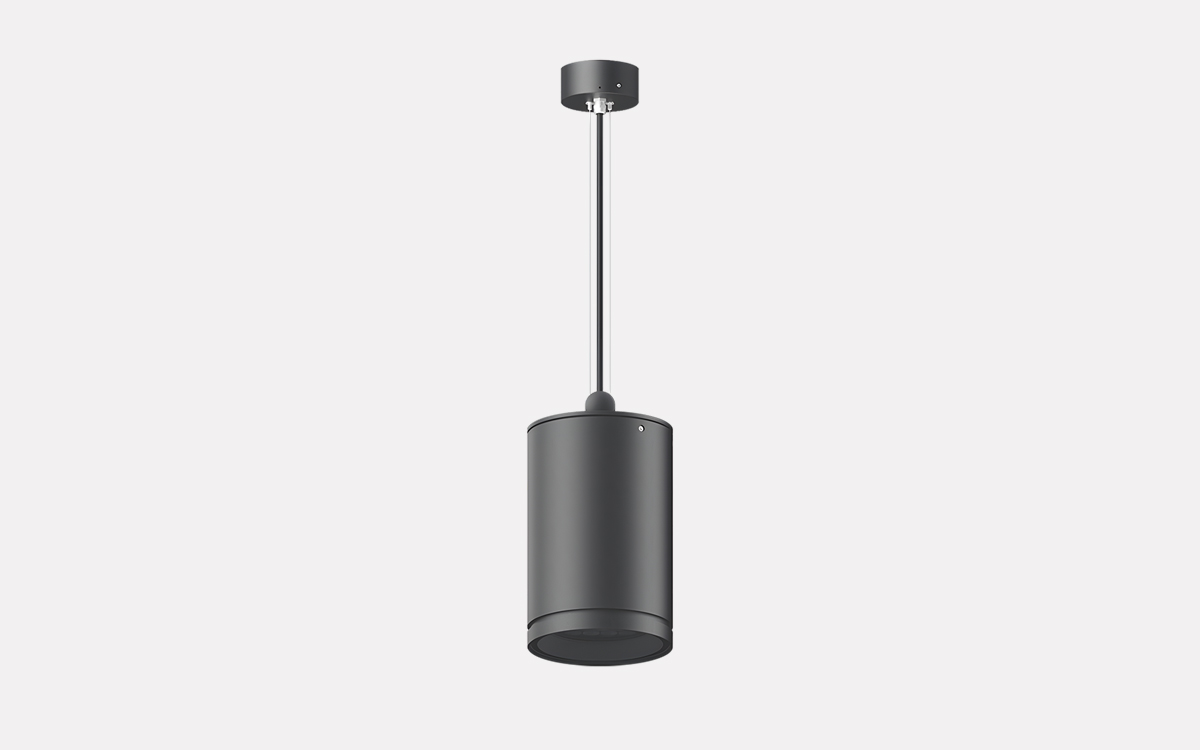

The DAS140-PM TW LED is a high-performance, tunable white pendant luminaire designed for both indoor and outdoor architectural applications. Engineered for durability and precision, it features an IP66-rated enclosure and IK07 impact protection, ensuring reliable operation even in challenging environments. The luminaire’s body is constructed from marine-grade, all-aluminium material and protected with 5CE superior corrosion-resistant coatings, including PCS polymer-coated stainless steel hardware for maximum longevity.
A silicone CCG® Controlled Compression Gasket and factory-sealed design ensure the DAS140-PM TW LED remains impermeable to dust and water throughout its lifecycle. It is equipped with a safety glass lens and CAD-optimized optics that deliver superior glare control and uniform illumination. The integrated EC electronic converter is housed in a thermally separated compartment, and the LED circuit board is factory-installed, eliminating the need for internal access during installation.
The luminaire incorporates advanced Tunable White Technology, allowing adjustable color temperatures to suit various ambient settings. It supports DALI control, offering flexibility in lighting management systems. The fixture is ceiling-mounted through a canopy with a drop guard supported by a wire rope. Standard cable suspension is 0.5 meters, with longer options available upon request at the time of ordering.
Available light distributions include symmetric wide beam [B], medium beam [M], and narrow beam [E], enabling tailored illumination solutions for diverse architectural environments. The DAS140-PM TW LED is finished in a range of RAL colors, including Signal Black (RAL9004), White Aluminium (RAL9006), Grey Aluminium (RAL9007), Anthracite Grey (RAL7016), and Traffic White (RAL9016), allowing seamless integration into any design scheme.
