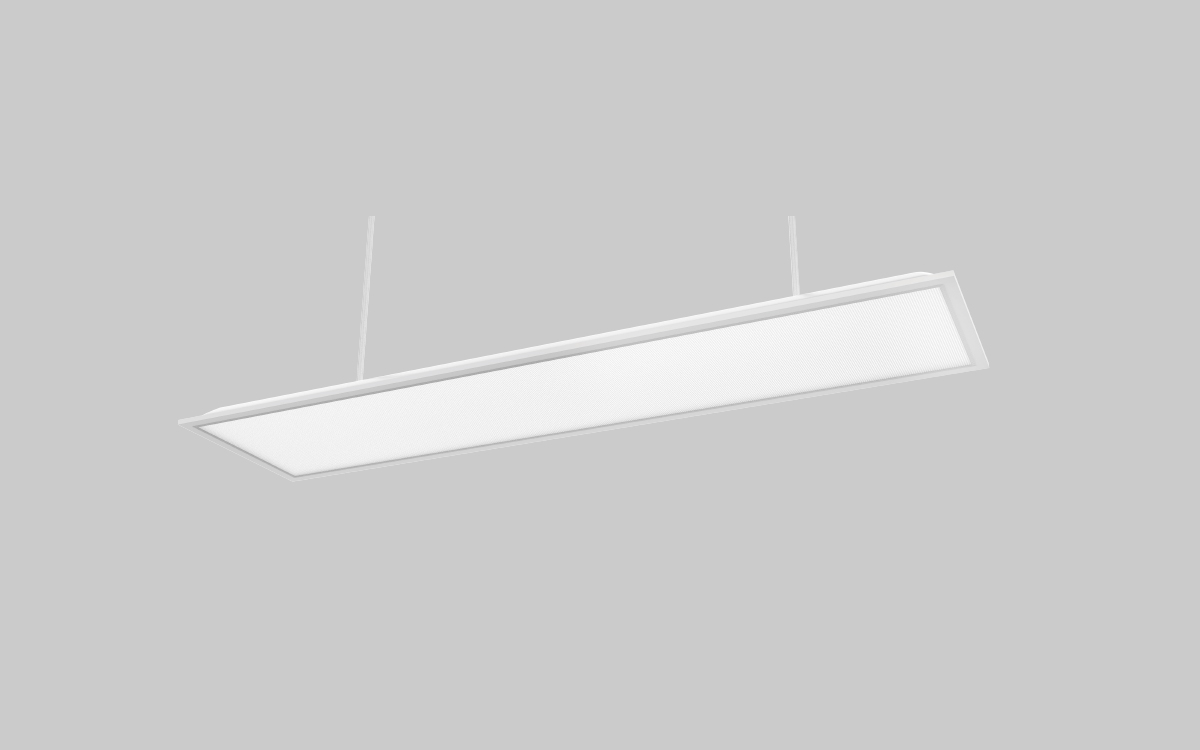

The EXC-JJ06B is a cost-effective prismatic anti-glare classroom light designed as a straight-down type fixture. Its body features a one-piece metal aluminum frame, significantly enhancing the product's strength and impact resistance. The back plate is also made of metal, ensuring safety and environmental friendliness. This light employs a three-layer optical design that delivers high luminous efficacy with more uniform light distribution and low glare, creating a comfortable lighting environment for educational settings.
Equipped with high-index, high-efficiency 2835 LED lamp beads, the EXC-JJ06B offers low light decay and is rated with a blue light hazard of RG0, ensuring eye safety for prolonged exposure. The fixture uses an isolated high power factor (PF) driver with low total harmonic distortion (THD), providing flicker-free operation with light output waveform fluctuation depth of less than 1%. This combination ensures high efficiency and stable illumination, meeting the demanding standards for classroom lighting.
The fixture operates on a voltage range of AC220-240V with a power consumption of 36W and a power factor of at least 0.90. It features a high color rendering index (CRI) above 95, including an R9 value greater than 90, with full-spectrum LED light. The luminous flux ranges from 3000 to 3600 lumens, and its luminous efficacy exceeds 85 lumens per watt. The light color is available in 5000K or 3700K with a color tolerance of 5 SDCM or less. The anti-glare prismatic design effectively reduces discomfort, and the UGR value is under 16, providing a visual environment conducive to learning. Blackboard surface uniformity is maintained above 0.80 to support clear visibility in classrooms.
Installation is done via pendant mounting, and the fixture has an IP40 rating for protection against dust. The materials used include an aluminum profile with a plastic end cap, contributing to durability and a clean aesthetic. The overall dimensions of the EXC-JJ06B are 1195mm in length, 295mm in width, and 70.7mm in depth, making it suitable for standard classroom ceiling installations.
