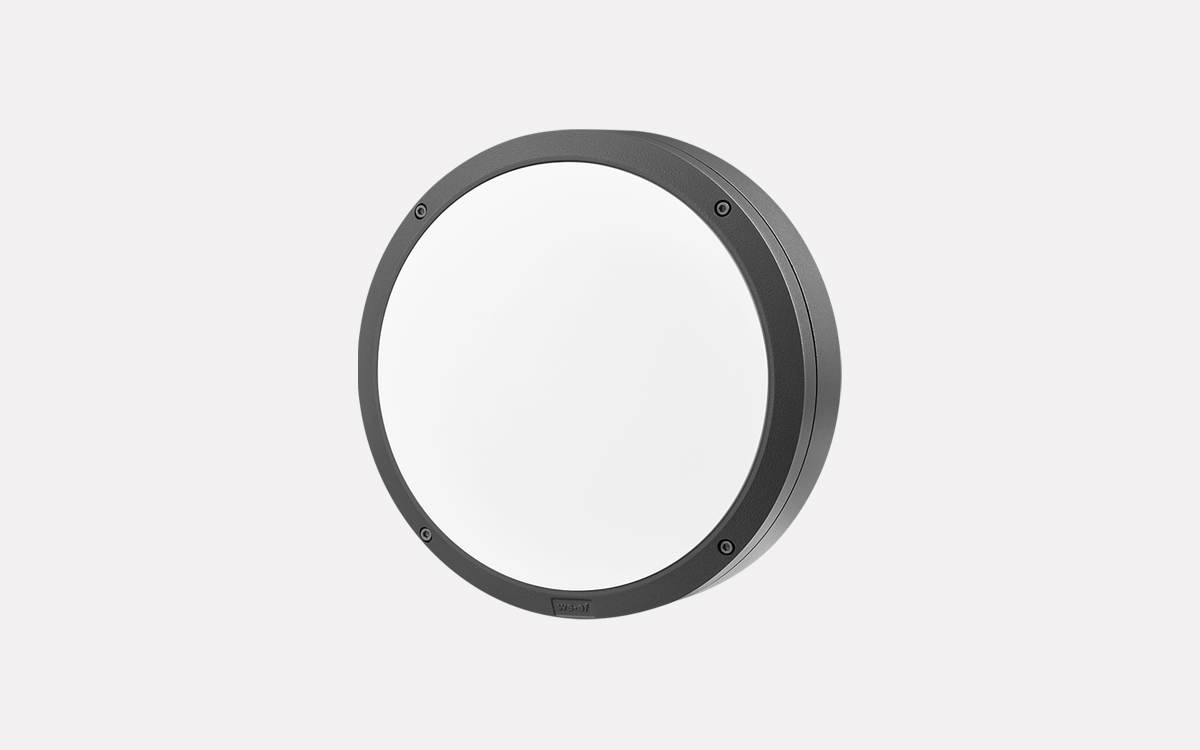

The DLO239 LED luminaire is designed for robust outdoor use, featuring an IP55 ingress protection rating and Class I electrical safety, with Class II available upon request. Its construction utilizes marine-grade die-cast aluminium alloy, ensuring durability and resistance in harsh environments. The luminaire is equipped with 5CE superior corrosion protection, which includes polymer-coated stainless steel (PCS) hardware to further enhance longevity and prevent rusting.
A silicone rubber gasket provides effective sealing, protecting internal components from moisture and dust ingress. The luminaire also incorporates a polycarbonate main lens known for its toughness and impact resistance, rated at IK10, making the fixture highly resilient against physical impacts. Two cable entries facilitate flexible and secure wiring options during installation.
Internally, the DLO239 includes a factory-installed LED circuit board paired with an integral EC electronic converter housed within a thermally isolated compartment to maintain optimal operating temperature and performance. The power supply operates on 220-240V at 50-60 Hz, and the unit offers surge protection rated at 1/2 kV, safeguarding against voltage spikes.
The luminaire is available in a variety of finishes to suit different architectural aesthetics, including RAL9004 Signal Black, RAL9006 White Aluminium, RAL9007 Grey Aluminium, RAL7016 Anthracite Grey, and RAL9016 Traffic White. This combination of rugged materials, reliable electronics, and versatile design makes the DLO239 LED an ideal choice for demanding outdoor lighting applications, particularly in marine or industrial settings.
