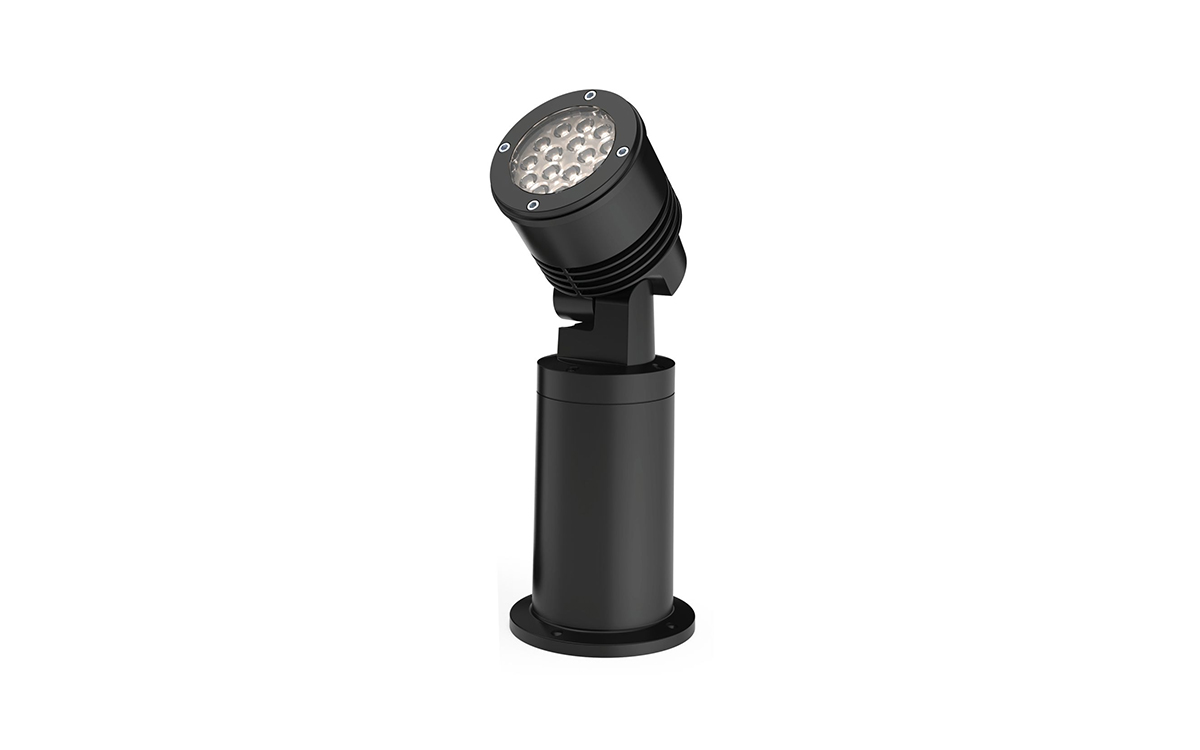

The LS2022 is a surface-mounted spotlight that stands out as the most compact and versatile luminaire in its class, equipped with a remote driver. Despite its small size, it delivers a light output and energy efficiency that surpasses that of a 35-watt metal halide fixture. Designed for both performance and aesthetics, it incorporates advanced features such as EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. The luminaire's elevated height ensures the light head rises above surrounding vegetation, allowing for a clear and unobstructed cast of light. It is available with integrated 0–10 V dimming or in a non-dimmable configuration to suit different control requirements.
Constructed from die-cast marine-grade aluminum and protected by a tempered glass lens, the LS2022 is built to endure harsh environmental conditions. Its finish undergoes a superior 9-step powder coating process, featuring a marine-grade epoxy undercoat and a durable polyester topcoat, ensuring longevity and corrosion resistance. The fixture is surface-mounted and includes a constant torque adjustable head, allowing precise light aiming.
The LS2022 is rated for operation in dry, damp, and wet locations and is engineered to perform in ambient temperatures ranging from -40 °F to 122 °F (-40 °C to 50 °C), with a surface temperature not exceeding 138 °F (59 °C). It carries IP66 and IP67 ratings and passes the IP68 test, signifying excellent ingress protection, along with an IK7 impact resistance rating. Weighing just 4.5 lbs (2.0 kg), and with an effective projected area of 1.1 ft² (0.1 m²), this spotlight is a robust and efficient solution for a wide range of architectural and landscape lighting applications.
