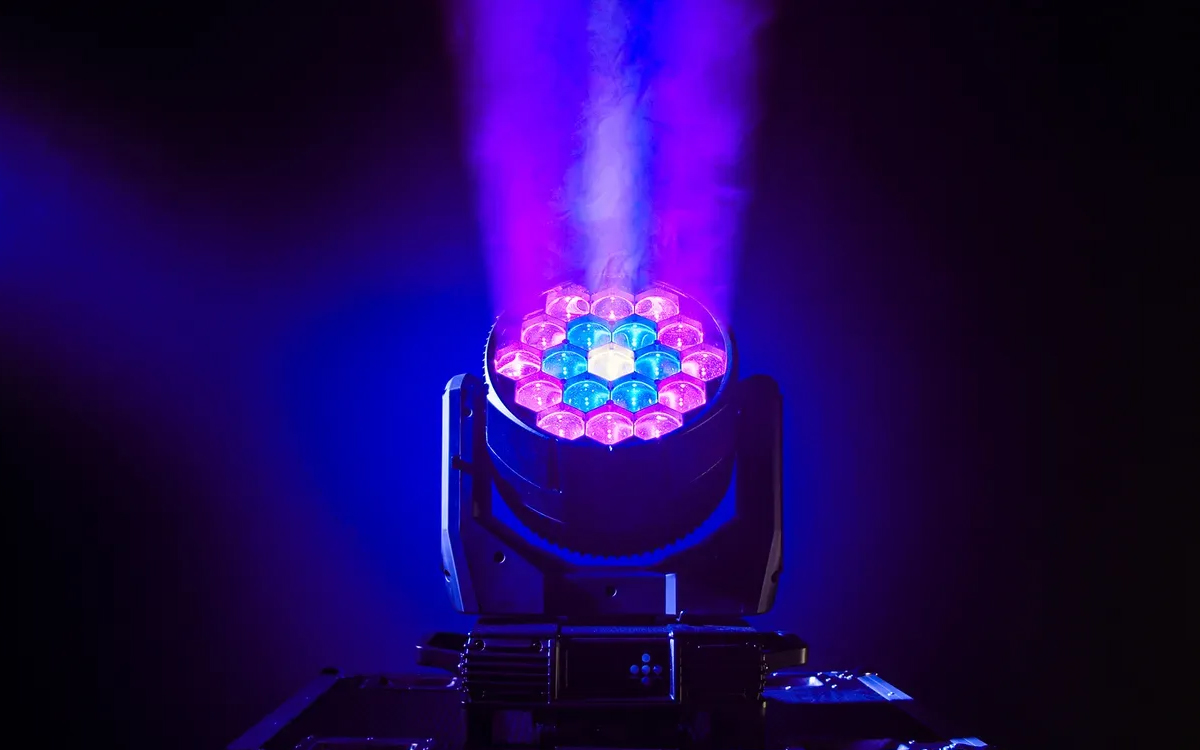

The Typhon IP Wash is a professional-grade outdoor LED moving wash fixture designed to deliver ultra-bright, vibrant colors in a wide range of outdoor environments. Engineered to meet IP66 standards, this fixture is fully weather-resistant, with an airtight design that ensures reliable performance in extreme temperatures, high-altitude conditions, and harsh desert or coastal climates. At the heart of the Typhon IP Wash are nineteen 40W high-output OSRAM 4-in-1 RGBW LEDs, which provide a rich, full-color spectrum and allow precise color mixing, from saturated hues to smooth pastel tones. The fixture features a motorized zoom system, capable of adjusting from a tight 6° beam for focused accents to a broad 55° field angle for wide-area washes, making it ideal for architectural lighting, stage productions, and large-scale outdoor events.
The Typhon IP Wash excels in motion versatility, with a pan range of 360° or 540° and a tilt range of 230°, all controllable with adjustable speed and both 8-bit and fine 16-bit resolution for fluid, precise movement. This allows designers to create intricate lighting effects, sweeping washes, and synchronized motion sequences. Its optical performance is exceptional, achieving luminous intensities of 12,500 lux at 7.5 meters with a 6° beam, 563 lux at the same distance with a 33° field, 7,070 lux at 10 meters with a 6° beam, and 320 lux at 10 meters with a 33° field, ensuring both long-throw reach and wide coverage.
The Typhon IP Wash comes loaded with advanced lighting features and effects to streamline creative control. It offers full-color output alongside a 3-zone LED ring effect, 16 static color presets, 10 chase macros, and 21 built-in CCT presets spanning from a warm 3200K to a cool 7200K with a CRI of ≥70. Dynamic effects include a strobe range of 1–25 Hz with both synchronized and pulse modes, while four user-selectable dimming curves allow precise intensity control. The fixture also includes an internal fan cooling system, secure pan and tilt locks for safe transport, and an integrated dual-clamp mounting assembly for quick and reliable installation. Units purchased in pairs or larger quantities come in a heavy-duty dual-fixture ATA-spec road case at no additional cost, simplifying logistics for touring or rental setups.
Control and connectivity are fully professional, supporting USITT DMX-512 and RDM protocols through 5-pin DMX in/out ports, with flexible channel modes of 23, 15, or 39 channels. The intuitive five-button menu with LCD display allows users to navigate DMX, master/slave, and auto modes with ease, while the fixture’s electronic dimming ranges smoothly from 0% to 100%. Power requirements are 100–240 VAC at 50–60 Hz, drawing a maximum of 965W at 10A with a power factor of 0.96, and it features PowerCON® TRUE1-compatible input for reliable power connections.
With its combination of rugged IP66-rated construction, ultra-bright LED output, versatile pan/tilt and zoom capabilities, and extensive color, effect, and control options, the Typhon IP Wash is a highly adaptable fixture suited for demanding outdoor productions, architectural lighting projects, and professional event applications where high performance, durability, and visual impact are paramount.
