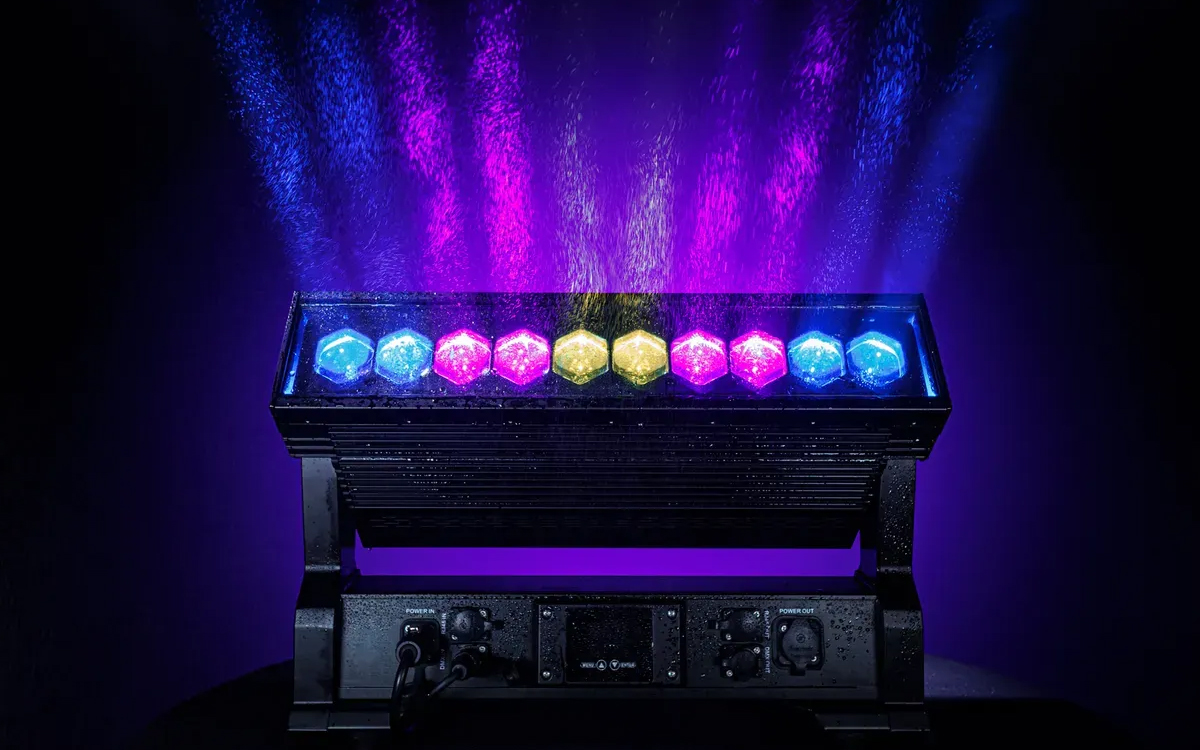

The MystACL Z™ IP is an IP65-rated outdoor zoomable LED moving head batten light equipped with 10 high-output 40W 4-in-1 RGBW LEDs, delivering brilliant and flicker-free lighting suitable for a wide range of professional applications. Its motorized 3° to 60° zoom capability enables smooth transitions from narrow, focused beams to expansive washes, making it ideal for outdoor concerts, stage productions, architectural installations, and large-scale events. Complementing the zoom, the fixture features a precise 240° motorized tilt, allowing fluid movements and captivating visual displays across venues of any size or layout.
This zoomable batten light supports advanced lighting control through dual-group pixel mapping, full pixel mapping, and three-layer sets in 28-channel DMX mode. The three-layer mode allows adjustable pixel layer lengths with overlapping groups of user-selectable background colors or patterns, giving designers unparalleled flexibility in creating dynamic effects. The fixture accommodates both 5-pin DMX and Art-Net protocols and can be easily navigated through an LCD control menu with touch-sensitive buttons. Multiple DMX channel modes, including 13/26/28/46-channel options, are available, alongside DMX512, master/slave, and auto modes, allowing seamless integration into complex lighting setups. Built-in macros, pixel sets, and color presets expand creative possibilities, while smooth electronic dimming and 1–10Hz strobe effects enhance dynamic performance.
Optically, the MystACL Z™ IP utilizes 10 high-output 40W RGBW 4-in-1 LEDs with a 50,000-hour rated lifespan. Its motorized 3°–60° zoom produces narrow beams with 16,345 Lux at 2.5 meters and 7,422 Lux at 5 meters, and wide-angle coverage reaching 1,635 Lux at 2.5 meters and 366 Lux at 5 meters. The fixture’s pixel-mapped effects allow for narrow-beam light curtain designs and overlapping color patterns, giving users the ability to craft intricate visual displays with high precision.
Mechanically, the MystACL Z™ IP is housed in a weatherproof IP65-rated casing suitable for outdoor conditions, featuring dual omega brackets with 1/4-turn fasteners for secure rigging and deployment. It includes a retractable end-to-end fixture alignment system for seamless connectivity between multiple units, ensuring consistent positioning in line arrays. The fixture operates from 100–240VAC at 50–60Hz with a power draw of 304W and a power factor of 0.98, with PowerCON® TRUE1-compatible input and output connections for reliable power distribution. A low-noise, efficient fan cooling system maintains optimal performance even in extended outdoor use.
ETL-listed and backed by Blizzard’s 2-year limited warranty, the MystACL Z™ IP combines robust outdoor performance, advanced control, and precise optical features in a single, versatile RGBW zoomable moving head batten light. It is ideal for designers, programmers, and production teams seeking dynamic, pixel-mapped effects, high-intensity output, and flexible deployment in outdoor or demanding professional environments.
