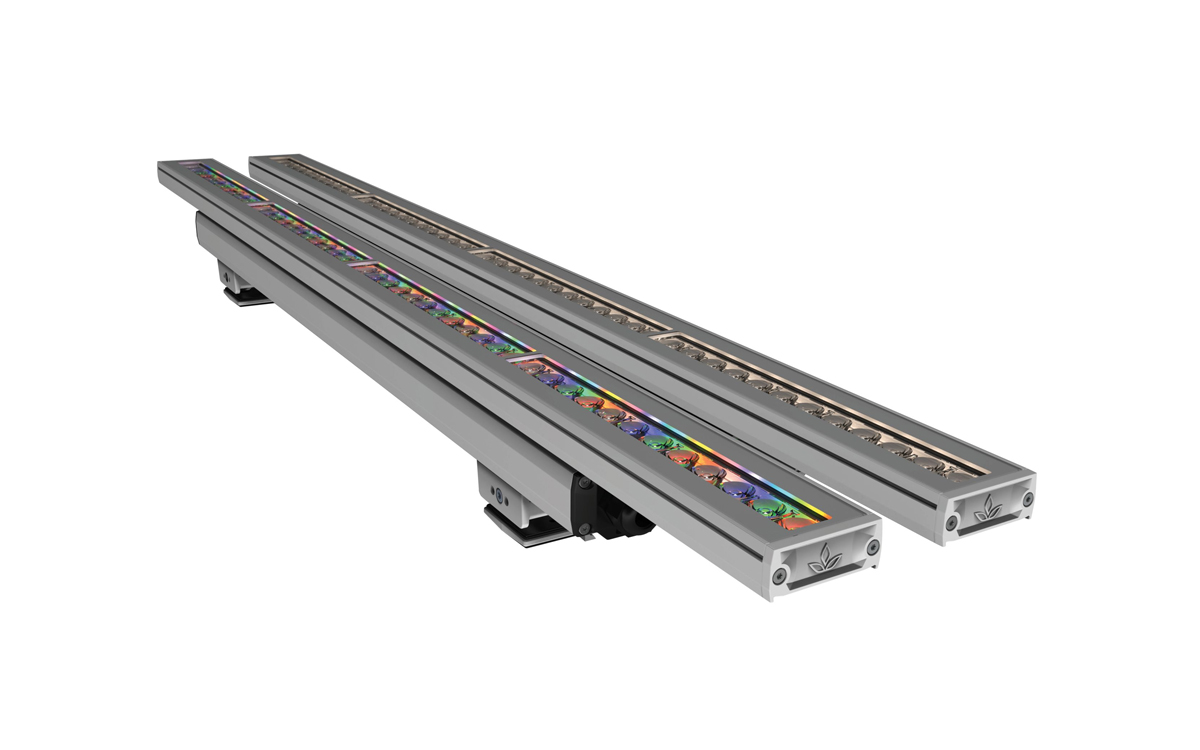

The Linealux L5 is a high-powered, architectural-grade linear luminaire that merges advanced technology with performance in a sleek, stylish form. Engineered for both visual appeal and functionality, it features Lumascape’s proprietary EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync® digital control enables precise, granular adjustments using widely adopted protocols, while innovative optics deliver wide end-to-end spacing without compromising uniformity. The fixture also offers standard designer lens options, ensuring superior color-over-angle consistency and smooth color blending, even at close distances.
Available in static white, color-changing, and tunable white configurations, the Linealux L5 covers a wide range of lighting needs. Static white models are offered in multiple color temperatures, including 2700 K, 3000 K, 3500 K, 4000 K, and 5000 K, with lumen outputs ranging from 7,670 to 8,650 lumens and efficacy up to 93 lm/W. Peak intensity for these versions reaches up to 319,900 cd. Dynamic color options include RGBA with 3,880 lumens and RGBW (4000 K with Royal Blue) delivering up to 4,360 lumens, with peak intensities of 55,800 cd and 69,200 cd, respectively. The tunable white variant spans 2700 K to 6500 K, outputting 8,160 lumens at an efficacy of 87 lm/W and a peak intensity of 301,800 cd.
A wide range of beam angles is available—from narrow 6º and 10º options to broad distributions like 100º and various elliptical and asymmetric patterns—providing flexibility for architectural applications. The fixture consumes either 19 W/ft or 23 W/ft, and boasts a long operating life of over 60,000 hours (B10, L70, TM21 reported). It supports international input voltages (220–240 Vac, 50 Hz) and North American standards (120/277 Vac, 60 Hz), with low earth leakage values across all options. CoolDrive™ technology ensures consistent thermal performance and protection.
Control is managed via Lumascape PowerSync®, with compatibility for DMX/RDM, Artnet, PWM, and 0–10 V dimming (sink or source), with flicker-free dimming down to 0.1% at 1.6 kHz. Control resolution is 1-foot (300 mm) and can be configured via RDM, offering flexible personality profiles to match application needs. The fixture integrates easily with a range of third-party lighting control systems.
Constructed from marine-grade extruded aluminum with a tempered glass lens and stainless steel hardware, the Linealux L5 is built to withstand harsh environments. Its housing is finished with a robust 9-step powder-coating process, including a marine-grade epoxy undercoat. It includes a constant torque adjustable mounting bracket that is lockable and reversible for versatile installation. Designed for surface mounting with a galvanic isolator, it operates in ambient temperatures from -40°F to 122°F (-40°C to 50°C), with a surface temperature not exceeding 122°F (50°C).
The luminaire weighs 15.4 lb (7.0 kg) per 4-foot section and has an effective projected area of 0.9 ft² (0.08 m²). Rated IP66/IP67 and tested to IP68, the fixture offers robust protection against dust and water ingress. It is IK6 impact-rated and vibration-tested to 3G (ANSI C136.31), making it suitable for dry, damp, and wet locations. Certifications include ETL, CE, UKCA, and RCM, confirming its compliance with international safety and performance standards.
