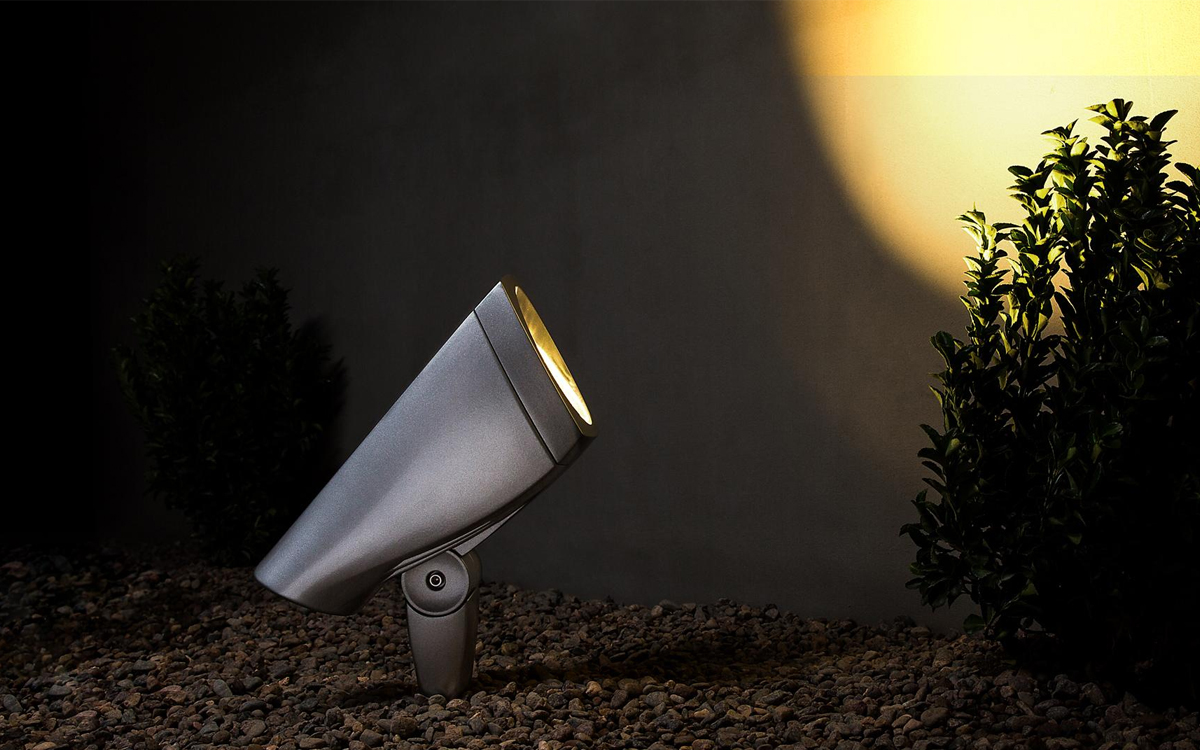

The A-CT5 LED uplight combines coastal-inspired design with cutting-edge lighting performance. Its curvilinear, organic form draws from natural shoreline aesthetics, while the internal construction prioritizes ease of maintenance. The fixture features a removable circular sleeve that houses all critical components, allowing tool-free servicing by simply removing the front cap and twisting the handle.
Constructed from A380 die-cast aluminum with stainless steel hardware, the A-CT5 offers robust durability. It features a two-layer marine-grade finish consisting of sulfuric acid anodization and a TGIC polyester powder coat, delivering exceptional resistance to weather and corrosion. This finish has been tested to meet ASTM standards, ensuring long-lasting performance in outdoor environments. A tempered glass lens provides superior shock resistance and tolerance to thermal expansion and stress, while the die-cast aluminum knuckle with ½"-14 NPSM threads allows for secure installation with compress-and-lock functionality and 105° vertical adjustability in 5° increments.
The A-CT5 is equipped with an integrated Xicato® LED module that uses Next Generation Corrected Cold Phosphor Technology® to maintain light quality and precise color consistency within 1 x 2 MacAdam Ellipses. It supports a wide range of correlated color temperatures (CCTs) from 2,700K to 4,000K and offers lumen outputs from 700 to 2,000 lumens. Beam angle options include preinstalled spot (20°), flood (40°), wide flood (60°), very wide flood (90°), and wall wash (90° x 120°), all of which are field replaceable.
The fixture operates on input voltages between 110–277V and supports dimming via either phase control or 0–10V protocols. Power consumption ranges from 7.3W to 23.8W depending on output, with efficacy values between 76 and 87 lumens per watt. The A-CT5 delivers center beam candlepower (CBCP) as high as 6,146 (spot, 20°) at 2,000 lumens. It is compatible with Luxor® ZD systems using the Luxor CUBE and features tamper-resistant elements and a UL1015-rated wiring system (18/3 for phase dimming, 18/5 for 0–10V).
The housing accommodates a removable lighting cartridge that integrates the LED module, optics, and driver into a single serviceable assembly. The patented sleeve cover aids in precise positioning and alignment from grade, while the vertical and horizontal ½" NPT knockouts in the shroud ensure flexible installation. Designed for both upward and downward mounting orientations, the fixture meets IP67 standards for ingress protection and has a minimum rated life (L80) of 50,000 hours.
The A-CT5 weighs 7.9 lbs (3.6 kg) and supports sustainable practices through the use of recycled materials wherever possible without compromising performance. Its LED technology ensures high-quality light output with excellent energy efficiency, long lifespan, and enduring durability. The fixture is built to perform across a range of ambient temperatures depending on the lumen package: from -13°F to 122°F (700 lm) down to -13°F to 95°F (2,000 lm).
