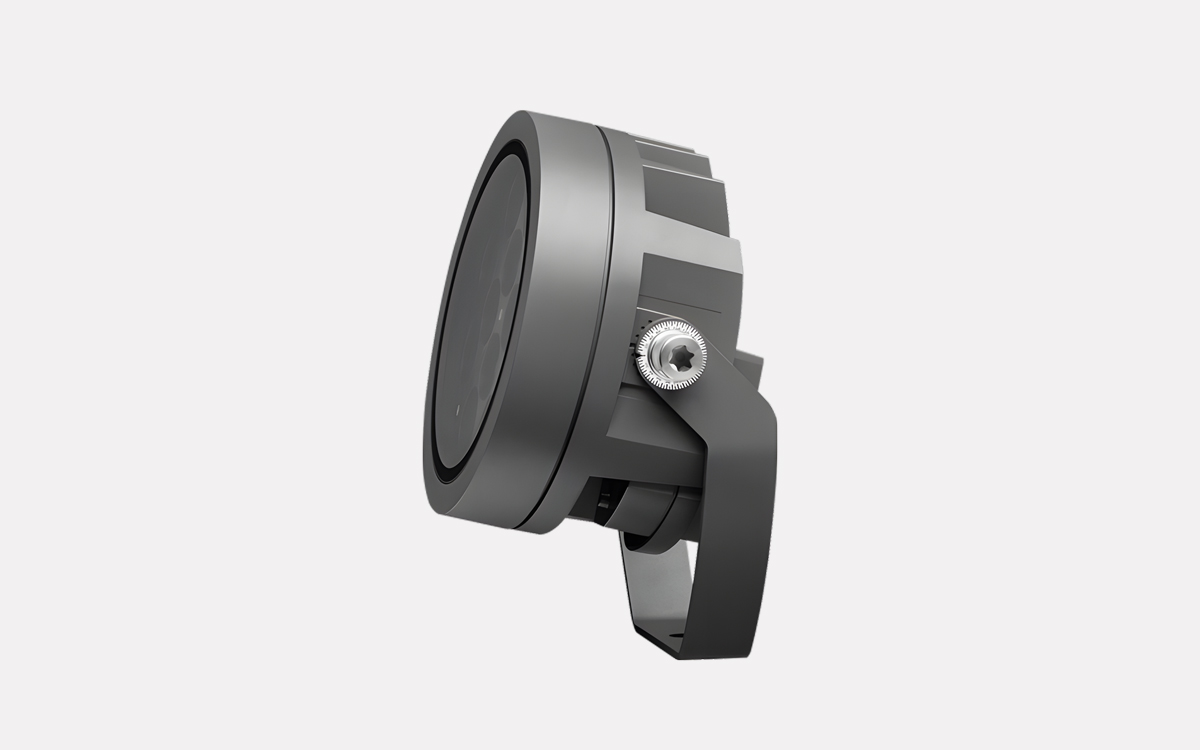

The FLC230-CC is a high-performance LED floodlight designed as a dynamic RGBW or RGBA color changer, ideal for architectural lighting applications that require vibrant, controllable illumination. Housed in a marine-grade, die-cast aluminum alloy body, the luminaire offers exceptional durability and long-term performance in challenging environments. It carries an IP66 rating for water and dust resistance and IK07 protection against impact. The housing also features 5CE superior corrosion protection and is fitted with PCS polymer-coated stainless steel hardware for added resilience in coastal or industrial settings.
Equipped with a silicone CCG® Controlled Compression Gasket and a robust safety glass lens, the FLC230-CC is engineered to maintain environmental sealing and optical clarity. Inside, the fixture features CAD-optimized optics for high-quality beam performance and glare control. The OLC® One LED Concept supports uniform color mixing, while the factory-installed LED circuit board ensures reliability and consistent output.
This floodlight incorporates an integral EC electronic converter housed in a thermally separated compartment, enhancing component lifespan and efficiency. It operates on a 220-240V, 50-60 Hz power supply, with a power factor greater than 0.9. Optional surge protection up to 1/2 kV (SP10) is available for installations in sensitive environments. For lighting control, the fixture includes a DMX interface and M20 cable gland suitable for both DMX and network connections. WE-EF recommends using a “Power PUR-SR 3x1.5 + DMX” multicore cable for combined power and data transmission.
The FLC230-CC offers a range of symmetric light distributions including wide, medium, narrow, and very narrow beams with sharp cut-off (EES), as well as linear spread and wallwash configurations—making it versatile for façades, accent lighting, and color-changing effects in public spaces. Its wind-exposed surface area (EPA) measures 0.054 m².
Finish options include RAL9004 Signal Black, RAL9006 White Aluminum, RAL9007 Grey Aluminum, RAL7016 Anthracite Grey, and RAL9016 Traffic White to suit diverse architectural palettes. The luminaire is compatible with a broad array of DMX accessories, including Eco Step Dim® Advanced, RDM-ready DMX controllers, splitters, booster boxes, motion sensors, termination plugs, plug and socket systems, combination cables, wireless repeaters, transceivers, and antennas. It is also R2C (Ready to Connect) compliant for simplified installation.
Altogether, the FLC230-CC LED floodlight blends robust construction, advanced color-changing capabilities, and extensive control options, making it an ideal solution for creative and architectural lighting installations.
