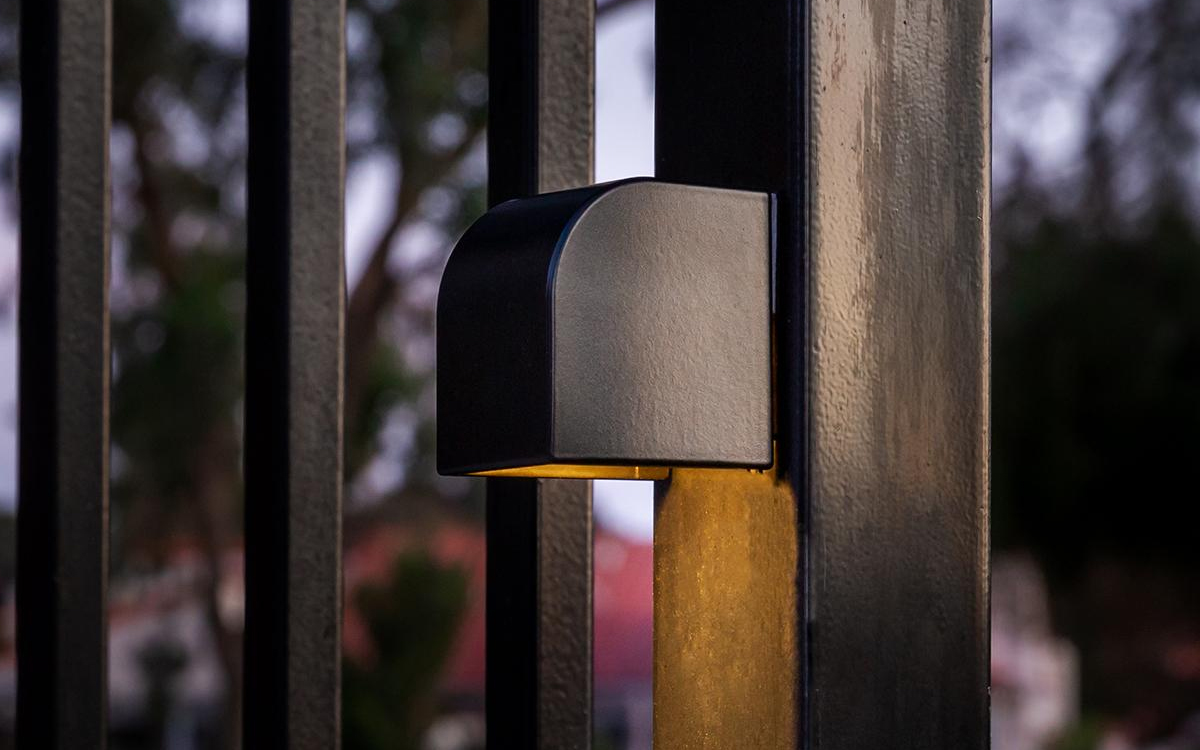

The QL down light is a compact and efficient lighting solution, measuring just 1.5 inches (38 mm) wide, making it perfect for installation on narrow posts, perimeter fencing, pool enclosures, columns, doorways, and pergolas. Its design features tamper-resistant elements, ensuring secure installation in outdoor or exposed environments. Constructed from die-cast A380 aluminum with a two-layer marine-grade anodization and powder-coat finish, the QL is built to withstand harsh outdoor conditions while maintaining an attractive appearance.
Equipped with Cree integrated LEDs, the QL delivers a total output of 53 lumens, operating on an input voltage range of 10 to 15 volts. The fixture is phase and PWM dimmable, and it is compatible with Luxor technology, allowing zoning and dimming control for up to 250 groups with 1% increment adjustments. The integrated LED module features gold-plated connectors and a conformal coating for enhanced reliability and corrosion resistance. A proprietary onboard intelligent driver manages temperature regulation via firmware, maximizing LED lifespan with a minimum rated life of 55,000 hours. The LEDs are field upgradeable and replaceable, and the maximum drive current is 1 amp.
The QL’s socket incorporates MoistureBlock™ technology, preventing moisture from wicking into the fixture’s sealed areas. It comes standard with a polycarbonate color temperature adjustment lens preinstalled at 2,700K, with an option for 3,900K (no lens). The optics are interchangeable and available in beam angles of 10°, 20°, 30°-32°, or 55°-58°, which can be serviced in the field for versatile lighting effects. The lens is made from clear polycarbonate, designed to resist shock and withstand thermal expansion and stress.
Installation hardware includes a stainless steel mounting plate and screws for secure attachment. The fixture weighs just 0.36 lbs (0.16 kg) and operates effectively within ambient temperatures from 0°F to 140°F (–17°C to 60°C). The QL is designed specifically for downward installation and meets international compliance standards per IEC 60598-1 and IEC 60598-2-7 when the "e" option is selected in the parts builder. Power input requires a remote transformer (specified separately) operating at 10–15 VAC/VDC, 50/60 Hz.
Overall, the QL down light provides a durable, reliable, and flexible lighting option for architectural and landscape applications where compact size and high-performance LED illumination are essential.
