The Astramax HD-LED is a compact yet powerful surgical light engineered to deliver exceptional illumination for modern operating theaters. Despite its slim and lightweight design, the Astramax HD-LED generates an impressive 150,000 Lux output, rivaling much larger surgical lighting systems. Its advanced high-definition LED technology provides vastly improved performance compared to conventional or standard-definition surgical lights, ensuring surgeons benefit from superior visibility and precision during procedures.
One of the standout features of the Astramax HD-LED is its full-spectrum color rendition, offering near-perfect color accuracy across the visible spectrum. The natural white light allows clinicians to distinguish subtle variations in tissue without eye strain, ensuring that all colors appear strong, vibrant, and true to life. Enhanced visual clarity reduces fatigue, enabling surgical teams to focus entirely on the procedure rather than compensating for lighting limitations. In addition, the light includes advanced red balance control, delivering the highest R9 red color rendition of any comparable system. This user-adjustable feature compensates for human limitations in perceiving shades of red, enhancing visualization of red tissues and improving differentiation between tissues of similar color. Surgeons can fine-tune the light to match their own visual perception and the specific requirements of the surgical environment.

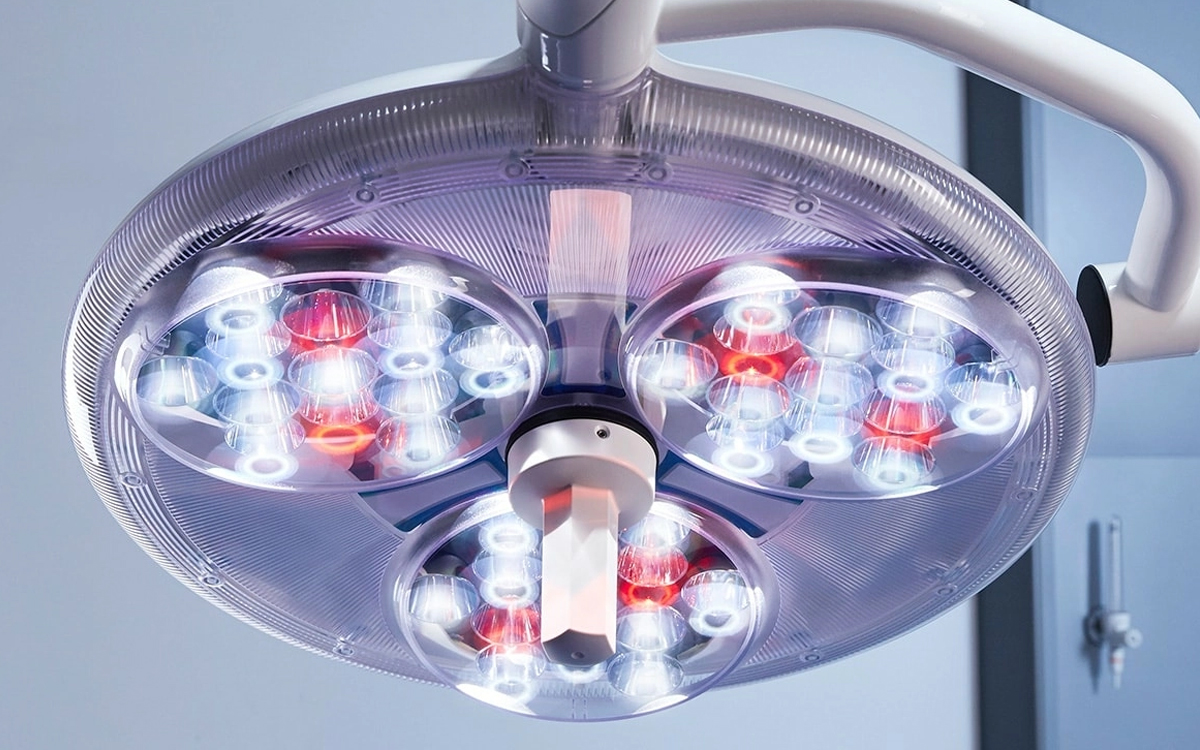

The Astramax HD-LED’s optical design ensures fat beam illumination, providing a large, uniform field of light across the surgical site. High light flux produces the widest illuminated area available, minimizing high-contrast zones that can cause visual distraction and allowing for adjustable beam sizes to match the surgical field. The lamp illuminates a large area of 320mm in diameter, making it easier to target tissue precisely and maintain consistent lighting across the entire operative site. By spreading LEDs across the lamp head, the system also achieves excellent shadow control, under-lighting obstructions and eliminating areas of darkness even when instruments or hands enter the lighted zone.
Designed for optimal maneuverability, the Astramax HD-LED features a multimovement arm mechanism that provides an exceptionally wide range of positioning options. The lamp head offers five axes of rotation, enabling surgeons to precisely direct light from any angle while maintaining stability and ease of use. The ultra-slim, lightweight lamp head ensures smooth and fast adjustments, allowing the surgical team to reposition the light without disrupting workflow.
In addition to its optical performance, the Astramax HD-LED integrates advanced lighting control and energy efficiency. Consuming less than 50 watts of power, it operates with minimal energy usage while delivering maximum illumination. With a rated lifespan of over 60,000 hours—equivalent to more than 20 years of typical use—the light significantly reduces maintenance costs. Its environmentally conscious design eliminates mercury, CFCs, POPs, VOCs, halogens, and other harmful chemicals, while maintaining compliance with RoHS standards, making it one of the most sustainable surgical lighting solutions available.
The system also prioritizes infection control and clinical hygiene. The lamp head is sealed to IP54, protecting against the ingress of dirt and fluids, and features smooth surfaces for easy disinfection. Maneuvering is accomplished via a sterilizable handle, with disposable handles available as an option for added convenience. This careful attention to hygiene ensures that the Astramax HD-LED meets the stringent requirements of surgical and clinical environments.
Overall, the Astramax HD-LED combines high-definition illumination, precise color rendition, wide-area coverage, shadow control, and advanced ergonomic design to meet the demanding needs of operating theaters. Its versatile optical and control features, along with energy efficiency, long life, and robust infection control, make it an ideal choice for clinicians seeking a reliable, high-performance surgical lighting solution.
