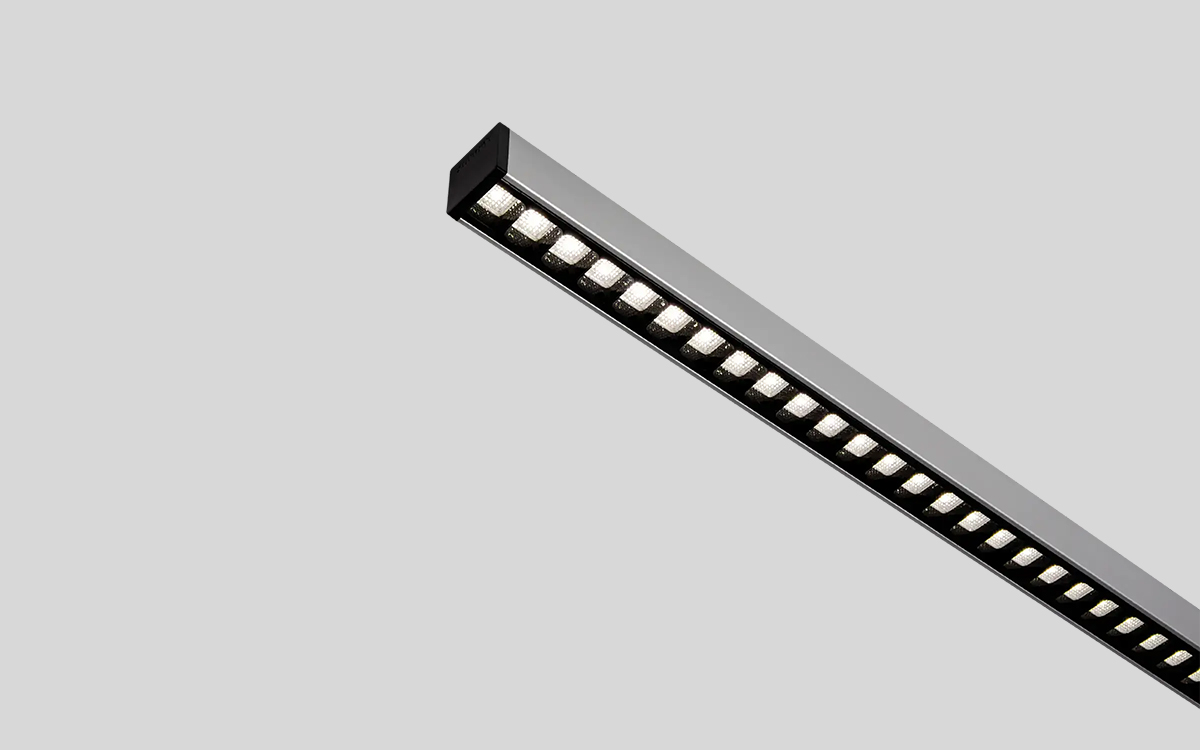

The Flexline is an extremely narrow profile linear luminaire, thoughtfully designed specifically for mounting to exposed T-bar ceilings. It features sophisticated, highly efficient low glare optics that provide a radically different alternative to conventional 600 x 600 luminaires. This innovative design allows for greater flexibility in lighting layouts, freeing designers from the restrictions imposed by traditional luminaire spacing.
Ideal for applications such as teaching spaces, offices, corridors, waiting rooms, reception areas, and retail environments, the Flexline luminaire offers several customization options. It includes a black ‘invisible’ light source, metallised low glare, and white reflector versions. Additionally, its wattage can be selected during installation, and it utilizes a pluggable power pack with a flat ribbon cable, eliminating the need to cut ceiling tiles. This feature, combined with its fast installation process, makes it an efficient and versatile solution.
The Flexline is mounted on the surface and carries an IP20 rating, suitable for indoor environments. It supports a maximum presence detection height of up to 8 meters. Its lumen output ranges from 1,245 to 11,550 lumens, achieving an efficacy of up to 129.7 LL/CW. For emergency lighting, it offers a maintained emergency lumen output between 265 and 370 lumens, powered by a Nickel Metal Hydride (NiMH) battery, lasting for a duration of three hours.
The luminaire’s LED power ranges from 12 to 82 watts, with LED power per meter between 4 and 10 watts, and a circuit power of 16 to 90 watts. It delivers a color rendering index (CRI) of 80+ and a color temperature of 4000 K, with a rated life of 100,000 hours at L80/B10. The Flexline is fully compliant with UKCA and CE standards and contains a light source with an energy efficiency class B rating.
