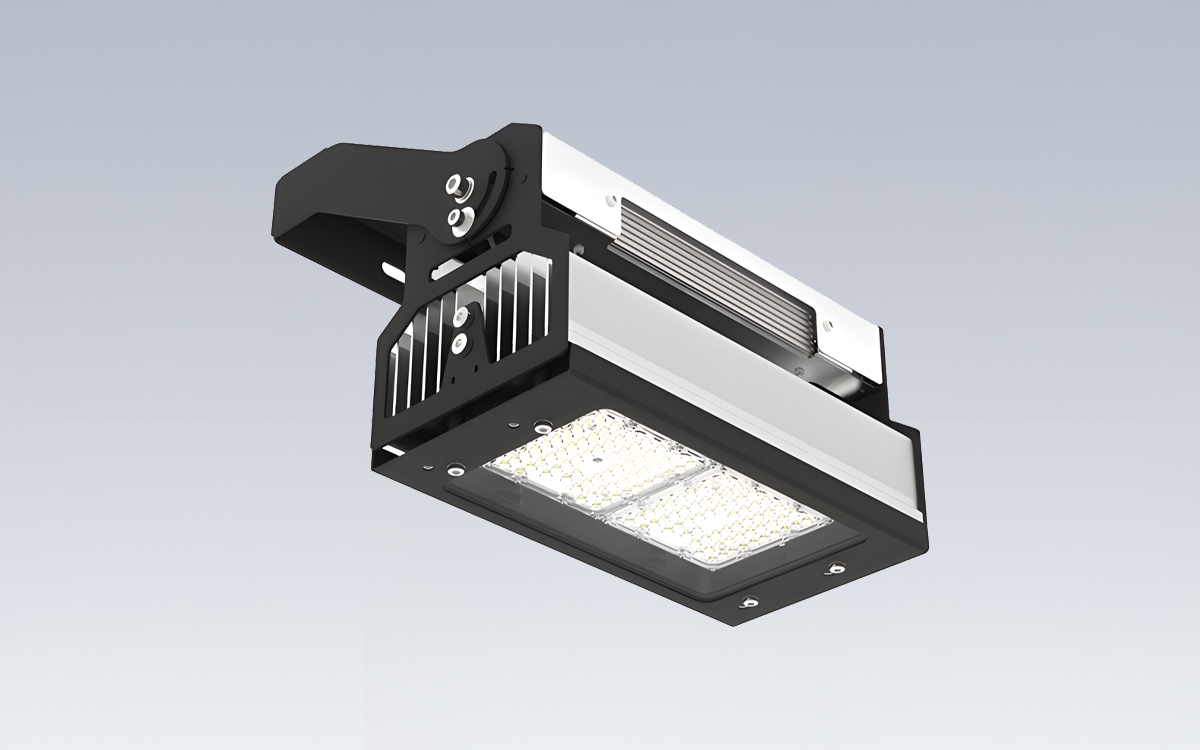

The Master M04 LED floodlight from Midstream Lighting offers a highly efficient solution for retrofitting Metal Halide floodlights, combining robust construction, versatile modular architecture, and significant lumen output for demanding environments. This floodlight is suitable for a wide range of applications, providing reliable performance under harsh conditions while maintaining low maintenance requirements and long operational life.
With a modular configuration, the Master M04 allows for flexible placement of multiple power products within a single location, accommodating diverse lighting needs. The floodlight is capable of delivering up to 65,000 lumens, meeting stringent output requirements while offering the option of asymmetric or symmetric light distribution. This flexibility ensures optimal coverage and uniformity for various settings, from industrial sites to large outdoor areas.
The floodlight incorporates an extruded aluminum heat sink, which maximizes heat dissipation across a large surface area and minimizes lumen degradation, contributing to a longer operational lifespan. Its stainless steel construction enhances structural integrity and resistance to environmental stresses, while an anti-corrosive primer and powder coating provide additional protection for long-term durability. The unit is certified IP66 against powerful waterjets and meets high impact resistance standards, ensuring dependable outdoor performance.
Control and integration are simplified through plug-and-play DALI capabilities, allowing the Master M04 to connect seamlessly with existing lighting systems for straightforward management and dimming. Electrical features include high driver efficiency at 94%, a power factor of 0.96, surge protection up to 10kV line-earth and 6kV line-line, and overheat protection that reduces output current under extreme conditions. The total harmonic distortion ranges from 10% to 20% depending on voltage input and load, supporting reliable operation in complex installations.
The Master M04 LED floodlight includes a broad color temperature range of 3000K to 5700K and selectable CRI levels of 70, 80, or 90. The floodlight body measures 434 × 333 × 345 mm and weighs 15.5 kg, with mounting options that include an angled reversible bracket with multiple fixing points. The floodlight is equipped with 128 LEDs behind an anti-yellowing PMMA refraction matrix, combining durability and optical performance in a single, modular unit suitable for a wide variety of challenging lighting environments.
