TOMAR's RECT-14 is a compact and highly efficient dual-channel LED warning light designed to deliver maximum light output within a minimal physical footprint. Engineered with ultra high-intensity LEDs and offered in both single and split-color configurations, the RECT-14 provides end users with programmable flash patterns, making it a versatile and reliable solution for a wide array of emergency and auxiliary vehicle lighting applications. Its compact size measures just 4.5 inches wide by 1.25 inches high and 0.75 inches deep, making it an ideal choice for vehicles or equipment where space is limited.
Constructed from optical-grade Lexan® material, the RECT-14 is hermetically sealed using TOMAR’s patented T-Seal™ technology (U.S. Patent No. US-8282242-B1), achieving an industry-leading IP69+ rating for water and dust intrusion resistance. This advanced sealing method uses linear vibration welding to permanently fuse a thermally conductive material to a polycarbonate baseplate, eliminating the need for rubber gaskets and ensuring unmatched durability. This rugged design enables the RECT-14 to withstand extreme environmental conditions, including exposure to dust, water, and mechanical stress, making it ideal for demanding field use.
The performance of the RECT-14 is further enhanced by TOMAR’s Clear Vision Optics™ system, which incorporates a precision-aligned hybrid total internal reflection (TIR) collimator. This advanced optical technology shapes and focuses the beam output for maximum efficiency, minimizing stray light while delivering bright, controlled illumination exactly where it’s needed. The optical design allows the RECT-14 to meet stringent SAE J595 and SAE J845 Class 1 compliance standards, ensuring top-tier visibility and safety in critical applications.

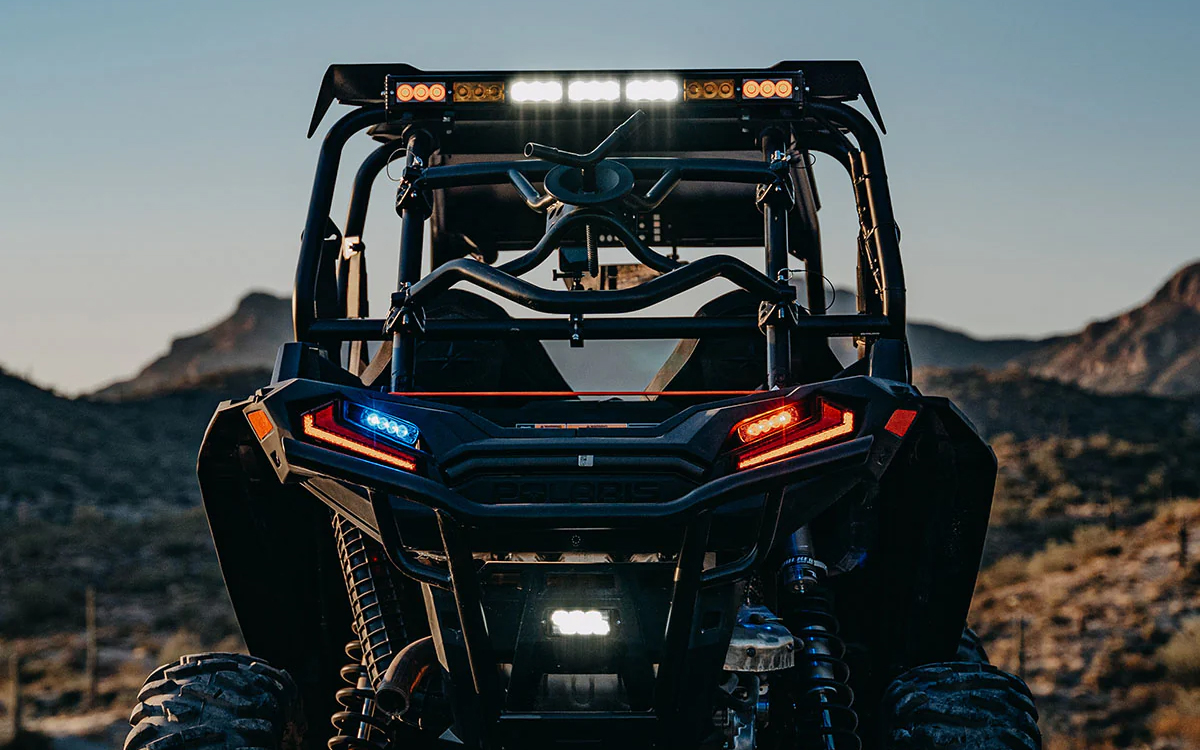

Thanks to its ultra-compact size and rugged durability, the RECT-14 is well-suited for a variety of applications across different industries. Wildland fire vehicles benefit from the compact LED warning lights, which enhance visibility in remote, off-road, and low-light conditions for brush trucks, UTVs, and quick-attack units. Law enforcement vehicles can use the RECT-14 on push bumpers, rear-view mirrors, or grilles to provide additional conspicuousness. EMS vehicles gain enhanced intersection clearing capability by mounting the lights on mirrors or license plate areas using the split-color strobes. Utility and work trucks use the RECT-14 to provide supplemental warning signals on toolboxes, tailgates, or body panels, while construction vehicles appreciate the ability to add visual alerts without sacrificing limited space. The light is also ideal for UTVs and side-by-sides, where compact warning lights are necessary due to smaller vehicle profiles.
The RECT-14 features four ultra-high-intensity LEDs trusted by first responders and was originally developed for firefighters, police, and EMS vehicles. It comes with two independent trigger wires, allowing for two programmable modes such as steady-on and flashing. Additionally, a synchronization wire enables multiple units to operate in perfect unison for a clean, coordinated visual effect. Each RECT-14 light is available in multiple colors—amber, blue, red, green, and white/clear—and can be configured in single-color mode, where all four LEDs emit one color, or split-color mode, which allows two LEDs to display one color and the other two a different color. This split-color feature supports advanced functions such as wig-wag flashing between the two colors or a steady burn of both colors simultaneously, providing versatile signaling options.
The RECT-14 is fully compliant with SAE J845 and SAE J595 standards, offering three beam angle classes to meet different visibility requirements: Class 1 with a ±40-degree beam angle, Class 2 with ±60 degrees, and Class 3 with ±75 degrees. Its electrical specifications include an average current draw of only 0.40 amps and compatibility with 12 to 24 VDC input voltage. The light operates reliably in a wide temperature range from -55°C to +65°C, ensuring performance in extreme climates.
For wiring, the RECT-14 uses a straightforward color-coded system: the red wire connects to battery positive (12–24 VDC) to activate the light, the black wire connects to battery ground, the yellow wire serves as the sync line for synchronized operation, and the blue wire provides an alternate flash pattern option. Mounting is flexible, with a full array of bracket options available to suit various vehicle setups. TOMAR backs the RECT-14 with a five-year warranty, underscoring the product’s reliability and quality.
Overall, the RECT-14 is a technologically advanced, compact LED warning light that combines durable construction, superior optics, flexible color and flashing options, and robust environmental protection to deliver dependable performance across a broad spectrum of emergency and utility vehicle applications.
