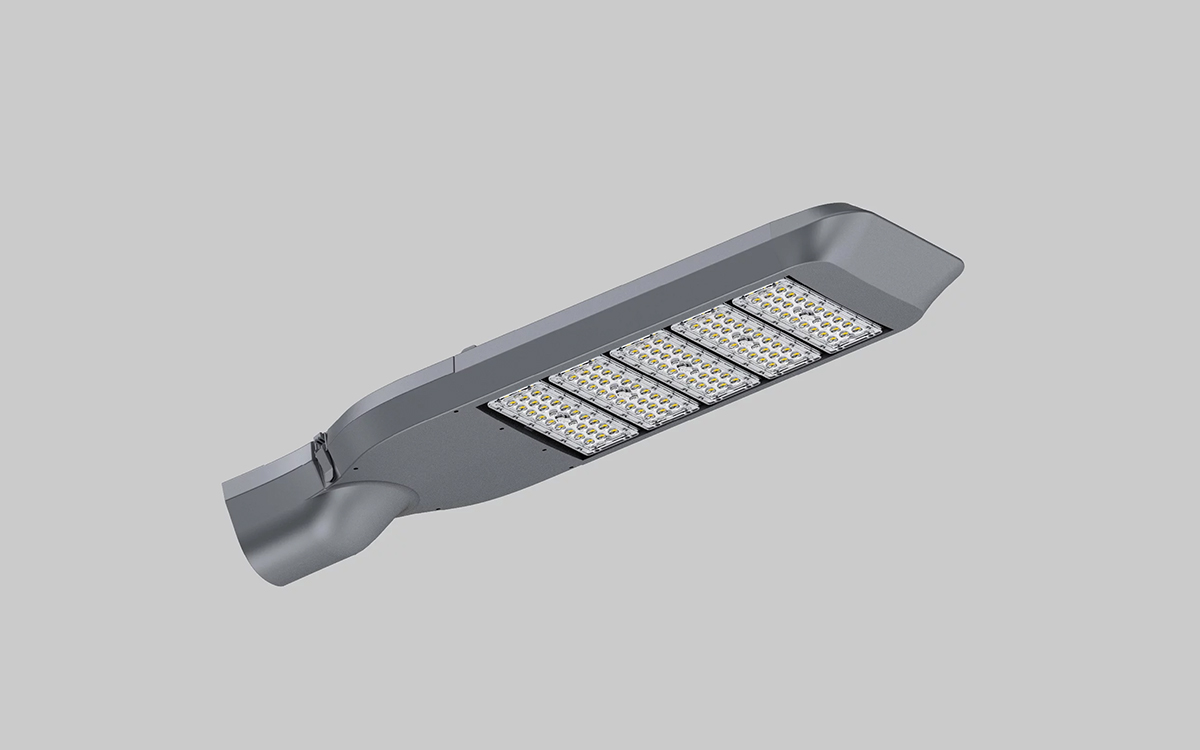

The LED Street Light EXC-RL-Z03 features a high-quality, famous brand waterproof isolated switching power supply, ensuring excellent safety and reliability. Its modular serialization design allows for quick maintenance and flexible power expansion, adapting seamlessly to varying lighting needs. The lamp body undergoes an outdoor electrostatic spraying process, providing superior corrosion and weather resistance, which makes it suitable for a wide range of complex environmental conditions. The lens is crafted from high-quality imported optical-grade material, delivering precise light distribution with high efficiency and strong durability against weather impacts. Multiple light distribution angles are available, making this street light versatile for various lighting applications. It also supports intelligent control options such as CAT.1, PLC, NB, and 485, with Class 1 anti-electrocution protection for added safety.
The EXC-RL-Z03 series represents a modern, modular approach to street lighting, offering a flexible and adjustable GB module design that facilitates easy maintenance and allows the elevation angle of the lamps to be customized based on specific site conditions. It utilizes advanced modular heat dissipation technology to ensure optimal thermal management, maximizing the performance and lifespan of the lamp. The lamp's compact and smart design enhances both functionality and aesthetics. The independent electrical cavity combined with photoelectric separation design guarantees system stability by preventing heat buildup. Equipped with first-line light sources and power supplies, this series delivers high performance and reliability while reducing operational costs.
The lens system uses imported optical-grade materials to ensure accurate light distribution, high efficiency, and robust weather resistance. With multiple light distribution angle options, the EXC-RL-Z03 can accommodate a wide array of lighting scenarios. Smart control capabilities include PLC, ZigBee, and light sensors, supporting advanced light management solutions. This series offers 0/1-10V dimming, time control, daylight sensors, and IoT integration, enhancing intelligent lighting management. Additional features include a choice of 3-pin, 5-pin, and 7-pin NEMA bases, coastal anti-corrosion coatings for harsh environments, electrical isolation switches, and surge protection options of 10KV or 20KV. It supports installation on poles with diameters ranging from 42mm to 76mm.
Designed for urban roadways, highways, and other public lighting applications, the EXC-RL-Z03 series combines high performance, excellent reliability, and advanced light control technologies. Its elegant and functional design also makes it an attractive architectural element, contributing positively to the cityscape.
Basic specifications include power options from 50W up to 300W, input voltage compatibility of AC90-305V at 50/60Hz, and a power factor exceeding 0.95. The light sources used are 2835, 3030, or 5050 LEDs with color temperatures ranging from 3000K to 5700K, and a color rendering index (CRI) above 70. The luminous efficacy ranges between 130 and 180 lumens per watt, with an expected lifespan of 50,000 hours. The lamp housing is made from ADC12 and AL6063 materials, rated IP66 for dust and water resistance, and operates reliably in temperatures from -40°C to +50°C and humidity levels of 10% to 90%. The lighting fixture supports 3-in-1 dimming interfaces, making it adaptable to various intelligent control systems.
