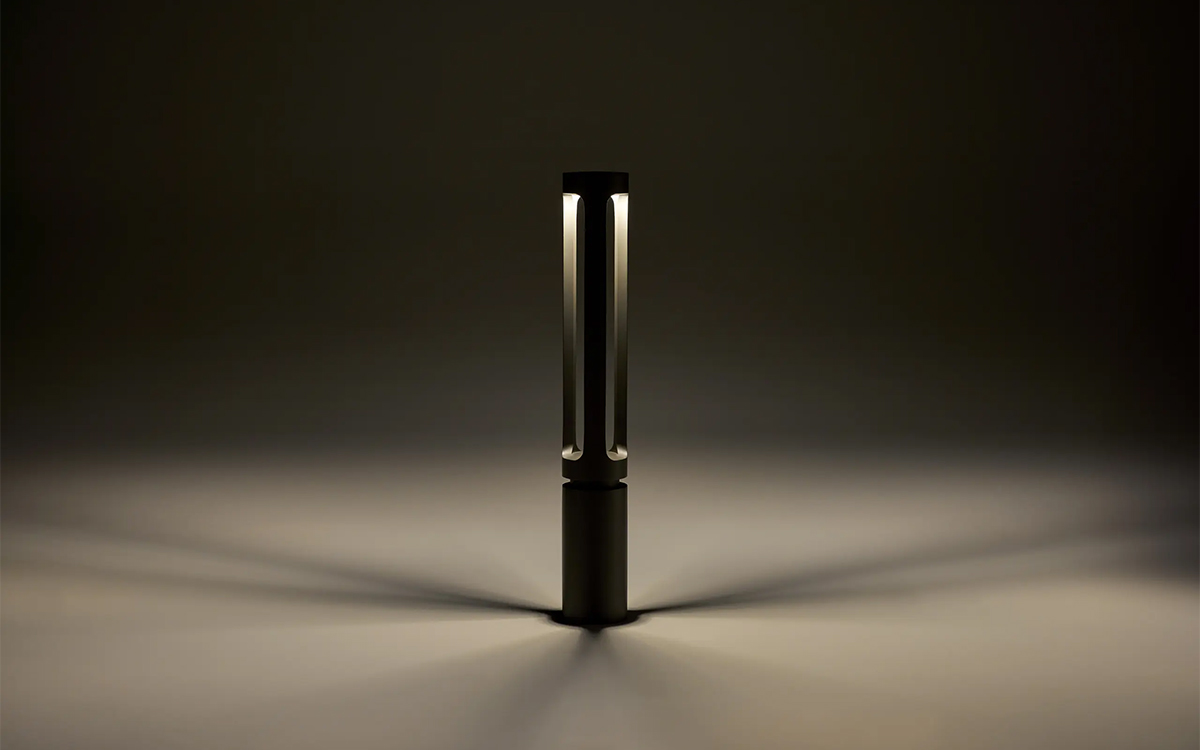

Outline Bollard delivers refined aesthetics and elevated performance tailored for urban environments. Designed as a perfect complement to the line’s pedestrian-scale luminaires, the 4-foot lit and unlit bollards elegantly define space, intuitively guide pedestrian traffic, and confidently extend the usability of outdoor areas with a sculptural, modern form. One of its standout features is the seamless transition between the luminaire and ground plane, creating a clean, cohesive visual effect. The directed optic design ensures superior visibility while minimizing high-angle glare, enhancing comfort and safety in public spaces. Additionally, Outline is Buy America Compliant and International Dark-Sky Approved, meeting stringent standards for environmental responsibility and manufacturing quality.
Outline reinterprets the familiar light column by combining refinement and elegance with the robustness required for demanding public environments. It functions not only as a high-performance luminaire but also as a wayfinding element and architectural detail. Its versatility allows it to integrate seamlessly within streetscapes, campuses, parks, and public plazas, where it beautifully defines space through both form and light. The product family includes luminaires at heights of 10, 12, and 4 feet, each offering a variety of distribution patterns and lumen packages. At the pathlight scale, the 4-foot illuminated bollard uses a directed optic to maximize spacing and ensure uniform light distribution. For additional flexibility, an unlit version is also available to delineate space without illumination.
Constructed with cast and extruded aluminum, Outline boasts a welded, ground, and finished housing designed for durability and elegance. The LED cartridge is factory sealed and replaceable, made from machined aluminum with a UV-stable, impact-resistant diffused acrylic lens. All hardware is magni-coated to provide optimal corrosion resistance and antiseize protection. The assembly is IP66 rated for weather resistance, while the internal electronic driver operates on 120V to 277V at 50/60Hz with built-in surge protection. The standard driver is non-dimming, but 0-10V dimming options are available upon request, with a start temperature as low as -40°C. The LED light engine features a replaceable cartridge with a die-cast aluminum heatsink, high-power LEDs mounted on RoHS-compliant circuit boards, and secondary optics. Available color temperatures include 2700K, 3000K, 3500K, and 4000K, all with a minimum CRI of 80. The luminaires meet or exceed TM21 L70 standards, offering more than 60,000 hours of rated life. The bollards mount at grade with galvanized steel anchor bolts, and installation hardware is included.
Outline embodies a combination of robust construction and sophisticated design. The Landscape Forms design team sought to merge elevated performance with refined aesthetics, resulting in a luminaire that eliminates high-angle glare (G-0 rated) to improve visual comfort and safety in public spaces. Design details are thoughtfully refined, including a seamless transition from luminaire to ground, the elimination of visible fasteners, and discreet flush handholes for easy installation and maintenance access.
More than a simple assembly of castings and extrusions, Outline is a singular, cohesive form. Its unique character comes from both its design and the meticulous craftsmanship involved in its manufacture. Handcrafted in Kalamazoo, Michigan, Outline features crisp lines, smooth fades, and flawless transitions achieved through precise welding, grinding, and finishing processes. This dedication to craft results in a modern yet approachable luminaire that is public space–ready, robust, and visually striking.
Outline offers pedestrian-scale light output ranging from 800 to 2300 lumens, with pathlight output between 700 and 1000 lumens. It supports color temperatures from 2700K to 4000K, maintaining a minimum CRI of 80, and is available with Type III and Type V light distributions. Multiple drive current options, a 7-pin NEMA receptacle, and an optional GFCI outlet with an in-use cover further enhance its functionality and adaptability.
