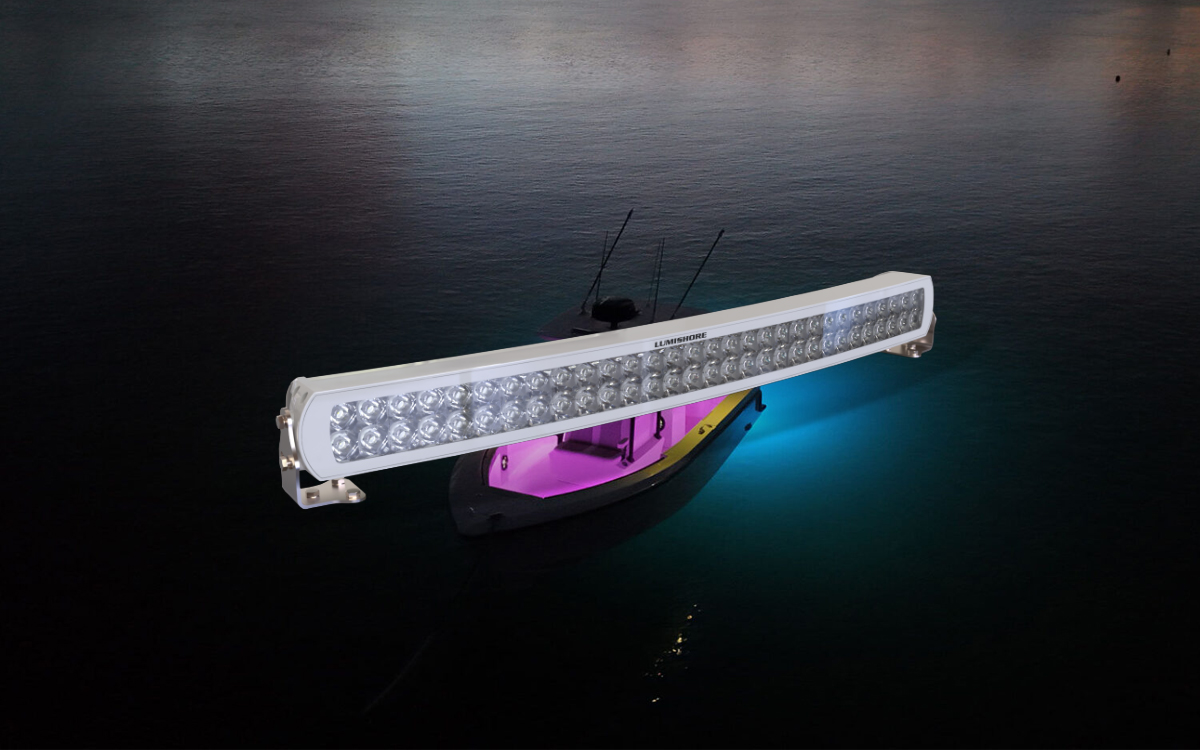

Lumishore’s Single Color Light Bars, part of the advanced LUX Lighting System, deliver powerful, crisp white (5500K) illumination, ideal for lighting hard-to-see spaces onboard. Available in four sizes—20”, 30”, 40”, and 50”—these high-output light bars are built for versatility and optimized placement across T-tops, helm roofs, fishing towers, bow platforms, and other structural features. Each model offers extreme brightness, durable marine-grade construction, and is fully compatible with Lumishore’s command centers for intuitive control.
All LUX Light Bars are constructed from marine-grade powder-coated aluminum and are sealed to IP68 standards for complete protection against water ingress, making them perfectly suited for the harshest marine conditions. Despite their intense brightness, the units feature a sleek, low-profile design that complements your vessel’s appearance, even when not in use. They are engineered to be both functional and stylish, integrating easily with a simple two-wire electrical connection, or a three-wire setup when connected to the EOS-LUX Command Center for advanced control features.
The 20-inch (60 cm) model delivers a robust 15,000 fixture lumens from 40 high-performance 10W white LEDs. It consumes a maximum of 12.8A at 12V DC or 6.4A at 24V DC. Its narrow letterbox beam pattern (9° vertical by 20° horizontal) provides focused illumination, making it ideal for spotlighting specific areas with clarity and precision.
Stepping up in size, the 30-inch (80 cm) Light Bar produces an impressive 23,760 fixture lumens from 60 white LEDs, offering a broader 9° by 32° beam angle. It draws 19.3A at 12V DC or 9.6A at 24V DC, making it well-suited for general deck lighting, fishing spaces, and enhanced onboard visibility after dark.
The 40-inch (100 cm) Light Bar represents class-leading marine lighting performance with 31,680 fixture lumens produced by 80 10W LEDs. It spreads light with a 9° by 45° beam and requires up to 25.7A at 12V or 12.8A at 24V DC. Its expanded coverage and exceptional output make it ideal for illuminating large deck areas and work zones.
For the ultimate in marine flood lighting, the 50-inch (130 cm) Light Bar offers a staggering 39,600 fixture lumens from 100 white LEDs, distributing a wide 9° by 50° oval beam pattern. Drawing 32A at 12V or 16A at 24V DC, this fixture is unmatched in output and is perfect for vessels requiring maximum coverage and clarity across extended outdoor surfaces.
All LUX Light Bars use high-intensity chip-on-board (HICOB) LED arrays for uniform light output and extended performance life exceeding 50,000 hours. They are controlled by a simple on/off switch or can be upgraded for seamless integration with the ECLIPSE or EOS-LUX Command Center, enabling fine-tuned lighting control across your entire onboard lighting system.
Whether used for deck illumination, cockpit lighting, or enhanced safety and visibility, Lumishore’s Single Color LUX Light Bars provide rugged, high-lumen solutions engineered for serious marine environments.
