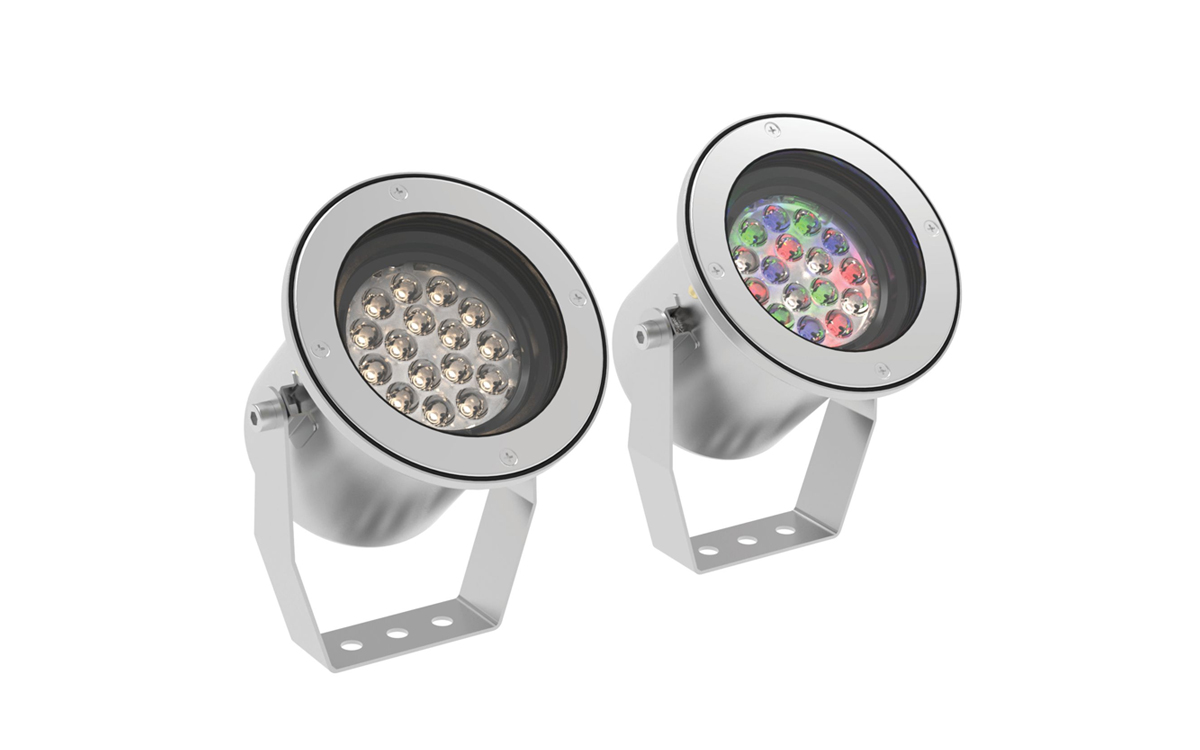

The Woda W3 Generation 2 (LS5030) is a next-generation pair of high-performance projectors engineered for demanding underwater and wet/dry environments. Built for enduring reliability and exceptional performance, these luminaires deliver up to 3,600 lumens of illumination, making them ideal for lighting applications in water features, sculptural elements, architectural facades, and landscapes.
Designed with versatility in mind, the Woda W3 offers a wide selection of configuration options including RGBW (with royal blue) and static white color temperatures, a variety of beam angles, and glare control accessories to shape light precisely to the needs of your space. Whether submerged or surface-mounted, this luminaire enables stunning lighting designs both in and out of the water.
Constructed from marine-grade 316 stainless steel and finished with Lumascape’s proprietary ElectroPolish+™ treatment, the Woda W3 combines durability with sleek aesthetics. A toughened glass lens ensures protection, while an IP68 rating to a depth of 33 feet (10 meters) guarantees dependable performance in underwater applications. The fixture also features multi-positional adjustability and a surface-mount installation system for added flexibility.
Available in both 48W and 24W versions, the Woda W3 delivers excellent lumen output and efficacy across a range of color temperatures. The 48W static white models output up to 3,590 lumens with a peak intensity of 40,600 candelas, while the RGBW version delivers 2,030 lumens. The 24W variant offers up to 2,170 lumens in static white and 1,270 lumens in dynamic color. Beam options include 13°, 33°, 47°, 20° x 66°, and 66° x 20°, allowing tailored lighting effects for any project.
With advanced CoolDrive™ thermal monitoring and control, the fixture ensures longevity and efficiency, achieving a projected lifetime of over 140,000 hours (TM21) at both 35°C water and 50°C ambient temperatures. It supports industry-standard control protocols including DMX/RDM, Artnet, and 0–10V dimming, along with 2 kHz flicker-free PWM dimming down to 0.1%. RDM functionality via PowerSync enables detailed customization through DMX interfaces.
The Woda W3 Generation 2 is certified to ETL, CE, RCM, and FCC standards and built to perform in the harshest conditions with confidence and clarity.
