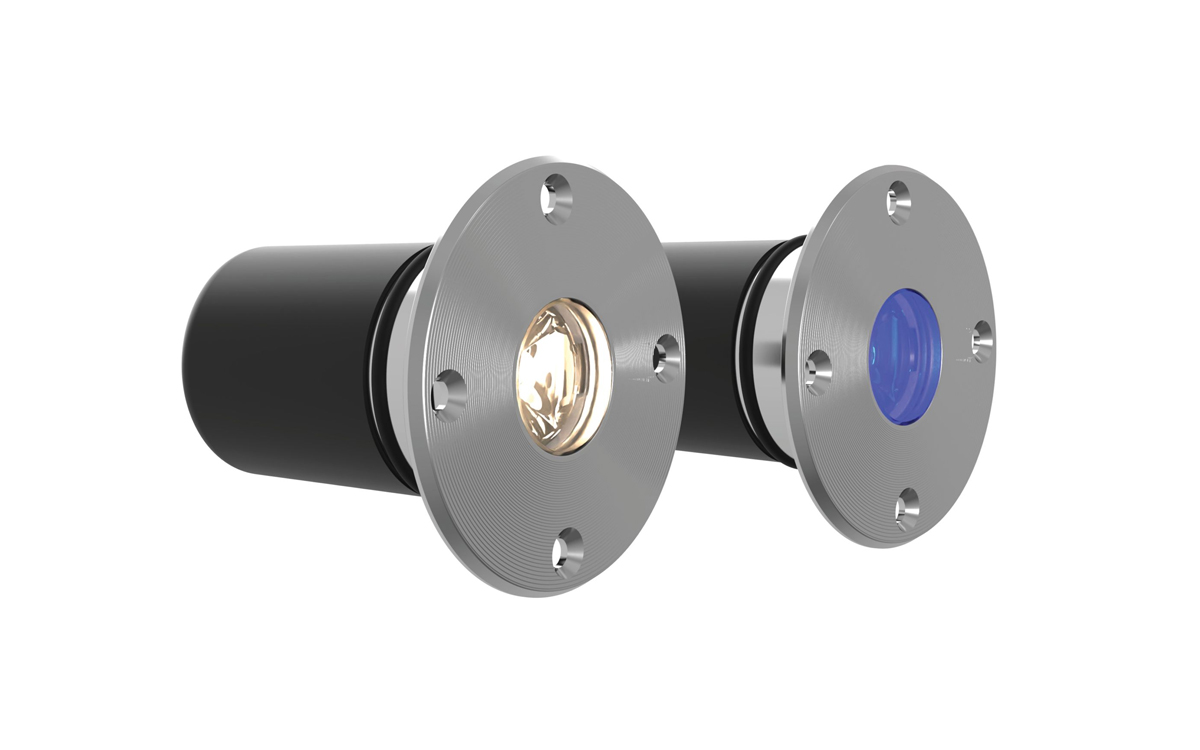

The LS9406LED Vedita Wall Mount is a precision-engineered luminaire designed for surface mounting with a robust, wide flange and countersunk screw holes for secure installation on any hard surface. This fixture offers a variety of beam angles—ranging from narrow to wide—including an asymmetric wall wash lens and flood or marker optics, enabling tailored lighting solutions for architectural and landscape applications. Constructed from 316 marine grade stainless steel and treated with Lumascape’s proprietary ElectroPolishPlus™ finish, the LS9406LED delivers enhanced durability and corrosion resistance, making it suitable for demanding environments.
The luminaire is available in static white or color configurations, including 3,000 K and 4,000 K white LEDs with a minimum 80 CRI. The 3,000 K option provides 169 lumens at 60 lm/W efficacy with a peak intensity of 1,989 candelas, while the 4,000 K version delivers 184 lumens at 66 lm/W with a peak intensity of 2,066 candelas. A blue 470 nm color option is also offered for accent and decorative applications. The fixture supports various beam angles including 14°, 20°, 30°, 10° x 40°, and a flood distribution, all optimized for performance and versatility.
The LS9406LED operates at 1W or 2W LED power with a maximum power consumption of 2.8W. It is compatible with low voltage power supplies, supporting 24V DC for international markets and 12–15V AC or 12–24V DC for North America. Control protocols are based on PWM, and the luminaire can be integrated with 0-10V, DMX, or DALI systems using appropriate converters—such as the LS67100 DMX to PWM converter, the LSLED-RGBDIM-DALI converter, or the LS6125-2 0-10V to PWM converter.
The fixture is housed in a recessed polymer body with a stainless steel bezel, rated IP68 for full submersion and harsh weather protection. Certified to CE and ETL standards, the LS9406LED is engineered for both performance and safety.
The system supports flexible run configurations. For advanced dimming and control, up to 20 individually addressable luminaires can be operated per run, with up to three dimmable channels and up to 20 fixtures per channel. These must be powered by individual supplies or via the LS67100 PWM controller (limited to 100W total). For static color applications, up to 50 luminaires can be grouped and dimmed together using the LS6122 wall plate dimmer, powered by either shared or individual supplies. In all cases, it’s essential to consult the ‘Maximum Circuit Load’ table and adhere to local electrical codes to ensure safe and compliant installation.
