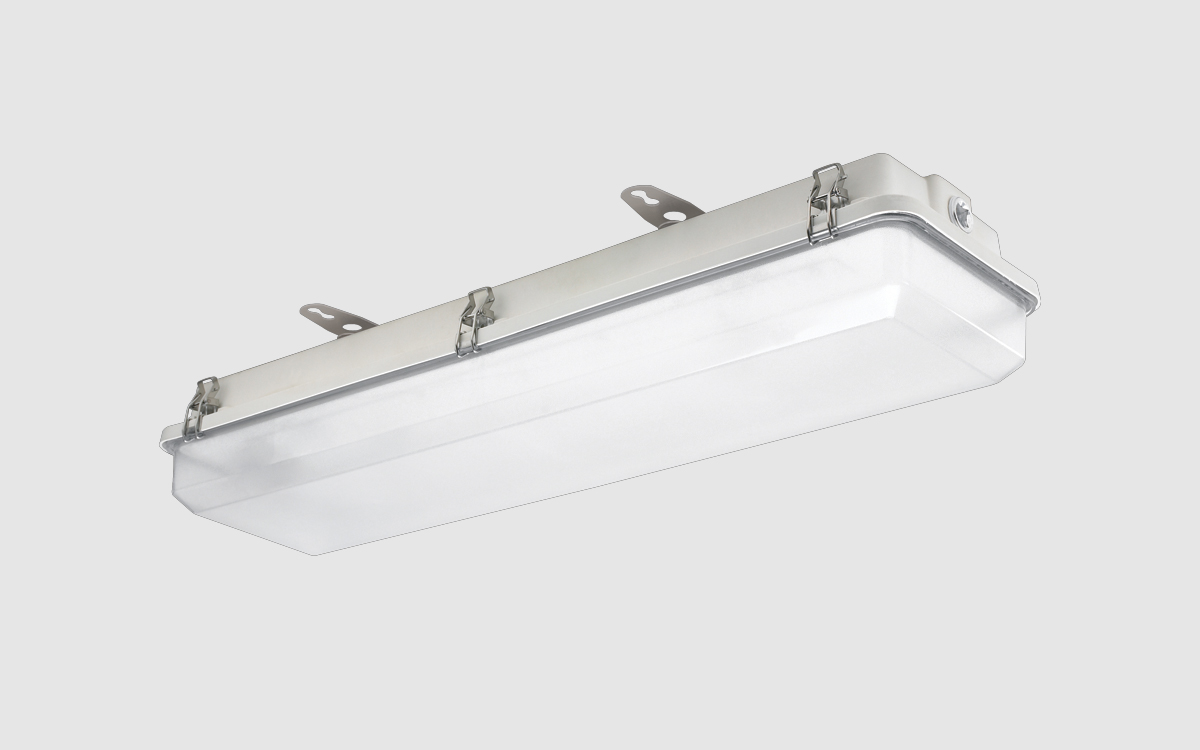

The ReadiLED™ Series is a versatile linear LED snaplight designed for efficient and reliable illumination in a variety of environments. Available in two sizes, the series includes a two-foot model consuming 29 watts and producing up to 3,700 lumens, and a four-foot model consuming 49 watts with a luminous output of up to 6,400 lumens. Both models offer optional emergency battery backup (EMB) to ensure continued lighting during power interruptions. Additionally, the ReadiLED Series comes in a retrofit kit, allowing for easy field upgrades of existing linear fluorescent fixtures. This retrofit capability supports a smooth transition to energy-efficient LED lighting that requires minimal maintenance and eliminates concerns related to bulb disposal.
Constructed with durability in mind, the ReadiLED fixtures feature corrosion-resistant, high-impact glass-reinforced nylon housings that are UV-stabilized for long-term outdoor use. The lens is made from matte-finished, high-impact polycarbonate and is tethered securely to the housing to prevent loss during maintenance. External hardware is composed of captive, non-magnetic stainless steel, enhancing resistance to corrosion and vibration, making the series suitable for demanding industrial and marine environments. The fixtures are UL rated for both interior and exterior wet locations, broadening their applicability to include locations exposed to moisture and harsh weather conditions.
Marine applications for the ReadiLED Series include use on exterior and interior decks, maintenance rooms, hold areas, and other wet locations where durability and corrosion resistance are critical. In industrial settings such as mining, ports, and manufacturing, the fixtures are ideal for machine houses, electrical and engine rooms, and wash-down areas, where reliable lighting is necessary despite challenging environmental conditions. The series also finds use in emergency lighting applications, parking garages, and stairwells, where safety and dependable illumination are paramount.
The ReadiLED fixtures are available with color temperature options including cool white (5000K) and neutral white (4000K), with a color rendering index (CRI) greater than 80 to ensure accurate color perception. Additionally, switchable red and blue LED options are available to meet specialized signaling or operational requirements. The LEDs boast a rated lifespan of approximately 50,000 hours, providing long-term, maintenance-free operation.
Electrical operation is flexible with a wide input voltage range of 120 to 277 volts at 50/60 Hz, and standard 0-10V dimming capability allows for field-adjustable light output to suit varying lighting needs. The fixtures include 3/4 inch NPT threaded conduit openings on both ends, complete with threaded plugs and cable glands to facilitate easy and secure wiring installation. Emergency battery backup models provide a minimum runtime of 120 minutes and deliver approximately 1,600 to 880 lumens depending on configuration.
The ReadiLED Series meets rigorous compliance standards, being UL and cUL listed for wet locations under UL 1598, with retrofit kits certified to UL 1598C. It also complies with CSA C22.2 No. 250.0-08, UL 924 for emergency lighting, ABS certification, and meets IP65 and IP67 (pending for two-foot models) ingress protection ratings. Additional certifications include CE marking, FCC Part 15 Class A emissions standards, and compliance with the Buy American Act (BAA).
The retrofit kit includes an internal driver tray preassembled with LED modules and drivers, designed for easy installation into Phoenix LFSB and LFW fluorescent fixtures. This feature facilitates smooth upgrades to modern, energy-efficient lighting without extensive fixture replacement.
In summary, the ReadiLED™ Series combines durability, flexibility, and efficiency, making it well-suited for demanding marine and industrial applications. Its robust construction, energy-saving performance, wide range of lumen outputs, and emergency backup options provide comprehensive lighting solutions for exterior decks, wet locations, maintenance and holding areas, machine houses, electrical rooms, wash-down zones, parking garages, stairwells, and other critical spaces requiring reliable and high-quality illumination.
