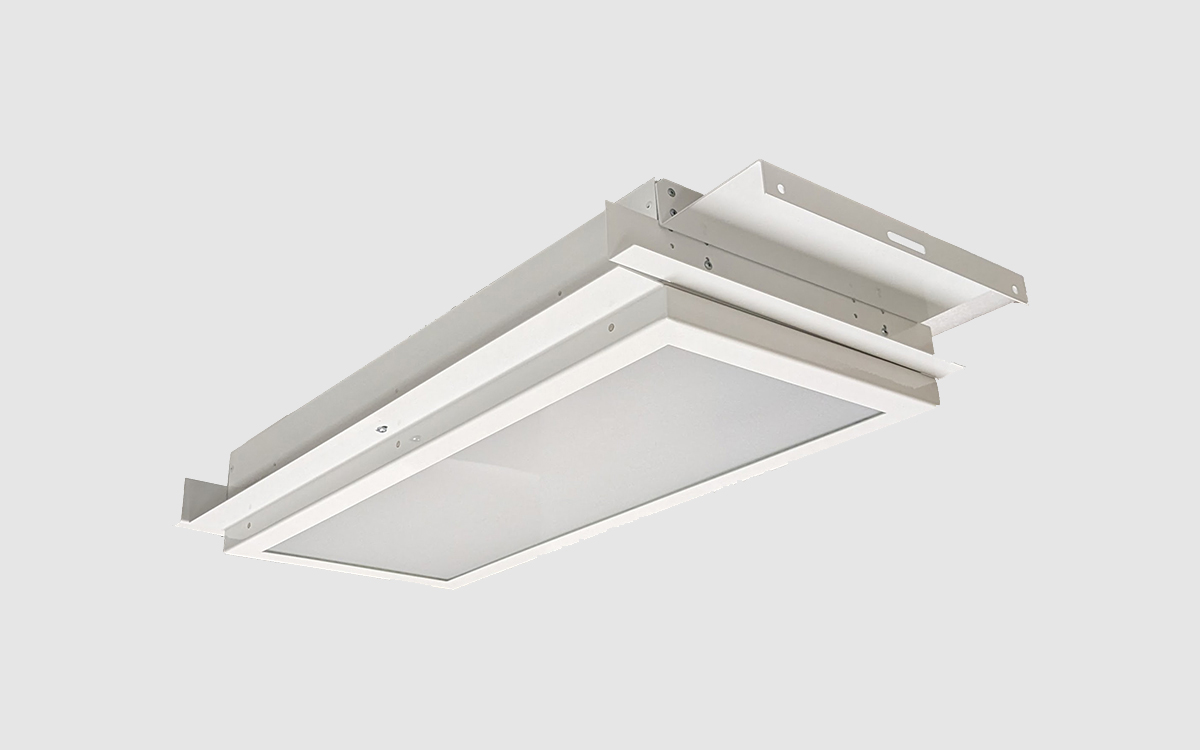

The LRMC Series is a high-performance linear recessed mount ceiling light specifically engineered for marine vessel recessed ceiling systems, including full compatibility with DAMPA and other 300 mm continuous plank ceiling installations. Available in both 4-foot and 2-foot models, the series delivers exceptional illumination output, with the 4-foot standard version producing up to 5,400 lumens and the high-output (HO) option reaching an impressive 10,000 lumens, while the 2-foot version provides up to 3,200 lumens. Both sizes are also available with switchable red or blue LEDs on a separate circuit, providing quick adaptability for nighttime operations with the simple flip of a switch. For enhanced safety and reliability, the LRMC Series offers an optional two-hour emergency battery backup (EMB), ensuring uninterrupted lighting during power loss.
Designed for ease of installation, the fixture supports recessed parallel (PAR) or perpendicular (PER) mounting within 300 mm linear interlocking ceiling systems and comes complete with a trim cover and mounting brackets. Its rugged cold rolled, corrosion-resistant steel housing is paired with marine-grade hardware and a durable white powder coat finish to withstand the harsh conditions often encountered aboard marine and offshore vessels. A choice of translucent white diffuser or clear acrylic prismatic lenses ensures controlled, uniform light distribution. The LRMC Series operates on AC 120–277 V 50/60 Hz power and features a high-efficiency driver with 1–10 V dimming capability, four field-adjustable output levels (25%, 50%, 75%, 100%), a power factor greater than 0.95, and total harmonic distortion (THD) under 15%. Standard models operate in ambient temperatures from -20 °C to +40 °C, while EMB-equipped units function from 0 °C to +40 °C.
The standard CCT options include cool white (5000 K) and neutral white (4000 K), with red or blue LED modes available for navigation safety and reduced nighttime glare. Wattages vary by configuration, with the 2-foot standard white version drawing 28 W, red at 12 W, and blue at 14 W; and the 4-foot standard white at 48 W, red at 19 W, blue at 25 W, and HO white at 96 W. Corresponding lumen outputs are up to 3,200 lumens for the 2-foot standard white, 800 lumens in red, and 400 lumens in blue; and for the 4-foot, up to 5,400 lumens in standard white, 1,300 lumens in red, 700 lumens in blue, and 10,000 lumens in HO white. The EMB provides a minimum 120-minute run time with charging power requirements of up to 27 W for the 2-foot and 51 W for the 4-foot, delivering 1,400 lumens in emergency mode.
Every LRMC fixture is built for long service life, with an operating lifetime rated at L80 > 100,000 hours per TM-21 testing. Multiple knockout options (two ¾-inch and two ½-inch) provide flexible wiring access. The weight of the 2-foot model ranges from 15 lb (6.8 kg) in standard white to 18 lb (8.16 kg) for white/red with EMB, while the 4-foot version ranges from 29 lb (13.15 kg) to 32 lb (14.52 kg) depending on configuration. Dimensions for the 2-foot PAR model are 25.18 in (640 mm) x 12.625 in (321 mm) x 3.125 in (79.4 mm), and for the 4-foot PAR model are 49.18 in (1249 mm) x 12.625 in (321 mm) x 3.125 in (79.4 mm).
The LRMC Series meets a comprehensive range of compliance standards, including UL/cUL Listing to UL 1598 for damp locations, UL 1598A Marine Inside Type (Drip Proof), UL 924 Emergency Lighting Equipment, ABS certification, IP43 ingress protection, and FCC Part 15 Class A compliance. These certifications, combined with its robust marine-grade build, make it ideally suited for a wide range of applications, including marine interiors, commercial fishing vessels, tugboats, towboats, push boats, dredges, work barges, military service vessels, offshore supply vessels, ferries, passenger ships, research vessels, and luxury superyachts.
