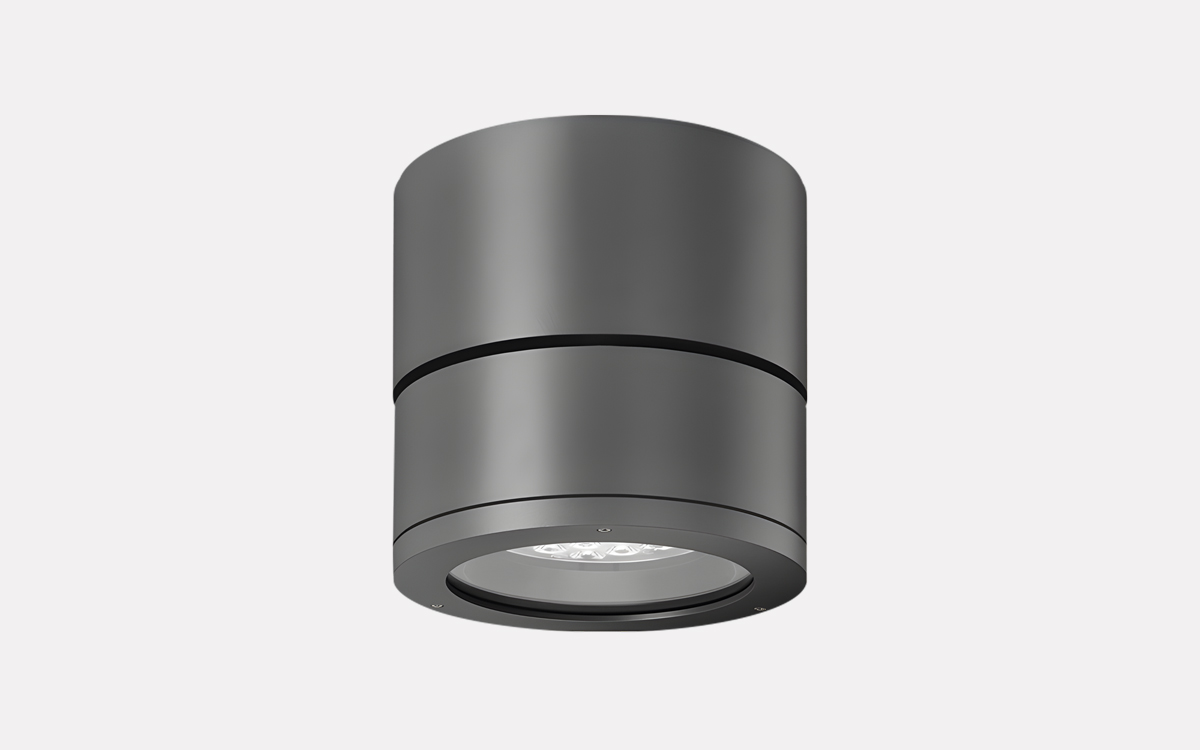

The DAC240 LED is a robust and versatile lighting solution designed for demanding environments. It features an IP65-rated housing constructed from marine-grade, die-cast aluminium alloy, offering superior durability and corrosion resistance through 5CE protection and PCS polymer-coated stainless steel hardware. The fixture is sealed with a silicone rubber gasket and equipped with a hinged safety glass lens secured by a frame with a safety catch, ensuring long-lasting protection and ease of maintenance. Two cable entries provide flexible installation options, while the integral EC electronic converter is housed in a thermally separated compartment to enhance reliability.
Optically, the DAC240 LED employs CAD-optimized optics for superior illumination and effective glare control. It incorporates the OLC® One LED Concept with a factory-installed LED circuit board, delivering consistent, high-quality light output. An optional 2200 K color temperature version is available to accommodate warmer lighting preferences, which should be specified when ordering. The luminaire supports multiple light distribution patterns including symmetric wide beam, medium beam, very narrow beam (with or without sharp cut-off), linear spread versions, and specialized wallwash optics, allowing tailored lighting effects for various architectural and functional requirements.
The DAC240 LED offers several optical accessories to further refine light control and distribution, such as flood lenses, honeycomb louvres, wallwash lenses, and linear spread lenses. These options enhance the fixture’s adaptability for different lighting designs and applications. The luminaire comes in a selection of colors, including RAL9004 Signal Black, RAL9006 White Aluminium, RAL9007 Grey Aluminium, RAL7016 Anthracite Grey, and RAL9016 Traffic White, ensuring it can blend seamlessly with diverse architectural styles.
In terms of electrical specifications, the DAC240 LED operates on a 220-240V, 50-60 Hz power supply and includes surge protection rated at 6/6 kV. It is equipped with a standard LED driver, with an optional DALI-compatible version available for advanced digital lighting control, which must be specified at the time of ordering. The fixture is rated IK07 for impact resistance, further enhancing its suitability for challenging indoor and outdoor environments.
