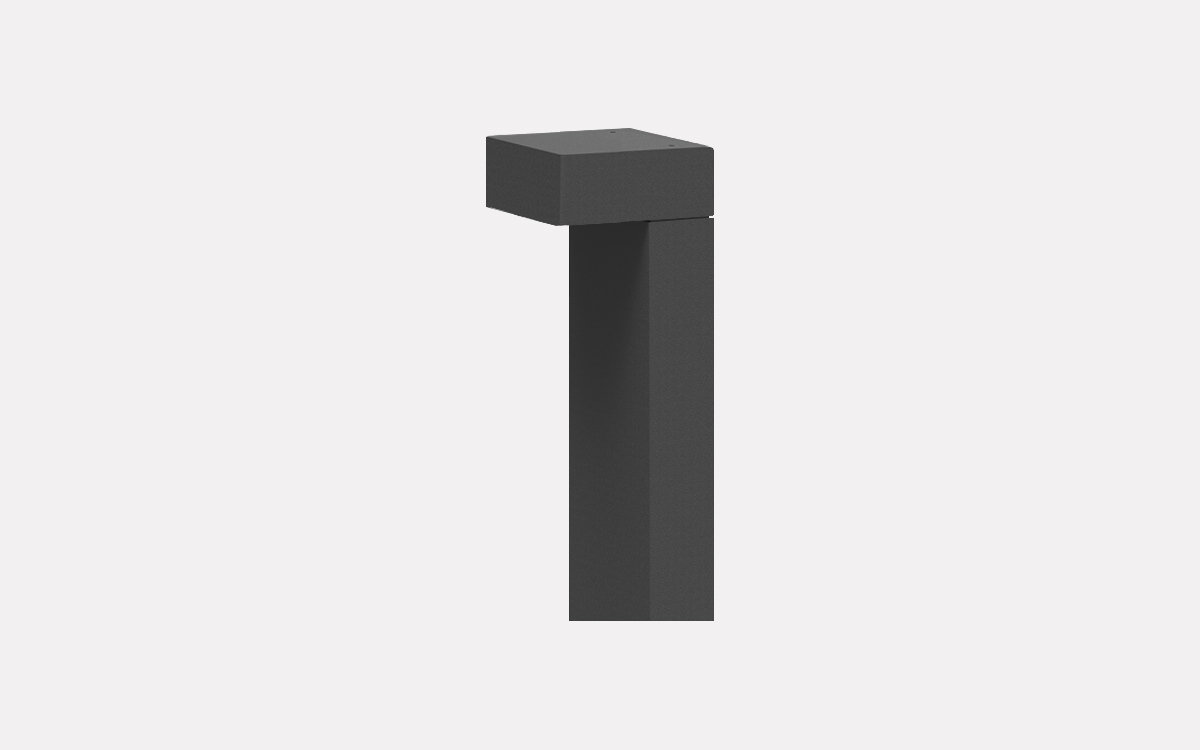

The PSY414 LED bollard light is a high-performance outdoor lighting solution designed for demanding architectural and public space applications. Engineered with marine-grade, all-aluminium construction and an internal steel reinforcement core in the pole section, it offers exceptional structural integrity. Its 5CE superior corrosion protection system, complete with PCS polymer-coated stainless steel hardware, ensures long-term durability even in harsh environments. The luminaire achieves IK10 impact protection and IP66 ingress protection, with IP67 available for specific components, making it resistant to both mechanical stress and water ingress.
The PSY414 is equipped with a factory-installed LED circuit board and an integral EC electronic converter housed in a thermally separated compartment for optimal thermal management. It features DALI control compatibility, allowing seamless integration into intelligent lighting systems. The CAD-optimized optics deliver precise beam control and superior glare reduction, while the RFC® Reflection Free Contour main lens enhances visual comfort by eliminating unwanted reflections. A silicone CCG® Controlled Compression Gasket ensures a robust seal against environmental elements.
This bollard light is pre-wired with a cable connecting box and fuse for efficient mains connection. It is supplied as a complete unit, including both the luminaire head and standpipe. For accurate photometric planning, the height of the standpipe must be specified during design. An optional 2200 K color temperature variant is available, offering warm-tone illumination when used at a maximum 1050 mA current. The system is designed to operate on a 220–240V power supply at 50–60 Hz with a power factor greater than 0.9 and includes surge protection rated at 10 kV (SP10).
