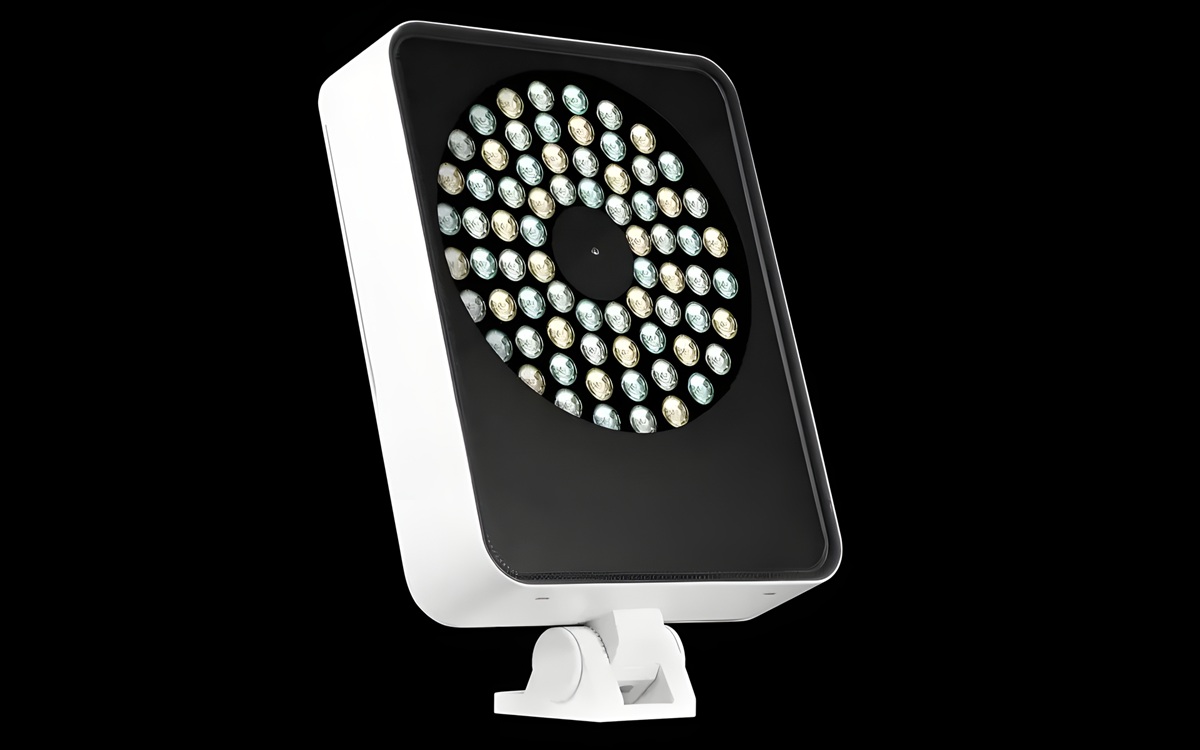

The Lumenquad Grande Dynamic White is a 100W tunable white LED projector designed to deliver both performance and elegance. With a slim 3 7/16-inch profile, free of visible wiring or hardware, it integrates effortlessly into architectural environments—indoors or out. Its tunable Dynamic White capability enables smooth color temperature variation from 2200K to 3000K or from 2700K to 6500K, giving designers the freedom to adapt lighting tones to suit the mood, time of day, or function of a space. Whether it’s creating warm, intimate scenes or crisp, vibrant environments, the Lumenquad Grande allows for seamless lighting transitions with precision and control.
At the core of its design is Lumenpulse’s next-generation LED board, engineered for optimized candela and lumen output across both narrow and wide optics. The fixture’s best-in-class performance is evident with outputs reaching up to 386,270 candelas and 4,884 lumens using an Extra Narrow 4° optic at full output (DMX/RDM control). A wide range of beam distributions—from narrow spots to asymmetric wallwash options—supports diverse applications in architectural, landscape, and urban lighting. Narrow beams focus on delivering peak candela, while wider optics emphasize overall lumen output, ensuring light is directed exactly where it's needed.
Durability is central to the Lumenquad Grande’s design. Its IP66-rated enclosure offers high resistance to dust and water, while its IK10-rated tempered glass protects against high impacts—the highest rating achievable for luminaire enclosures. The fixture's robust construction is matched by its internal innovation. Lumenpulse’s proprietary Lumencool™ dual-chamber thermal system separates the LED board and driver chamber, allowing air to flow between them. This passive cooling system not only boosts performance but also extends the fixture’s lifespan to an impressive 120,000 hours (L70 at 25°C). Additionally, the replaceable chamber design enhances sustainability by allowing individual components to be swapped instead of the entire fixture.
The Lumenquad Grande Dynamic White also excels in versatility. Mounting options include clean pole-mounted solutions, arms with optimal setbacks for wallwash optics, and an improved pivot mechanism that allows broader angle adjustment with secure locking. Accessories are seamlessly integrated and designed to match the fixture’s shape, ensuring a clean aesthetic and easy, in-field updates. From dynamic color tuning to roadway-specific optics and architectural floodlighting, the fixture adapts easily to the evolving needs of any project.
Ultimately, the Lumenquad Grande Dynamic White is more than a luminaire—it’s a fully configurable lighting tool. For every design, there’s an optic. For every height, an output. For every ambiance, a color temperature. Whether it’s used for dramatic accent lighting or subtle architectural floodlighting, the Lumenquad Grande delivers performance, reliability, and design flexibility in one of the most resilient and refined LED projectors available.
