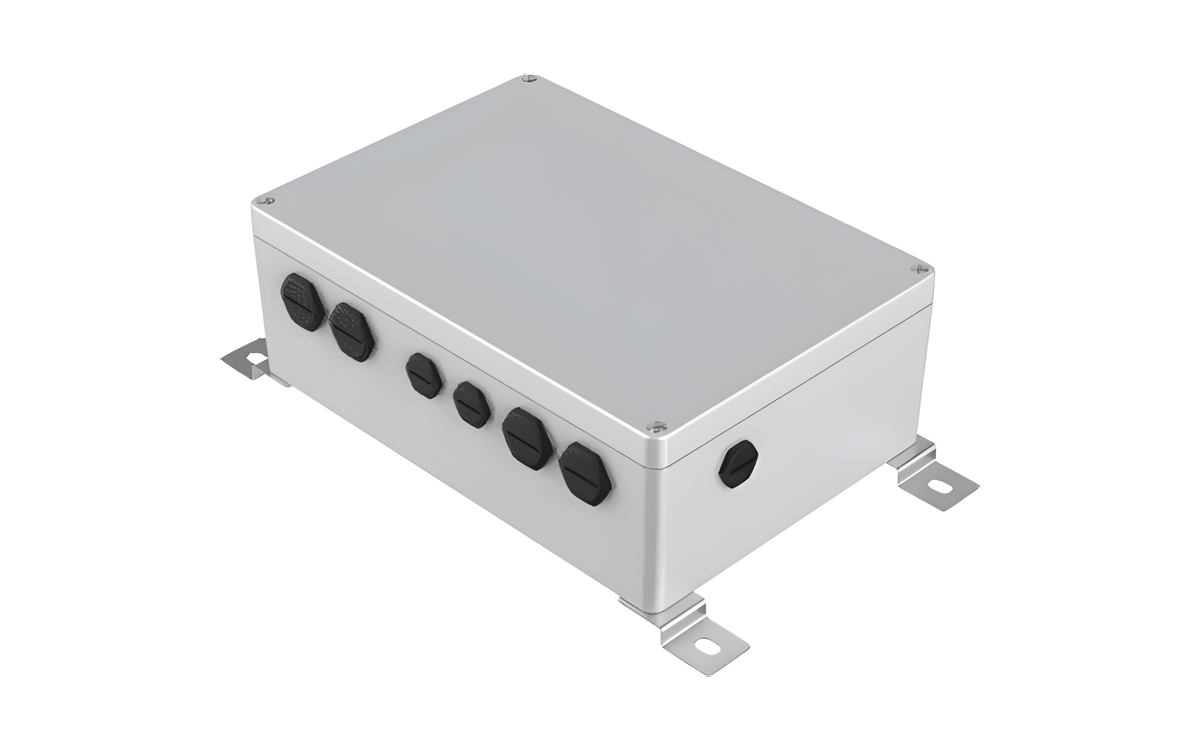

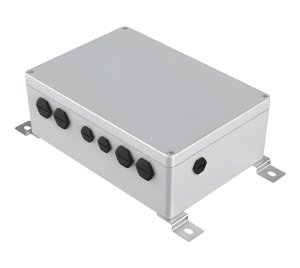

The LS6510 Power Supply from Lumascape is a purpose-built unit designed to provide both power and dimming control for pool, spa, and fountain luminaires operating up to 30V DC. This versatile solution is compatible with both 0-10V and DMX control protocols, allowing for precise dimming adjustments. Its flexibility makes it suitable for integration with a wide range of underwater luminaires, including those from other manufacturers, as well as Lumascape’s complete line of underwater lighting products.
Engineered with durability in mind, the LS6510 features a diecast aluminium housing treated with a rigorous 9-step surface preparation process, including two layers of powder coating. This construction provides superior resistance to corrosion, making it well-suited for harsh environments such as poolside or other outdoor installations where exposure to moisture and chemicals is a concern. Certified to the UL379 standard for pool, spa, and fountain power units, the LS6510 is a dependable choice for underwater lighting applications.
The LS6510 operates with a universal input voltage range of 110–240V at 50/60Hz for international markets and 120V at 50/60Hz for North America. It delivers a 24V or 30V DC output with a maximum power capacity of 240 watts and a typical efficiency of 92.5%. Connection options include line voltage input and low voltage output terminals capable of accommodating various wire sizes, with multiple threaded entries for power, control, and data connections depending on certification requirements (CE or UL/ETL).
For control, the LS6510 supports 0-10V and DMX/RDM protocols, making it suitable for driving PWM or PowerSync™ luminaires. The unit also offers configurable PWM output orientation and frequency for enhanced compatibility and fine-tuning.
Physically, the LS6510 is surface-mounted and designed to operate in ambient temperatures ranging from -40°C to 50°C (-40°F to 122°F). It carries an IP65 rating, making it suitable for dry, damp, and wet locations. At 6.0 kg (13.2 lb), the power supply is robust yet manageable for installation. Compliance with international safety standards includes UL379 and a range of CSA certifications covering submersible luminaires and spa equipment, ensuring reliability and peace of mind in demanding aquatic lighting environments.
