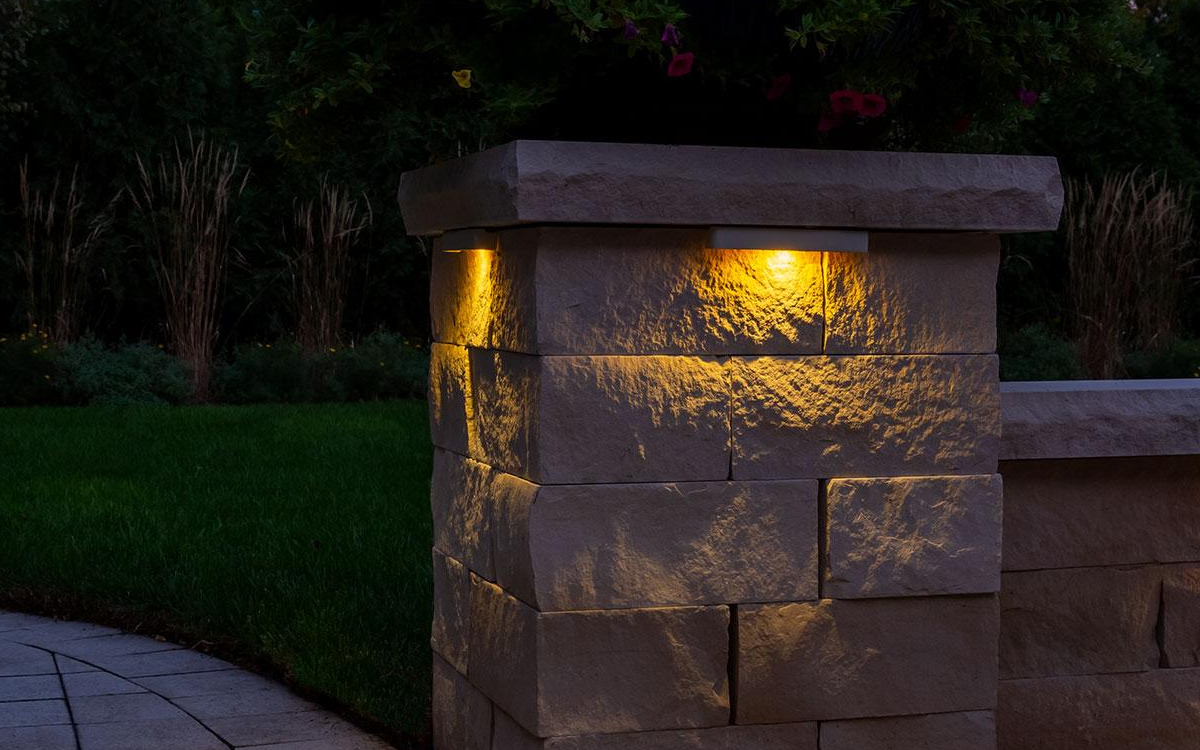

The LF LED Wall Light is a compact, durable under-the-cap hardscape lighting solution designed to deliver clean, uniform illumination in landscape and architectural settings. Engineered for versatility, it can be easily installed between a block wall and capstone or fitted under railings and existing structures, thanks to its modular bracket design. This fixture provides an elegant and unobtrusive lighting solution for retaining walls, outdoor kitchens, and other hardscape elements.
Constructed with a die-cast brass or A380 aluminum housing, the LF offers a choice of natural, powder-coated, or antiqued brass finishes, all built to withstand harsh outdoor environments. The fixture features a frosted polycarbonate lens engineered to resist stress, thermal expansion, and impact. A variety of faceplate options—including stainless steel, brass, or copper—enhance both aesthetics and durability, while stainless steel acorn nuts ensure tamper-resistance and secure positioning.
At its core, the LF incorporates Lumileds® integrated LEDs with optional RGBW capability for dynamic color changing (ZDC models). The proprietary on-board intelligent driver uses firmware-controlled temperature regulation to extend the rated LED life up to 72,000 hours for standard models and 55,000 hours for RGBW versions. The LED module, featuring gold-plated connectors and a conformal coating for maximum reliability, is field-upgradeable and replaceable. A built-in MoistureBlock™ socket prevents moisture intrusion, protecting internal components.
The LF supports input voltages of 10–15V AC/DC and operates at just 2.2 VA for standard models and 4.3 VA for color-changing models, offering excellent energy efficiency with efficacy ratings of up to 52 lumens per watt. It emits a soft, warm 2700K white light or vibrant full-spectrum RGBW colors, depending on the model. The fixture is compatible with Luxor® technology, enabling zoning, dimming in 1% increments, or color selection from a palette of 30,000 hues when equipped with ZD or ZDC capabilities. It supports both phase (trailing edge) and PWM dimming methods for flexible control options.
Designed exclusively for downward-facing installation, the LF is IES Type V classified, ideal for wide and even light distribution. Weighing only 1.0 lb (0.5 kg), the fixture is compact yet robust, with an ambient operating temperature range from 0°F to 140°F (-18°C to 60°C). The LF LED Wall Light is a sophisticated and highly adaptable choice for seamless integration into modern hardscape lighting designs.
