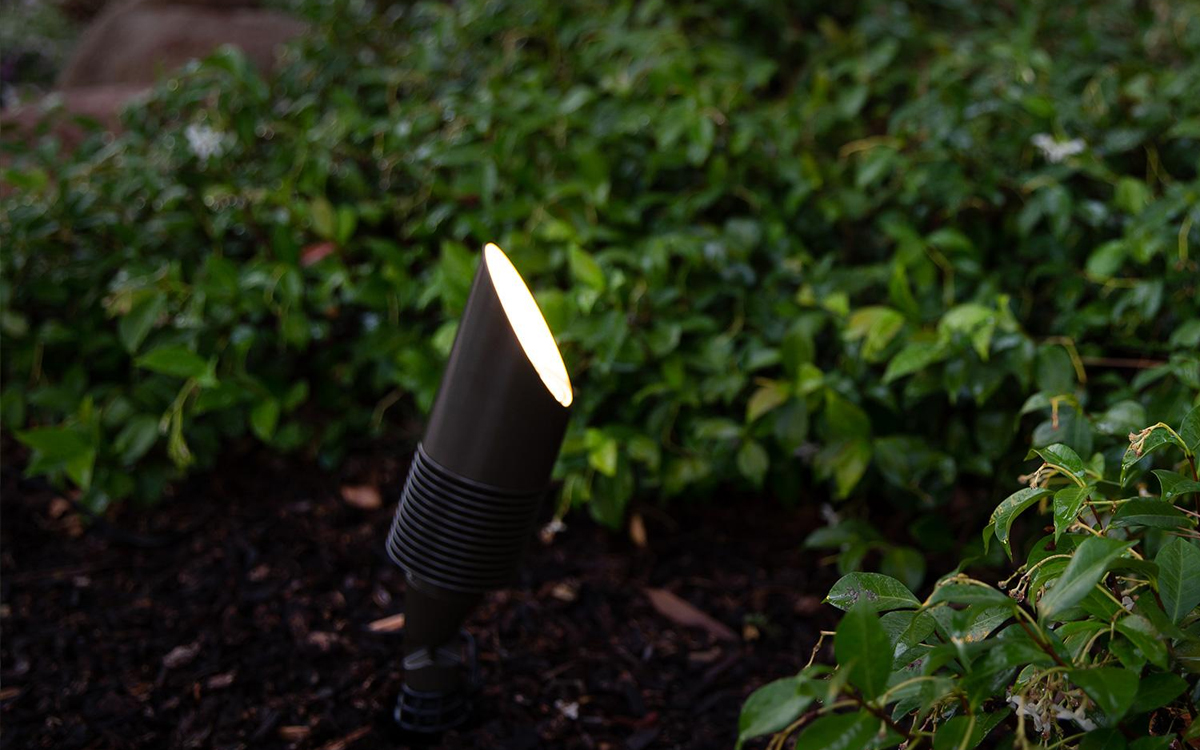

The XA-70 Grande Accent Light, part of the new Exa Collection, delivers high-output performance combined with the simplicity of low-voltage operation. Offering a powerful light output of up to 1,000 lumens, this accent light integrates advanced Cree LED technology to provide exceptional illumination. It features three precise beam angle options—20°, 40°, and 60°—and two correlated color temperatures, 2,700K and 3,000K, giving users versatility in lighting design. With multiple mounting options including ground stake and Mini Junction Box (MJB), the XA-70 offers flexible installation to meet various application needs. Its patent-pending adjustable body, robust mechanical seals, and IP66/IP67 rating ensure the fixture is both durable and adaptable, making it suitable for harsh outdoor environments.
Constructed from die-cast A380 aluminum with a two-layer anodization and a TGIC powder-coat finish, the XA-70 provides superior protection against corrosion and weathering, tested to ASTM standards. The housing includes stainless steel hardware and a die-cast zinc/aluminum alloy knuckle for reliable durability. The fixture uses a nonreplaceable Molex connector equipped with Moisture Block™ technology, preventing moisture from infiltrating sealed areas to enhance longevity. The integrated LED module features gold-plated connectors and a potted driver, ensuring maximum reliability and corrosion resistance. Its proprietary onboard intelligent driver uses firmware-controlled temperature regulation to optimize LED life, which is rated for a minimum of 72,000 hours for H1 LEDs and 55,000 hours for ZDC LEDs.
Wiring consists of 18 AWG SPT-1W cable rated for 220°F (105°C) and 300V, with a 10-foot length measured from the light aperture. The fixture operates on a low input voltage of 10 to 15 VAC/DC for white light versions and 11 to 15 VAC for RGBW (ZDC) models, requiring a remote transformer that is specified separately. Optics such as beam angle and color temperature are defined by the part number and are serviceable with separately ordered components. The tempered glass lens provides shock resistance and high tolerance for thermal expansion and stress, protecting the light source.
Control options include Luxor® Technology compatibility, allowing the XA-70 to be zoned and dimmed in up to 250 groups with 1% incremental dimming. The ZD option supports zoning and dimming, while the ZDC option adds full RGBW color control with access to 30,000 colors. The fixture’s die-cast, threaded aluminum shield features a 45° cutoff angle with an O-ring seal to minimize glare. Installation flexibility is enhanced by compress-and-lock adjustability that prevents slip after installation and offers vertical alignment increments of 9° over a 220° range. Designed for installation in both upward and downward orientations, the XA-70 meets international compliance standards (IEC 60598-1 and IEC 60598-2-4 when selecting the "e" version).
Weighing 3.5 pounds (1.6 kg), this fixture is manufactured in an ISO 9001:2015 certified facility and backed by a 10-year limited warranty. Its sustainability features include the use of recycled materials where possible without compromising performance, ensuring energy efficiency, long lifespan, and durability. Dimming options include compatibility with Luxor control systems or trailing-edge (reverse phase-cut) dimmers, depending on transformer specifications, and the fixture is rated NEMA Type 4 Horizontal by 4 Vertical for ingress protection. Overall, the XA-70 Grande Accent Light provides a versatile, durable, and highly efficient lighting solution for architectural and landscape accent lighting applications.
