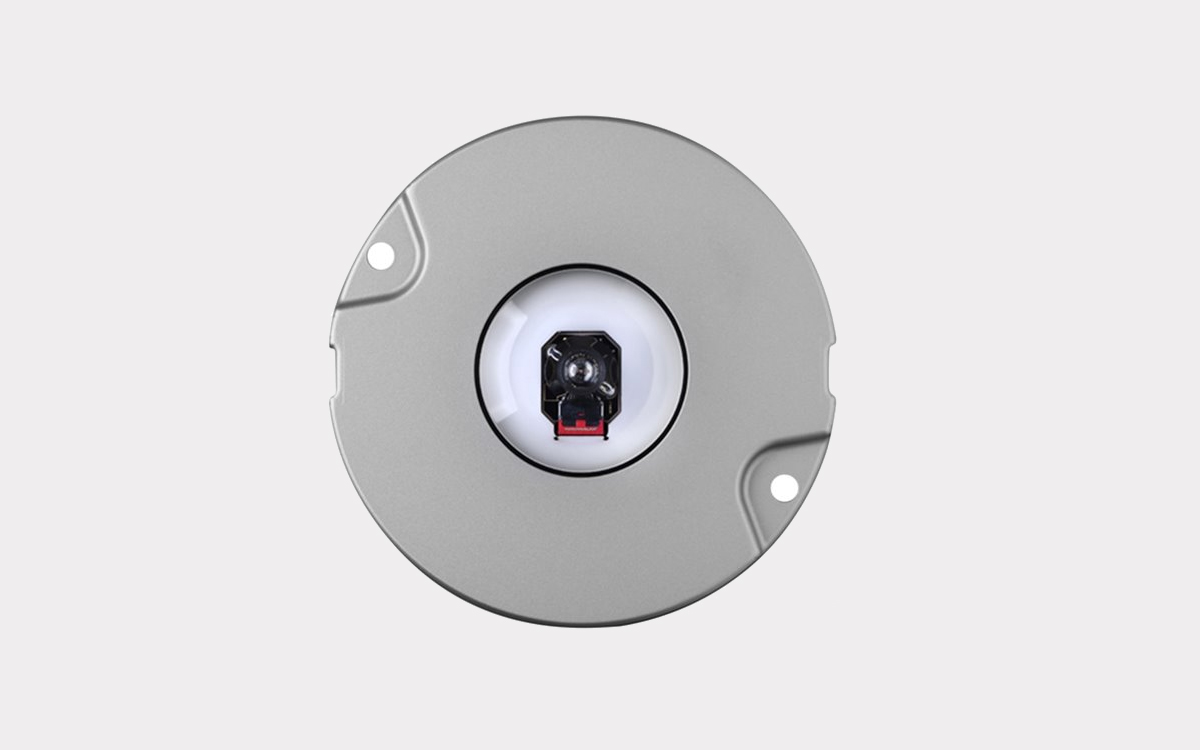

The TKH Inset Taxiway Edge Omnidirectional Light Type TXE is a high-performance, low-profile LED lighting solution specifically designed for taxiway edge applications in modern airfield environments. Engineered for flush mounting, the fixture features an 8-inch outer diameter with only 4 millimeters of height above the surface, ensuring minimal interference with aircraft movement. It extends 35 millimeters below the flange and incorporates a Ø 80 mm light outlet, delivering uniform and omnidirectional illumination for enhanced ground-level visibility.
Built to withstand the rigors of continuous outdoor use, the TXE light is rated IP68, providing complete protection against dust and water ingress. Its rugged construction ensures an overall operational lifetime exceeding 20 years, while the LED light source delivers a useful lamp life of up to 50,000 hours, offering long-term reliability with minimal maintenance. The light meets chromaticity specifications in compliance with ICAO Annex 14, Volume 1 and FAA AC 150/5345-46E, making it suitable for use at both international and regional airports.
Operating on a nominal 6.6-amp circuit with full dimming capability from 0 to 100%, the TXE maintains excellent energy efficiency. At full power, it consumes just 8 watts and functions within a voltage range of 0.9 volts (at 0.1% output) to 1.2 volts (at 100% output), achieving a power factor greater than 95%. This combination of low power draw and high performance supports sustainable airfield operations. The light is also engineered to perform reliably across extreme temperatures, from -55°C (-67°F) to +85°C (+185°F), making it ideal for installation in diverse climate zones.
For enhanced functionality and smarter control, the TXE is equipped with an internal serial interface that enables real-time diagnostics and parameter configuration. Optional features include a fail/open function for improved operational safety, as well as integrated single lamp control when used with CEDD® technology.
CEDD® (Contactless Energy and Data Distribution) is an innovative airfield ground lighting system that combines power and data transmission in a single cable. Using inductive coupling, CEDD® delivers energy and communication signals without requiring direct electrical contact, allowing lights to be safely and easily installed or replaced without disrupting the system. This smart, safe, and sustainable approach to airfield lighting infrastructure significantly simplifies maintenance, enhances safety, and reduces installation time.
Together, the TKH Type TXE and CEDD® offer a future-ready solution for airfield operators seeking efficient, compliant, and intelligent taxiway edge lighting systems.
