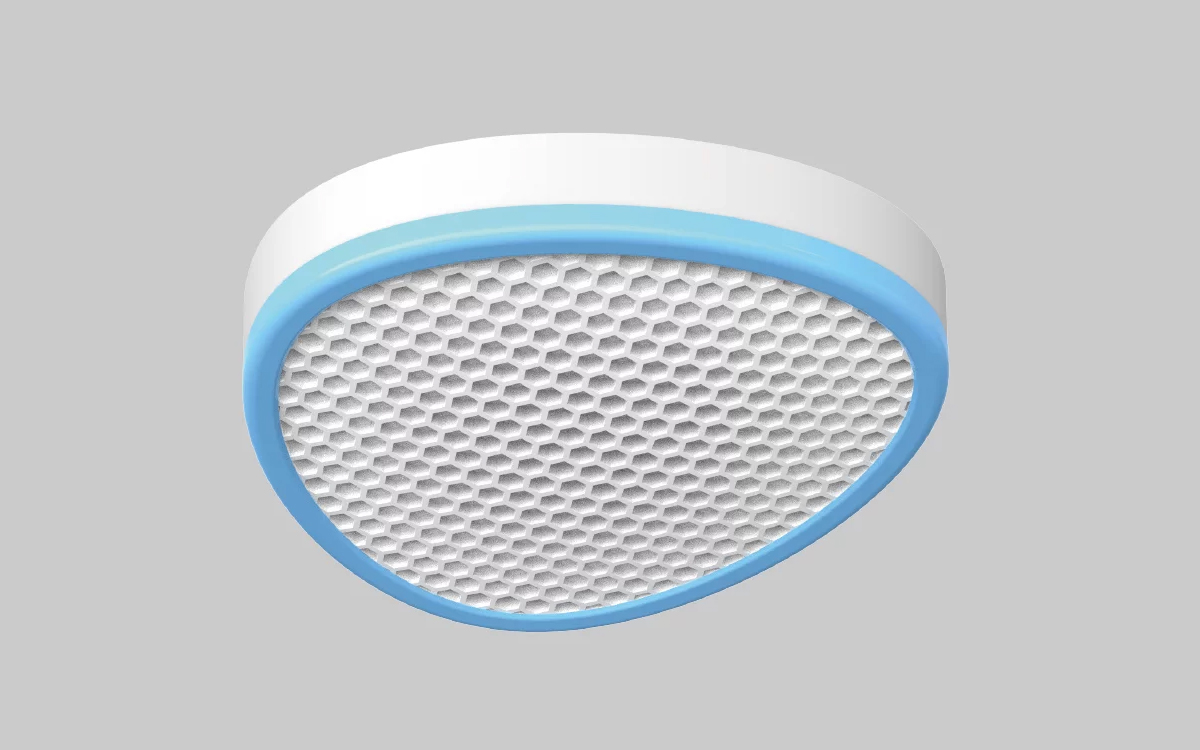

The EXC-JY05 Kindergarten Ceiling Light is a direct-lit, one-piece lighting fixture specifically designed to provide safe, uniform, and visually comfortable illumination for early childhood environments. Its construction features a durable metal backplate paired with an injection-molded frame, ensuring effective dust and moisture resistance to support longevity in various educational settings.
At the core of its optical performance is a high-quality PS diffusion plate with a 75% haze rating, delivering bright, consistent light while eliminating glare. The luminaire provides a maintained average desk illuminance above 420lx with a high uniformity ratio of 0.8, making it ideal for tasks that require visual clarity. The integrated 1537 LED chip package offers high luminous efficacy with low energy consumption and minimal light decay—maintaining over 97.9% of its luminous flux even after 10,000 hours of use. Importantly, it is rated RG0, indicating no blue light hazard, and it emits light with a CRI above 95 for excellent color fidelity.
The light source features wide-angle lenses on each LED, producing a smooth and shadow-free light surface. It also operates flicker-free with light output waveform fluctuation depth kept below 1%, supporting visual comfort and eye protection.
For installation flexibility, the EXC-JY05 uses an adjustable mounting bracket system that secures the backplate and boom, allowing for both pendant and ceiling-mounted configurations. This design simplifies installation and ensures a stable, secure connection. With an IP40 rating, this 28W fixture operates on an AC220–240V power supply, offering a power factor ≥0.95 and luminous efficacy exceeding 85 lm/W. It delivers a minimum luminous flux of 2500 lumens at a color temperature of 4000K ±200K and within a 4 SDCM color tolerance. With a compact profile measuring 500x400x65mm and a weight of 2.29 kg, the EXC-JY05 is a high-performance lighting solution that balances safety, efficiency, and user-friendly installation for kindergarten classrooms and learning spaces.
