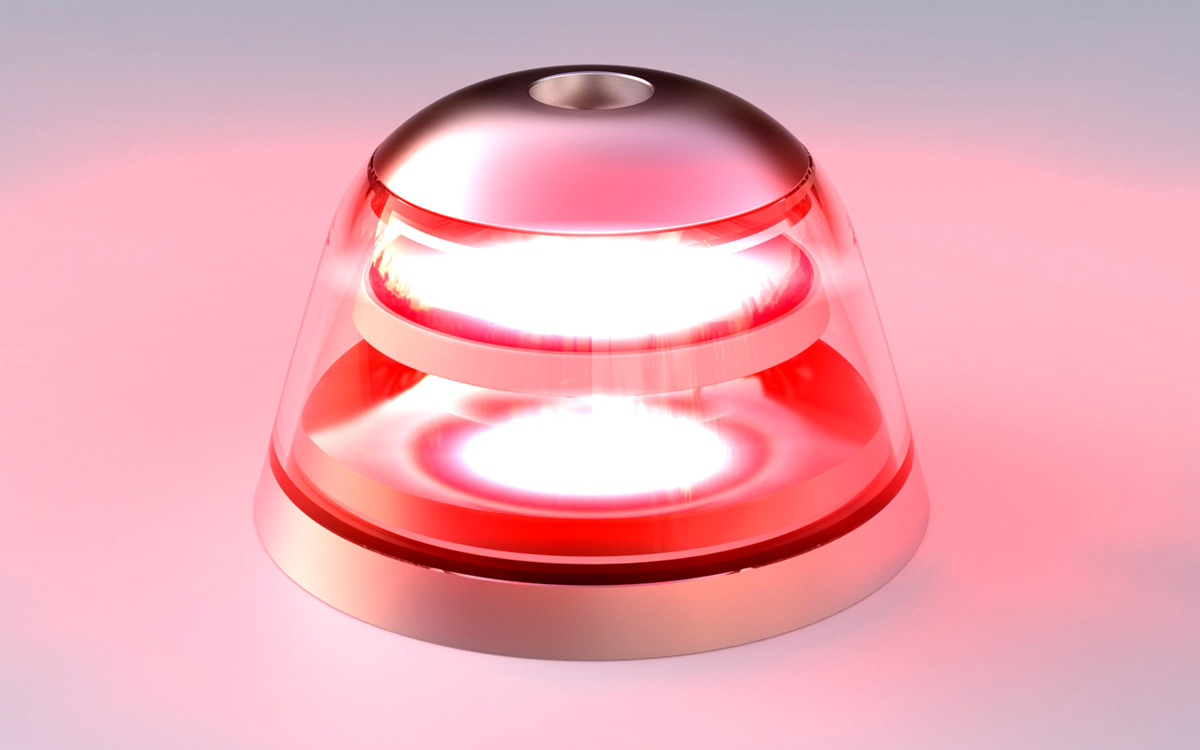

The RedBaron NXT is a highly efficient and compact LED anti-collision light that combines exceptional performance with value pricing, offering no compromises in quality or standards compared to other economy-level lights. Standing at only 40.8 millimeters (1.605 inches) in height, it features Aveo’s exclusive, advanced optics and chrome reflector system paired with powerful LED management circuitry. This combination delivers unmatched power and features while maintaining the industry’s renowned lowest-drag aerodynamic profile. Its design ensures the RedBaron NXT is lower, narrower, shorter, and much lighter than other lights in its class, making it an excellent choice for aircraft requiring high performance with minimal size and weight impact.
Measuring 64 millimeters in length and width, and 40.8 millimeters in height (2.52 by 2.52 by 1.605 inches), the RedBaron NXT weighs just 90 grams (3.17 ounces), making it lightweight and easy to mount on various aircraft platforms. It operates across a broad voltage range of 9 to 36 volts DC, supporting both red and white strobe modes. The red strobe draws 4.24 amps at 14 volts and 1.76 amps at 28 volts, with power consumption reaching 59.4 watts at 14 volts and 49.3 watts at 28 volts. The white strobe requires slightly more current, drawing 4.88 amps at 14 volts and 2.00 amps at 28 volts, corresponding to 68.3 watts at 14 volts and 56.0 watts at 28 volts. The strobe light operates at a repetition rate of 50 cycles per minute, providing clear and reliable anti-collision signaling.
Designed to withstand harsh environmental conditions, the RedBaron NXT functions effectively in extreme ambient temperatures ranging from -55°C to +85°C (-55°F to +185°F). It incorporates robust electrical protections, including overheat protection activated at 85°C (185°F), reverse polarity protection to prevent damage from incorrect wiring, and transient voltage tolerance up to 80 volts on both polarities. Additionally, it includes lockout features for under-voltage protection at 7.8 volts and over-voltage protection at 38 volts, ensuring stable and safe operation under fluctuating power conditions. The light is built to be waterproof, dustproof, and vibration-proof, guaranteeing long-term durability and reliability in demanding aviation and industrial environments.
