The PARADE LB-W series offers a powerful range of linear LED luminaires designed for high-performance wall grazing in architectural applications. These fixtures are specifically optimized for close-up installations, delivering a uniformly distributed, high-luminance white light output that enhances the visibility and texture of large-scale façades and architectural features. Built with robust IP67-rated housings and integrated power supplies, the PARADE LB-W units are ideal for outdoor installations that demand durability, minimal maintenance, and easy setup. They are particularly well-suited for projects that do not require advanced DMX or RDM control, offering DALI and ON-OFF options instead.
Each model in the series is fitted with premium high-brightness white LEDs, available in 4000K natural white, as well as 3000K or 2700K warm white variants. Monochrome versions are also available upon request. The LED configurations produce exceptional visual clarity and color accuracy across a broad range of applications. A wide variety of beam angles—including spot, narrow, medium, wide, extra wide, elliptical, elliptical wide, and wall wash—ensures versatile optical performance tailored to specific project requirements.
The PARADE LB-1 W, featuring six high-power LEDs, delivers a maximum output of 2,212 lumens at 111 lm/W, with a compact footprint measuring 318x70x76 mm. It consumes just 20 watts and is protected to IK09 impact resistance standards.

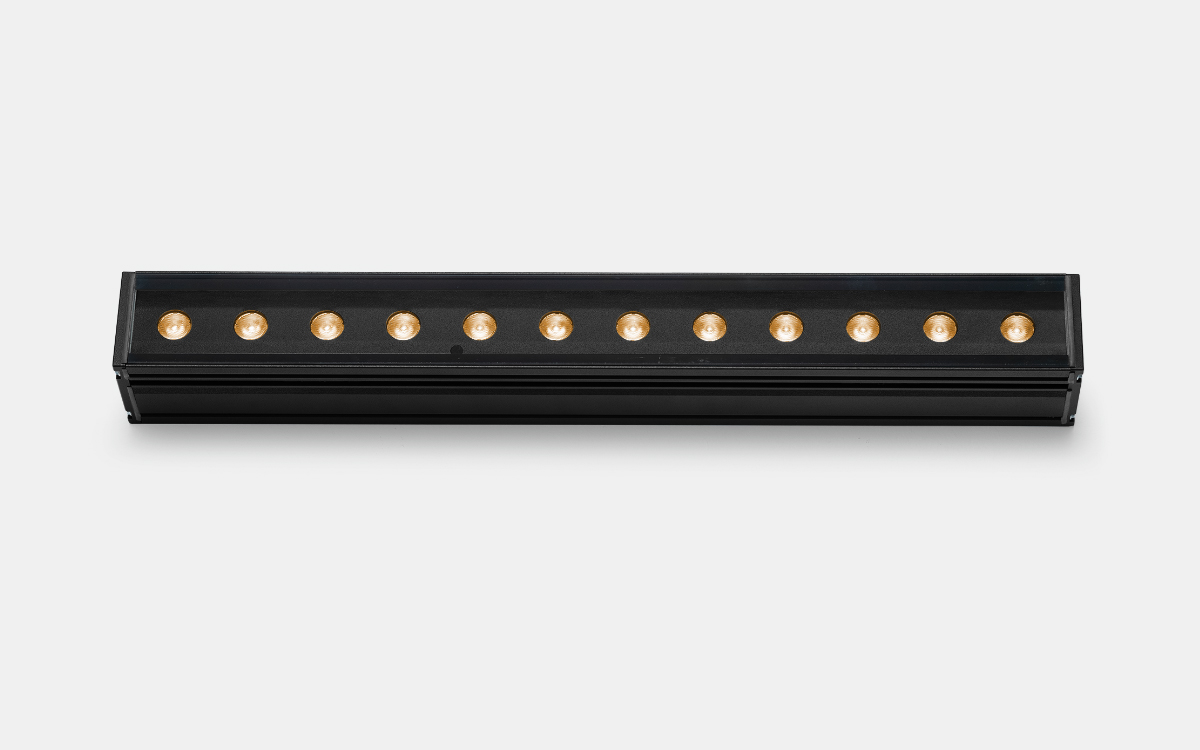

The PARADE LB-2 W doubles the light source with twelve LEDs, offering a powerful 4,424 lumens while maintaining the same efficiency of 111 lm/W. This model measures 610x70x76 mm and operates at 40 watts, rated at IK10 for impact protection.
At the top of the range, the PARADE LB-3 W features eighteen high-output LEDs that provide an impressive 6,442 lumens. Also delivering 111 lm/W efficiency, this version spans 914x70x76 mm and uses 58 watts of power. It, too, is rated IK09, ensuring reliable resistance to physical impact in demanding environments.
All PARADE LB-W models operate on 120–277VAC, 50–60 Hz input voltage and come equipped with onboard power supply units. With sleek design options, various optical packages, and efficient white light performance, the PARADE LB-W series is a highly adaptable lighting solution for sophisticated architectural illumination.
