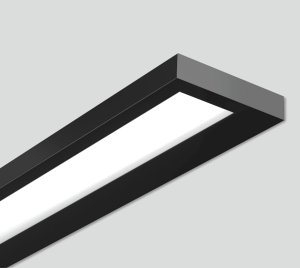

The Zen Square Wall luminaire from Axis Lighting integrates cutting-edge optical and mechanical engineering to deliver efficient, visually comfortable illumination with a refined architectural aesthetic. At its core is a high-precision light guide made of PMMA material, which enables the controlled distribution of light in all three dimensions. This ensures consistent illumination across both vertical and horizontal planes within the space. The patented light guide design incorporates molecular optics and precisely coupled optical components, resulting in a high-efficiency fixture. In-plane light mixing enhances color uniformity while the diffuse light-emitting surface eliminates hotspots and “head lighting” from LEDs.
Engineered with long-term serviceability in mind, Zen Square Wall features field-replaceable and upgradeable LED light engines. The future-proof design allows quick and easy access to internal components from above the luminaire using quick-connectors and a screwdriver, ensuring that the system remains relevant and functional for years. With a minimum CRI of 80 or 90 and available CCTs of 3000K, 3500K, and 4000K, Zen Square Wall delivers exceptional color consistency within a tight 3-step MacAdam ellipse. The LEDs boast a minimum L70 life of 50,000 hours at 85% lumen maintenance in 25°C environments, verified through IES LM-80 testing standards.

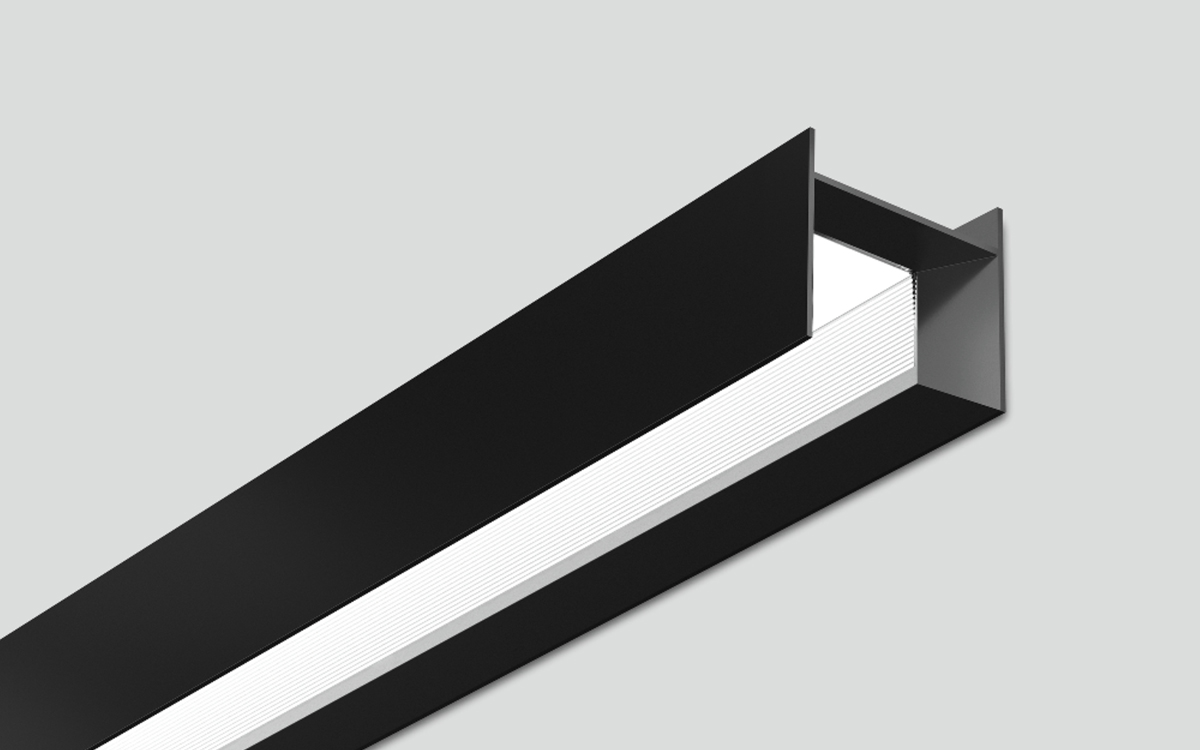

Constructed for durability and performance, the fixture features an extruded aluminum housing that acts as a heat sink, supporting optimal thermal management and longevity. The end caps and joiners are made from robust die-cast aluminum, while interior brackets are formed from zintec steel. The frosted acrylic microgroove lens delivers soft, uniform illumination. All materials and finishes are chosen for durability and visual refinement, with mounting brackets constructed from cold-rolled, painted 16-gauge sheet steel.
Zen Square Wall accommodates multiple lighting control and driver protocols, including DALI (Digital Addressable Lighting Interface), Power over Ethernet (POE), MOLEX, IGOR, and SMARTENGINE systems, all UL2108 certified for integral or remote driver configurations. It is compatible with universal voltage (120–277 V) and offers options for emergency battery packs or circuits, providing flexibility for code compliance and project specifications.
Available in direct and direct/indirect lighting distributions, the Zen Square Wall delivers up to 900 lumens per foot in direct mode and up to 1200 lumens per foot in indirect mode, with system efficacy reaching up to 125 lm/W. The luminaire comes in various standard lengths, including 2', 3', 4', 5', 6', 7', 8', and 12', and can also be configured for continuous system runs. Rated for dry and damp indoor locations, Zen Square Wall operates reliably in ambient temperatures ranging from 0°C to 40°C (32°F to 104°F), making it ideal for commercial and institutional applications requiring both performance and aesthetic precision.
