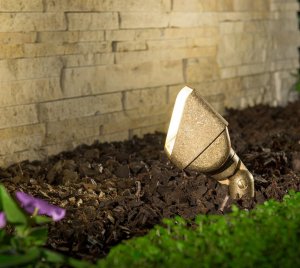

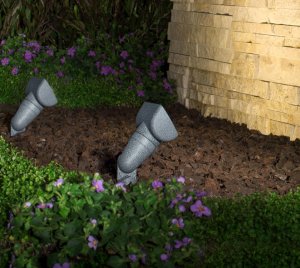

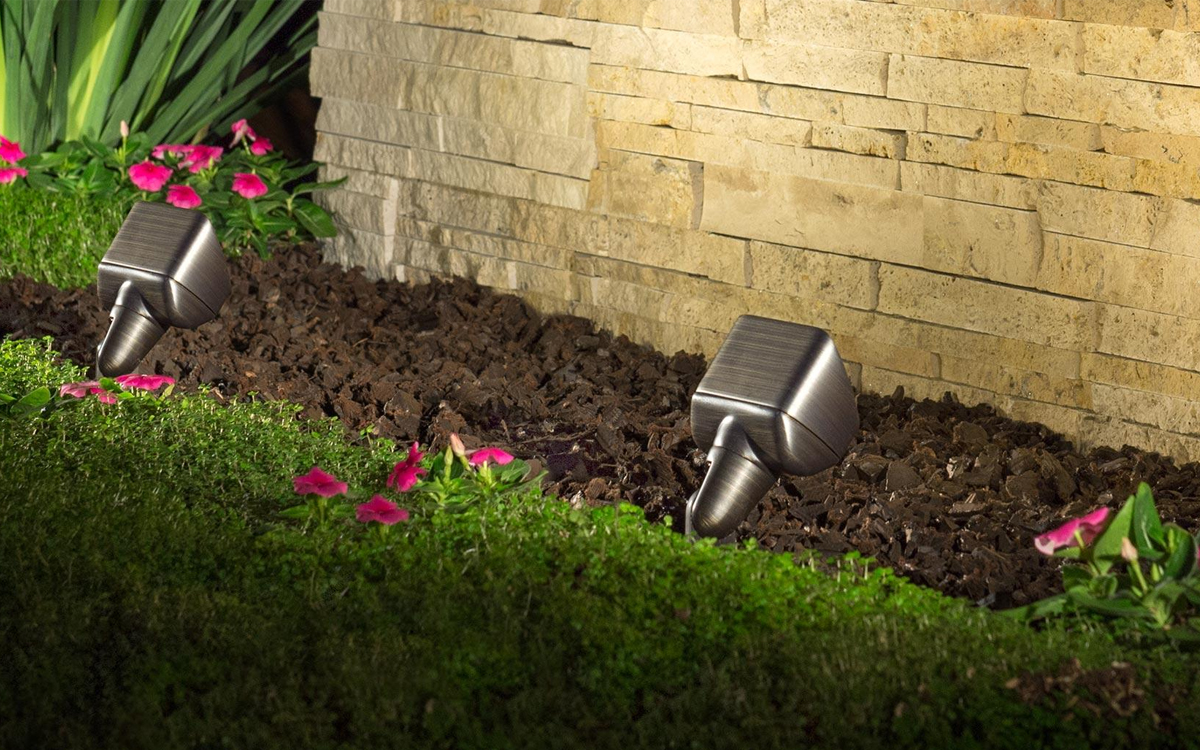

The PB LED uplight is a compact yet powerful wall wash lighting solution designed for a variety of architectural and landscape applications. Available in configurations with one or three LEDs and ZDC options, this fixture offers a wider beam angle to cover larger structures and spaces with elegant illumination. Despite its petite size, the PB is engineered with solid construction, combining durable materials such as die-cast aluminum or brass with finishes that include natural brass and antique options. Its robust design is complemented by two-layer marine-grade anodization and powder coat finishes, ensuring excellent resistance to outdoor weathering.
Equipped with integrated Lumileds® LEDs, the PB features ProAim™ adjustability for precise aiming and is compatible with Luxor® technology for advanced lighting control. The fixture supports both phase and PWM dimming and operates on a low input voltage of 10 to 15 volts, making it highly efficient. It delivers high-quality light with a Color Rendering Index (CRI) of 83 to 84, and its LEDs have an average useful life of 72,000 hours (L70). The PB also offers multiple lumen outputs depending on the LED configuration, providing flexibility for different lighting needs.
Materials and build quality are prioritized in the PB design, with a die-cast C360 brass housing, shroud, and knuckle assembly secured with brass hardware. The socket incorporates MoistureBlock™ technology, preventing moisture ingress and enhancing reliability. The integrated LED module includes gold-plated connectors and a conformal coating to maximize corrosion resistance and longevity. Its proprietary onboard driver uses firmware-controlled temperature regulation to optimize LED performance and life. The fixture’s optics include polycarbonate color temperature adjustment lenses with options spanning from 2,700K (preinstalled) to 5,200K, all field-serviceable for versatile lighting effects.
The PB features a tempered frosted glass lens, providing excellent shock resistance and tolerance to thermal expansion and stress. The brass shroud includes a 30° cutoff for effective glare control, while the knuckle offers 220° vertical adjustability in 9° increments and a compress-and-lock feature to prevent slip after installation. The included ProAim ratcheting ABS spike allows 360° horizontal rotation in 10° increments. Installation is designed for upward-facing orientation only, ensuring optimal light distribution.
Finishing options include a natural brass look or antique finishes with brushed or tumbled effects, sealed with a clear TGIC powder coat layer for durability. The PB weighs 2.4 pounds (1.1 kg) and operates in ambient temperatures ranging from 0°F to 140°F (-18°C to 60°C). For enhanced control, the ZD and ZDC versions integrate Luxor technology, enabling zoning of up to 250 groups with precise dimming and up to 30,000 colors with RGBW LEDs. The fixture is wildlife-friendly with amber LED options and backed by a 10-year limited warranty.
Sustainability is a core aspect of the PB’s design and manufacturing, using recycled materials wherever possible without compromising performance or durability. The product is manufactured in an ISO 9001:2015 certified facility and meets international compliance standards IEC 60598-1 and IEC 60598-2-7 when used with compatible mounts or selected versions, making it a reliable, high-quality choice for architectural and landscape lighting projects.
