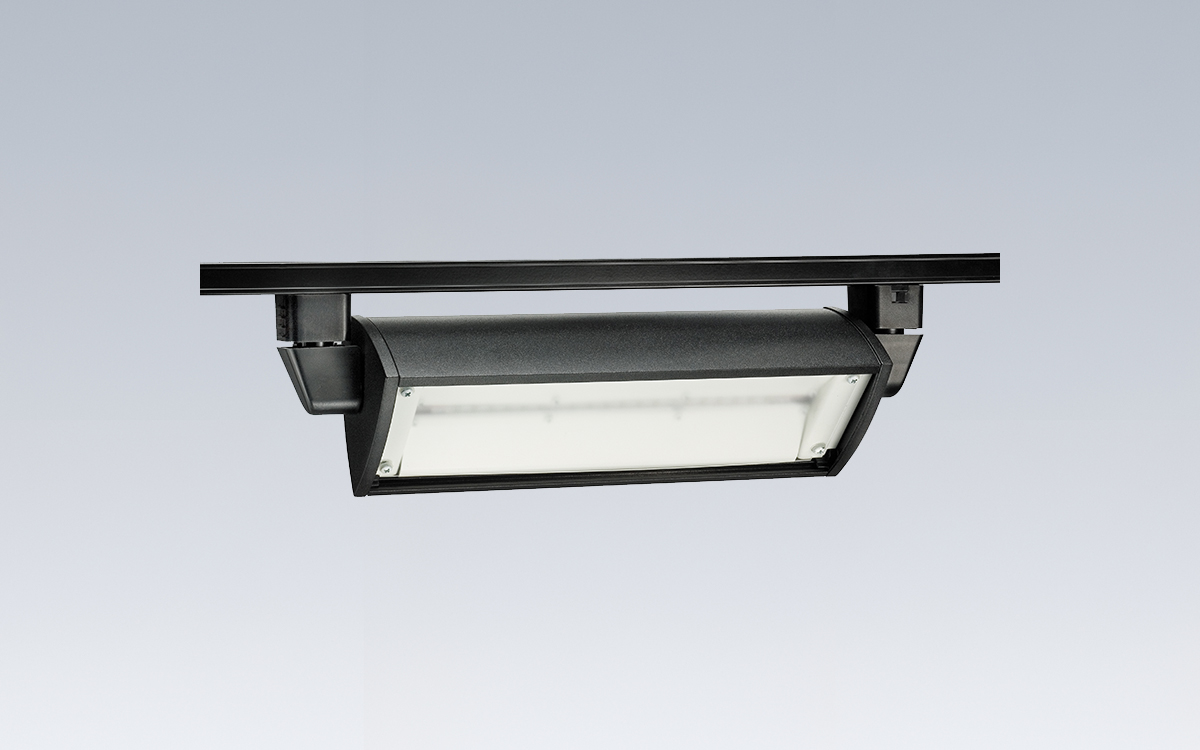

The T256L Series track-mounted LED wall wash and flood light combines power, uniformity, and efficiency in a sleek, low-profile design that integrates seamlessly with any track installation. Consuming only 35 watts, the T256L delivers up to 2,223 lumens, achieving an efficacy of up to 64 lumens per watt while consuming significantly less energy than comparable ceramic metal halide (CMH) fixtures. Its advanced thermal management system ensures a long, maintenance-free service life of 50,000 hours at 70% lumen maintenance, making it an ideal solution for applications demanding both longevity and consistent performance. The fixture is available in four color temperatures—2700K, 3000K, 3500K, and 4000K—with a minimum CRI of 80 to ensure accurate color rendering and pleasant visual output across retail, commercial, and gallery environments.
Constructed with a robust extruded aluminum housing and die-cast end caps, the T256L combines durability with refined aesthetics. Its concealed, custom-designed heat sink efficiently dissipates heat while maintaining a slim form factor, ensuring sustained optical and mechanical integrity throughout its service life. The housing is finished with a rich, textured paint available in white, black, or silver to complement a variety of architectural settings. Inside, high-reliability Nichia LEDs ensure superior performance, color consistency, and quality across all available CCT options, with optional 90 CRI versions available upon request for applications requiring heightened color accuracy.
The integrated solid-state electronic driver is concealed within the rear housing to minimize the overall fixture footprint. Fully compliant with Class 2 electrical standards and FCC Part 15 Class B requirements, the driver incorporates integral overcurrent and short-circuit protection for added safety and reliability. The T256L supports smooth, flicker-free dimming when paired with high-quality reverse-phase electronic low-voltage (ELV) dimmers approved by Juno, ensuring precise control of light levels to suit diverse ambient conditions.
Optical performance is further enhanced by a protective lens that shields the LED and internal components from dust and contaminants while maintaining beam uniformity through a matte inner surface that softens and diffuses the output. The fixture provides 90 degrees of vertical aiming capability, offering flexibility for both wall wash and floodlighting applications.
The T256L attaches securely to the track using two standard adapters, one of which includes electrical contacts to ensure stable power delivery. The Juno Universal Trac Adapter allows compatibility with Trac-Master one- or two-circuit tracks, Trac-Lites tracks, monopoints, and specialized mountings. It is also UL Recognized for use with ConTech LT Series track. The adapter includes copper alloy contacts for precise spring action, a true positive electrical ground, and a spring-loaded positive latch for secure attachment. A built-in on/off switch provides convenient fixture-level control, and embossed polarity arrows ensure proper installation orientation.
Alternate adapters are available for specific system requirements. The TEK/HTEK adapter is compatible with Juno TEK and HTEK track systems and includes an integral rotary circuit selector for switching between circuits, along with a built-in on/off switch for servicing convenience. The HTYPE adapter supports systems using H-type tracks, including Lithonia LTS Decorative Track (excluding LT type), and provides two-position power contact for two-circuit operation.
The T256L LED wall wash/flood fixture is UL and C-UL Listed, assembled in the U.S.A., and union made. It qualifies as a domestic end product under the Buy American Act (BAA) and is compliant with the Build America, Buy America (BABA) Act, as well as DOT Buy America regulations—making it suitable for government and federally funded projects. Combining robust construction, optical precision, and long-lasting LED technology, the T256L represents a refined and reliable lighting solution for professional architectural, retail, and commercial applications.
