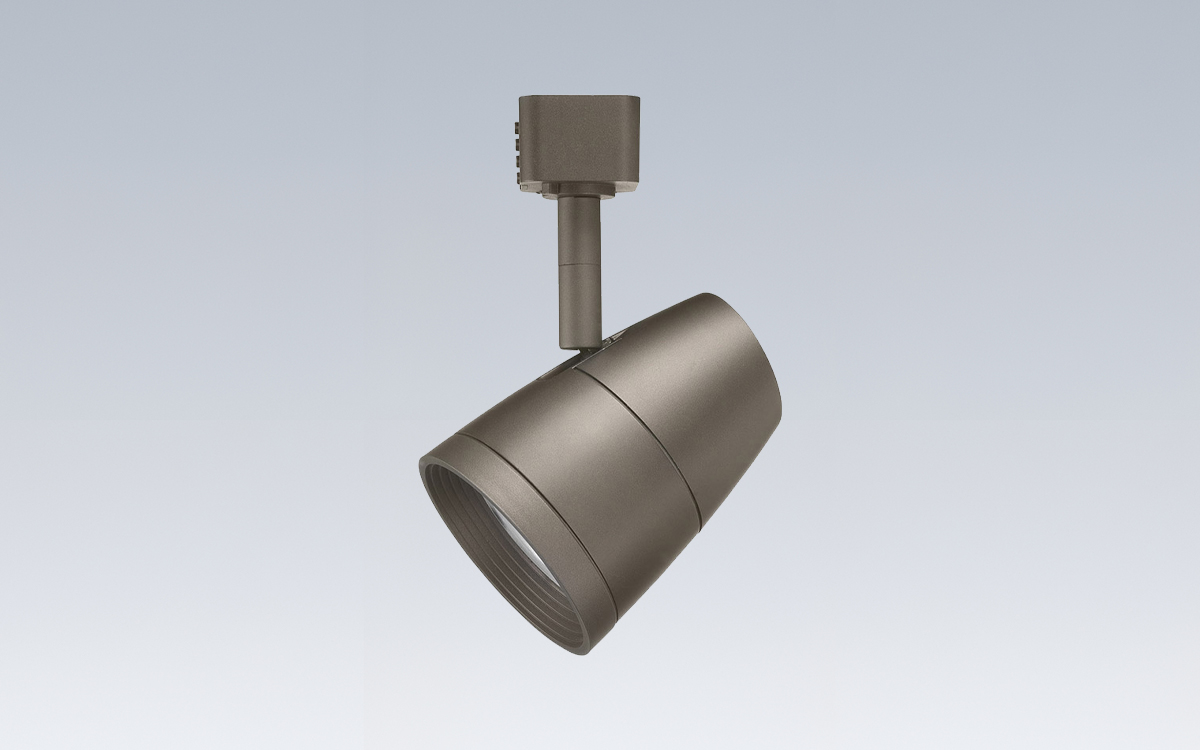

The LED track lighting heads in the R600L Series offer a stylish yet economical solution for accent and general track lighting, combining timeless aesthetics with versatile performance. These fixtures approximate the light output and distribution of 50W MR16 halogen lamps while utilizing only about 20% of the energy, making them an efficient choice for a wide range of applications. Available in 2700K, 3000K, 3500K, and 4000K color temperatures, the standard versions maintain a minimum 80 CRI, with optional high CRI configurations providing 90 or 97 CRI for enhanced color rendering. The fixtures deliver up to 850 lumens from a 9.5W LED light source and are compatible with Juno Trac-Lites and Trac-Master track systems, as well as system components from multiple track types.
Construction of the R600L Series emphasizes durability and thermal efficiency. The die-cast aluminum housing and heat sink provide exceptional thermal management, maintaining 70% lumen output at 50,000 hours. The simple, timeless design is available in black, bronze, silver, and white finishes, allowing the fixtures to integrate seamlessly into a variety of interior decors. The high-performance LED array provides consistent color quality and reliability, with chromaticity maintained within a three-step MacAdam ellipse.
The LED driver is integrated within the fixture housing behind the LED array, minimizing the overall footprint while ensuring quiet operation. Thermal optimization is achieved through an insulating air gap and thermal potting compound. The solid-state electronic driver is Class 2 compliant, includes overcurrent and short-circuit protection, and is rated for more than 50,000 hours of operation. Fixtures are compatible with a range of dimming protocols, including electronic low voltage, forward phase, incandescent, magnetic low voltage, and reverse phase, with dimming performance supported using high-quality, factory-approved dimmers.
Optical performance is achieved through proprietary, interchangeable thermoplastic optics available in spot, narrow flood, and flood distributions. A universal version includes both narrow flood and flood lenses, and accessory optics allow for easy beam adjustments in the field. The bayonet-mount lensholder simplifies lens or accessory changes without tools. These fixtures provide 350° horizontal rotation and 90° vertical aiming, allowing precise placement and directional control.
The R600L Series features Juno’s Universal Track Adapter, compatible with Trac-Master 1-circuit or 2-circuit track, Trac-Lites track, monopoints, and other specialized mountings. Copper alloy contacts ensure positive electrical connections without arcing, and a spring-loaded latch with embossed polarity arrows secures the fixture to the track. The adapter includes an on/off switch and a two-position power contact for two-circuit applications. Alternate adapters are available for GTYPE, HTYPE, and LTYPE tracks, assembled specifically for compatibility with each system and offered in appropriate finish options.
Safety and regulatory compliance include UL and C-UL listings, with certain 90 CRI and 97 CRI models qualifying for California Title 24, Part 6 high-efficacy LED requirements. Where noted, the fixtures are DesignLights Consortium® (DLC) qualified. All units are union-made and assembled in the USA, meeting Buy America(n) Act requirements under FAR, DFARS, and DOT regulations. These R600L LED track lighting heads combine classic aesthetics, long life, flexible aiming, and compatibility with multiple track systems, making them a practical and attractive choice for commercial, retail, and residential track lighting applications.
