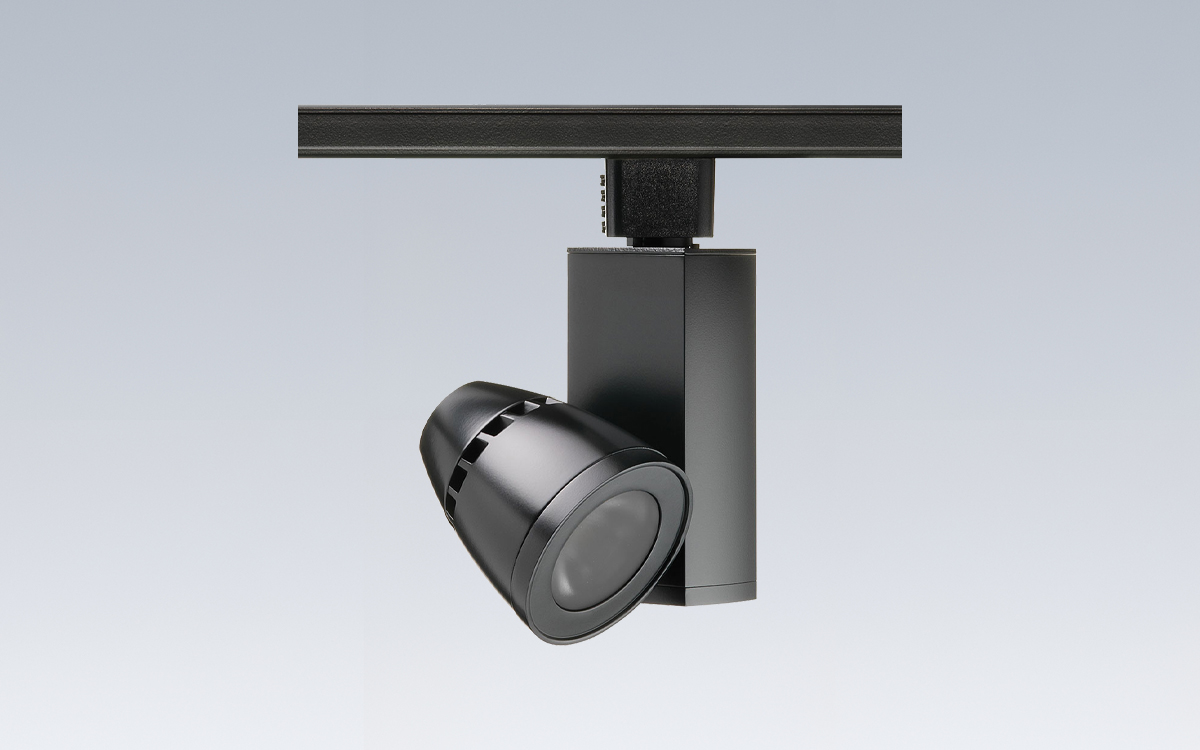

The Juno® T261L Conix® II warm dimming LED track light presents a sleek, sculpted aesthetic that is unrivalled in the industry, combining elegance with contemporary appeal. Its refined design carries through every element, producing a fixture that enhances any décor while maintaining visual subtlety. The Conix II fixtures incorporate integral TIR optics capable of achieving uniform spot, narrow flood, and flood distributions. Available in 11W and 16W versions, the Conix II LED can deliver up to 1,132 lumens while consuming less than one-third of the energy of halogen equivalents. The passively cooled design contains no moving parts, ensuring a reliable 50,000-hour service life. These LEDs are compatible with all Juno line-voltage track and standard adapter accessories and are offered in 2700K, 3000K, 3500K, and 4000K color temperatures with 80 or 90 CRI. Optional SpectralWhite versions provide 90+ CRI for richer color rendering and naturally brilliant whites, and WarmDim® options simulate halogen dimming from 3000K down to 1800K at 90 CRI.
The Conix II LED track light housing is constructed from all-metal materials with a custom-designed, concealed heat sink, providing exceptional thermal management and maintaining 70% average lumen output over 50,000 hours. Its passively cooled design eliminates moving parts, increasing durability. The extruded aluminum, vertically mounted driver housing integrates seamlessly with concealed fixture wiring for a clean, minimalist aesthetic. Available finishes include black, white, and silver painted surfaces. The LED array incorporates high-brightness white phosphor LEDs with a 3-step MacAdam Ellipse for static white versions and a 2-step MacAdam Ellipse for WarmDim versions. Standard models maintain a minimum 80 CRI, while optional high CRI models reach 90 CRI with an R9 value greater than 50. SpectralWhite versions enhance whites and colors, and WarmDim versions emulate halogen color dimming while maintaining 90 CRI minimum.
The solid-state electronic driver is housed in a side-mounted vertical enclosure to minimize overall footprint, with an insulating air gap optimizing thermal performance. The driver provides quiet operation with or without dimming, includes integral overcurrent and short circuit protection, and is Class 2 compliant with FCC Class B certification. Static white fixtures are dimmable using Juno-approved reverse phase ELV dimmers, as are WarmDim fixtures, supporting both Acuity nLight dimming controls with Phase Adaptive Power Packs and conventional incandescent, magnetic low voltage, or electronic low voltage dimmers. Dimming ranges extend from 100% down to as low as 3%, depending on dimmer model and installation.
Optical control is provided through computer-designed, interchangeable TIR optics. Static white versions include factory-configured beam spreads, including spot, narrow flood, flood, and wide flood, with accessory optics available for field adjustments. WarmDim optics utilize a high-efficiency micro-optic film to achieve uniform beam patterns, with accessory films available for optional beam modification. The Conix II LED incorporates an integral bayonet-mounted accessory holder accommodating one accessory, enhancing flexibility for beam shaping and light control.
Aiming capability includes 360° horizontal rotation and over 90° vertical tilt, ensuring precise fixture orientation. Track compatibility includes Juno Universal adapters for Trac-Master, Trac-Lites, monopoints, and specialized mounting options, along with alternate TEK/HTEK, GTYPE, HTYPE, and LTYPE adapters for use with various competitive track systems. All adapters are UL-recognized and include features such as spring-loaded positive latches, on/off switches, and two-position power contacts where applicable.
Conix II LED track heads are UL and C-UL listed and meet DesignLights Consortium® qualifications where noted. Fixtures are union-made and assembled in the U.S.A., with an operational temperature range of -22°F to 104°F depending on model. The product meets Buy American Act and Build America Buy America requirements. Overall, the Juno T261L Conix II LED track light combines sophisticated design, robust thermal management, high-quality color rendering, flexible optical control, and broad track compatibility, delivering a versatile and reliable lighting solution for contemporary architectural environments.
