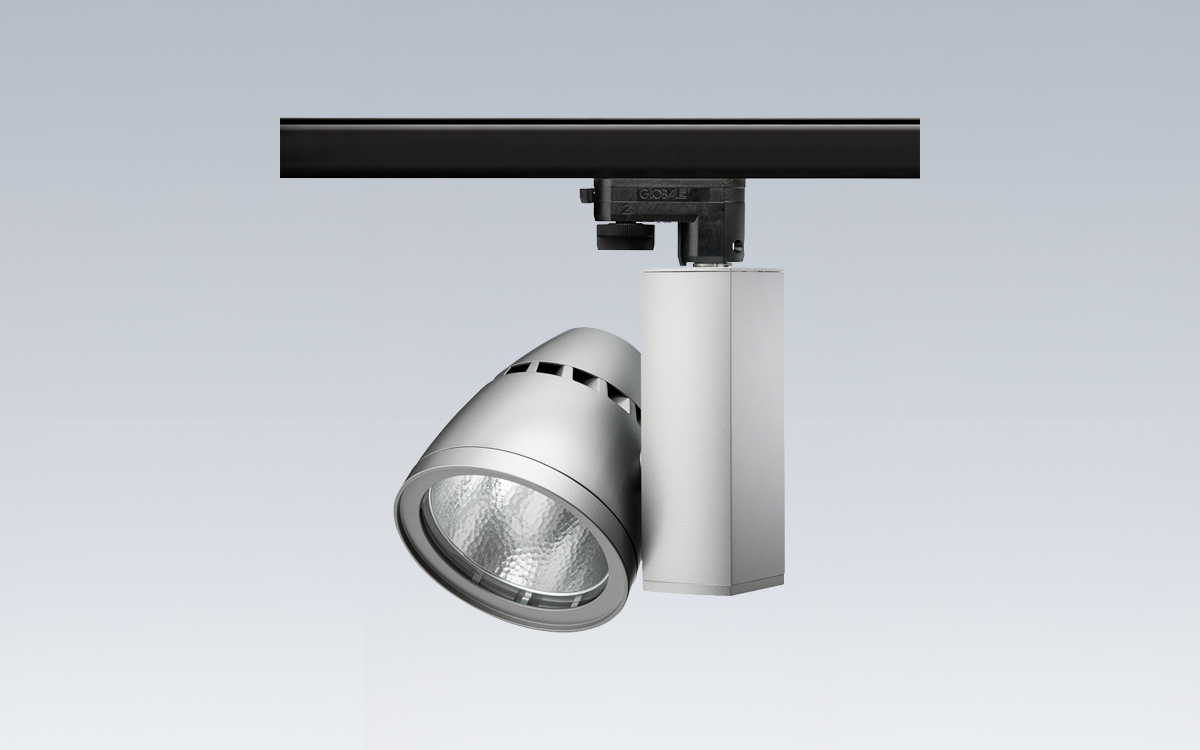

The Conix II LED track light with HTEK adapter is intended for use on 277V, 2-circuit/2-neutral track systems and delivers a modern, sculpted aesthetic that combines elegance with functional performance. The fixture is available in three beam spreads, four color temperatures—2700K, 3000K, 3500K, and 4000K—and three finishes: white, black, and silver. High CRI versions are offered for enhanced color rendering. All-metal construction ensures durability, and an integral, bayonet-mounted accessory holder accommodates up to two accessories, replacing the standard clear glass lens if desired. The Conix II is both ENERGY STAR® and DesignLights™ Consortium qualified, meeting stringent energy and quality standards.
The 52W Conix II LED track light produces up to 4907 lumens while consuming less than one-third of the energy of traditional halogen equivalents, with a rated life of 50,000 hours. Integral reflectors provide precise beam control, allowing for spot, narrow flood, flood, or wide flood distributions. The fixture is compatible with all Juno line voltage track and standard adapter accessories, ensuring flexibility in residential and commercial applications.
Construction of the Conix II emphasizes thermal efficiency and long-term reliability. The all-metal housing and custom-concealed heat sink provide outstanding thermal management, maintaining 70% lumen output at 50,000 hours. Passive cooling eliminates moving parts, and the extruded aluminum side-mounted LED driver housing minimizes the fixture footprint. Concealed wiring supports a clean installation aesthetic. The high-performance LED array offers consistent color quality within a 3-step MacAdam Ellipse, with standard 80 CRI and optional 90 CRI versions. The driver is solid-state electronic, Class 2 compliant, with integral overcurrent and short circuit protection, providing quiet operation with or without dimming. 120V versions are dimming-compatible using approved reverse phase ELV dimmers.
Optical performance is achieved through precision-designed reflectors, which can deliver spot, narrow flood, flood, or wide flood beam spreads with uniform color mixing. Accessory reflectors are available to allow field conversion between beam distributions. The integral bayonet-mounted accessory holder accommodates up to two accessories, providing additional flexibility in beam shaping and lensing.
The Conix II track light is compatible with multiple track adapters. The universal track adapter works with Trac-Master 1-circuit or 2-circuit tracks, Trac-Lites tracks, monopoints, and special mountings, and is UL recognized for ConTech® LT Series tracks. Oversized adapters ensure mounting stability, and copper alloy contacts provide reliable electrical connection with spring-loaded positive latching. Alternate TEK/HTEK, GTYPE, HTYPE, and LTYPE adapters are also available, each system-specific and assembled to the fixture, with two-position power contacts for two-circuit applications where applicable.
The fixture provides 360° horizontal rotation and over 90° vertical aiming capability. It carries UL and C-UL listings and is union made in the U.S.A. The Conix II is compliant with Buy American Act (BAA), Build America Buy America (BABA), and DOT Buy America regulations, qualifying as a domestic end product and manufactured in the United States. Certain versions are DesignLights Consortium® qualified, with the HTEK option excluded, making it suitable for projects requiring verified high-efficiency LED light sources.
