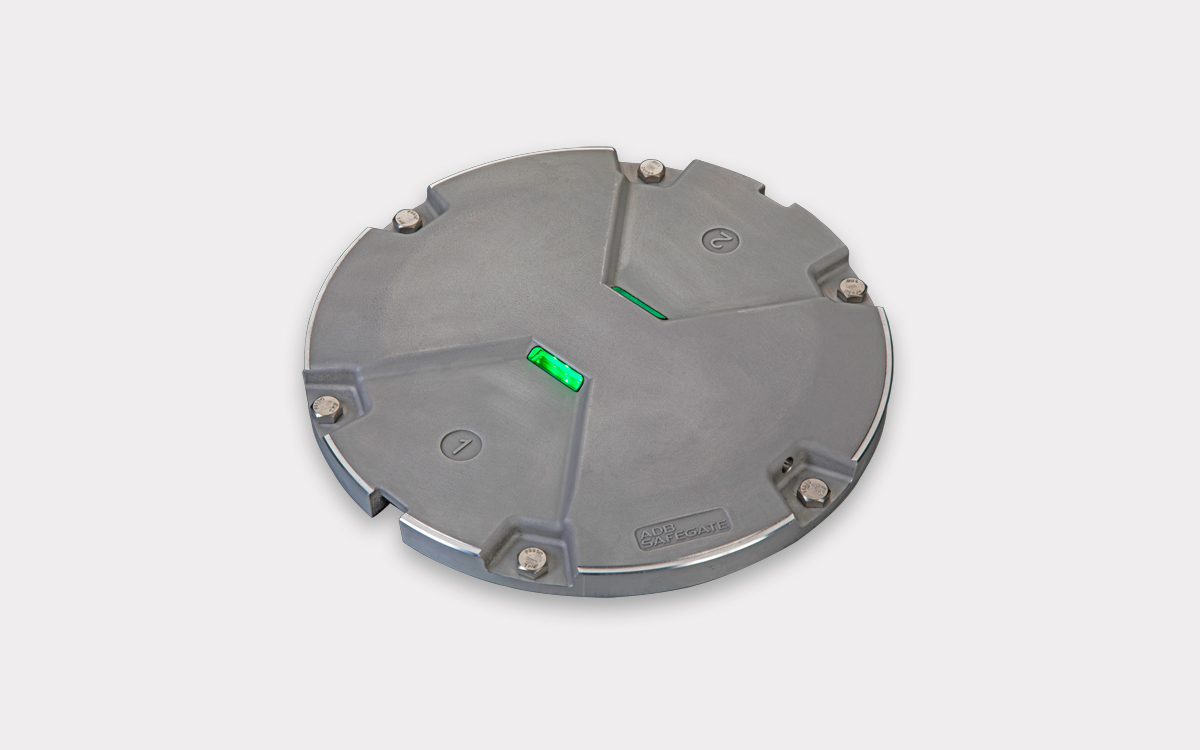

The AXON series of LED taxiway centerline inset lights represents the pinnacle of airfield lighting innovation, offering a smart, rugged, and highly adaptable lighting solution for modern airports. Engineered for both performance and durability, the AXON inset fixtures are available in multiple FAA-standard configurations—including L-852A(L), L-852B(L), L-852C(L), L-852D(L), L-852J(L), and L-852K(L)—to support taxiway centerlines, lead-on, and exit guidance applications. These 8-inch and 12-inch inset lights are FAA and UFC compliant, fully ETL certified to AC 150/5345-46, and meet the rigorous requirements of FAA Engineering Brief No. 67 and UFC 3-535-01.
At the core of the AXON system is an advanced optical design that enhances photometric performance, ensures consistent illumination, and optimizes LED lifespan. The newly developed prism deflector incorporates an optical window with chamfered corners, providing better resilience against impact from snowplows and maintenance vehicles. The improved mechanical architecture reinforces structural integrity, consolidates components for easier servicing, and includes a reinforced top cover that significantly exceeds durability standards. A reduced bottom pan profile enables installation in very shallow base cans, making the AXON fixtures suitable for a wide range of field conditions and retrofit scenarios.
These low-profile, Style 3 inset fixtures (≤ 6.35 mm protrusion) are intelligently engineered for precision and safety. They include robust SO-style cord sets that resist water ingress and insulation damage, as well as extra-large bolt openings and integrated pry slots to streamline installation and torque adjustments. The prism design also eliminates negative slope in front of the lens, reducing debris accumulation and maintaining optimal light output.
One of AXON’s standout features is the optional integration of the LINC 360 communication module, which introduces cutting-edge technology to enhance data transmission between each fixture and the airfield lighting control system. This high-capacity, noise-resistant platform dramatically improves system responsiveness and monitoring capabilities. AXON fixtures operate at all brightness steps using constant current regulator (CCR) systems designed to FAA and IEC standards. They also support LED pulse-width modulation (PWM) at 400 Hz, eliminating perceptible flicker and ensuring smooth performance at any brightness level. Additionally, the lights are fully dimmable and calibrated to match traditional halogen dimming curves for seamless operation alongside legacy systems.
Designed for long-term sustainability, AXON fixtures utilize the latest generation LEDs and encapsulated universal power supplies that serve multiple inset lighting families—including runway, taxiway, approach, and omnidirectional variants. Their high efficiency and low power consumption contribute to significant energy savings and reduced maintenance cycles. The IP68-rated housing and stainless steel fasteners ensure reliable operation in harsh environmental conditions. Reinforced prisms are also available as an option for installations demanding maximum ruggedness.
Safety is central to the AXON design philosophy. The fixtures include fail-open options for compatibility with older monitoring systems, fail-LED detection per Engineering Brief 67D, and robust lightning protection in accordance with ANSI/IEEE C62.41-1991 Location Category C2 standards. This provides peace of mind against power surges and electromagnetic interference, helping maintain uninterrupted lighting under extreme conditions.
With more than half a million LED fixtures deployed across the U.S., the AXON series exemplifies next-generation airfield lighting. Its superior optical performance, mechanical resilience, smart system integration, and compliance with global aviation standards make it an ideal choice for airports seeking a high-performance, future-proof solution for airfield ground lighting.
