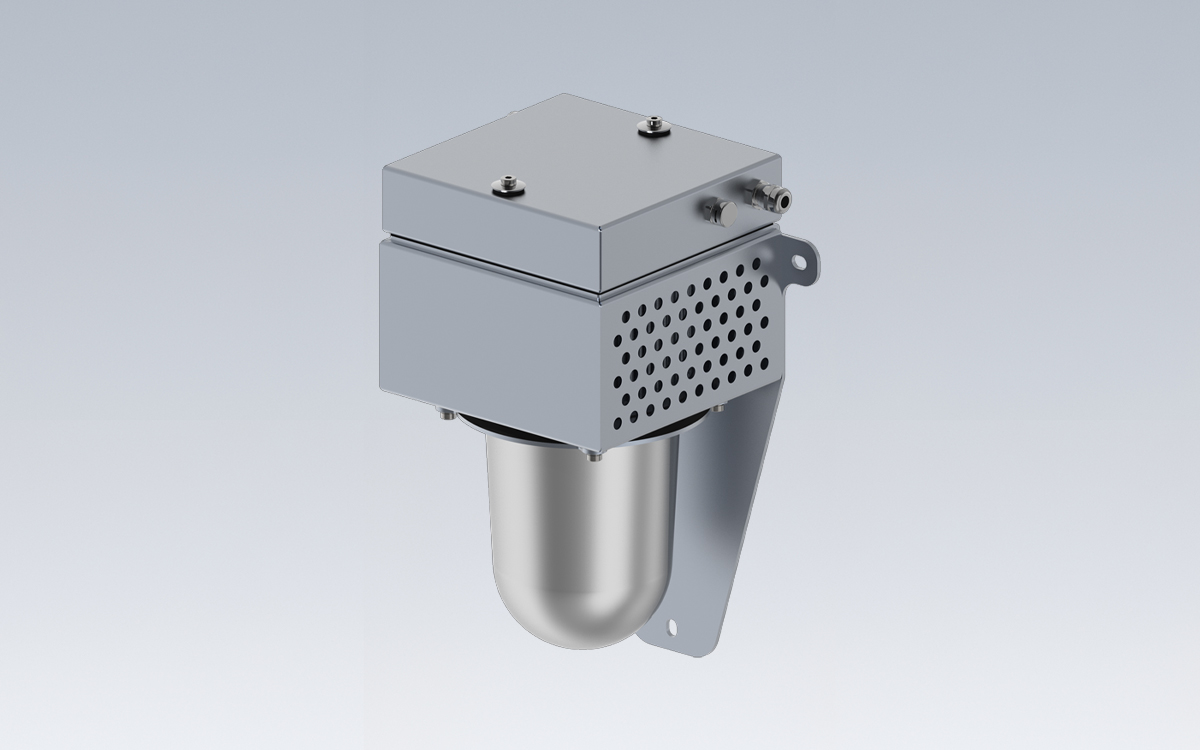

The tempLED RayWay HT high-temperature LED route and orientation light is a robust solution for industrial indoor and outdoor applications requiring reliable pathway and orientation lighting under extreme conditions. With two selectable power levels ranging from 30 to 50 watts, it provides safe and uniform light for roadways, traffic areas, walkways, tunnels, and directly under doors or hall gates, even in industrial environments exposed to temperatures up to +70 degrees Celsius. Its completely modular design allows for easy replacement and exchange of main components, while DALI-2 dimming comes standard, ensuring precise light control. The luminaire features a stable light emission bulb made of 7-millimeter-thick glass, sandblasted on the inside, which produces a clean and even 180-degree light distribution. A five-year full warranty combined with a ten-year spare parts guarantee ensures long-term reliability and security for industrial operations.
The luminaire is powered by a constant current power supply with integrated DALI-2 dimming and an optional constant lumen output (CLO). Its high-performance heat sink, constructed from die-cast aluminum and designed with a chimney effect, efficiently manages thermal conditions in high-temperature environments. A pressure compensation membrane prevents condensation, and the modular structure allows for the exchange of individual components to maintain optimal performance over time. Optional control and safety systems enhance operational flexibility, while the sandblasted glass bulb ensures broad and uniform light distribution. The impact-resistant 7 mm glass construction provides durability in demanding industrial settings.
Lighting properties of the RayWay HT include an initial luminous flux ranging from 3,900 to 6,500 lumens with a luminous flux tolerance of ±10 percent. System efficiency reaches up to 130 lumens per watt, and available color temperatures are 4,000 kelvins and 5,000 kelvins. The light maintains a color rendering index (CRI) of Ra > 80 and color consistency of less than 5 SDCM. The luminaire emits light symmetrically over a 180-degree beam angle and meets photobiological safety standards according to IEC/TR 62778, with compact flicker degree (CFD) available on request.
Electrotechnically, the RayWay HT operates on AC power from 198 to 240 volts and DC power from 176 to 250 volts, supporting a system performance of 30 to 50 watts with a ±10 percent tolerance. It maintains a power factor above 0.97, includes overvoltage and overheating protection, and features integrated temperature monitoring. Total harmonic distortion (THD) is below 8 percent, and the luminaire has a temperature classification (ATEX) of T5 with a Tc temperature of +85 degrees Celsius.
Mounting options include standard wall mounting, with optional ceiling mounting available via a ceiling bracket. Control and safety properties extend to DALI-2 dimming with a minimum dimming level of 5 percent, optional constant lumen output, Casambi network control, and human-centric lighting upon request. A daylight control system can also be integrated via the Casambi network for enhanced energy management.
The housing is built to withstand extreme conditions, with an operating temperature range of –40 to +70 degrees Celsius. It has IP67 ingress protection, IK08 impact resistance, and electrical protection class I. The housing and heat sink are constructed from die-cast aluminum and steel, while the 7 mm sandblasted glass bulb is opaque for uniform light diffusion. The luminaire housing is finished in white aluminum according to RAL 9006 with a powder-coated surface, and through wiring is facilitated by a 5-pole terminal block. Supply cable in- and outlets are secured with two cable glands, and the electrical configuration includes 3 grid / 2 DALI poles.
Additional information highlights the ENEC certification in preparation, CE and RoHS conformity, and compliance with DIN 10500 (HACCP | IFS) standards. The LED light source has a lifespan of approximately 100,000 hours (L70B10C1) or 50,000 hours (L90B10C1). The product includes a luminaire and a dummy plug for the cable gland, supported by a five-year full warranty and a ten-year spare parts guarantee, making it a reliable and long-term investment for high-temperature industrial lighting needs.
