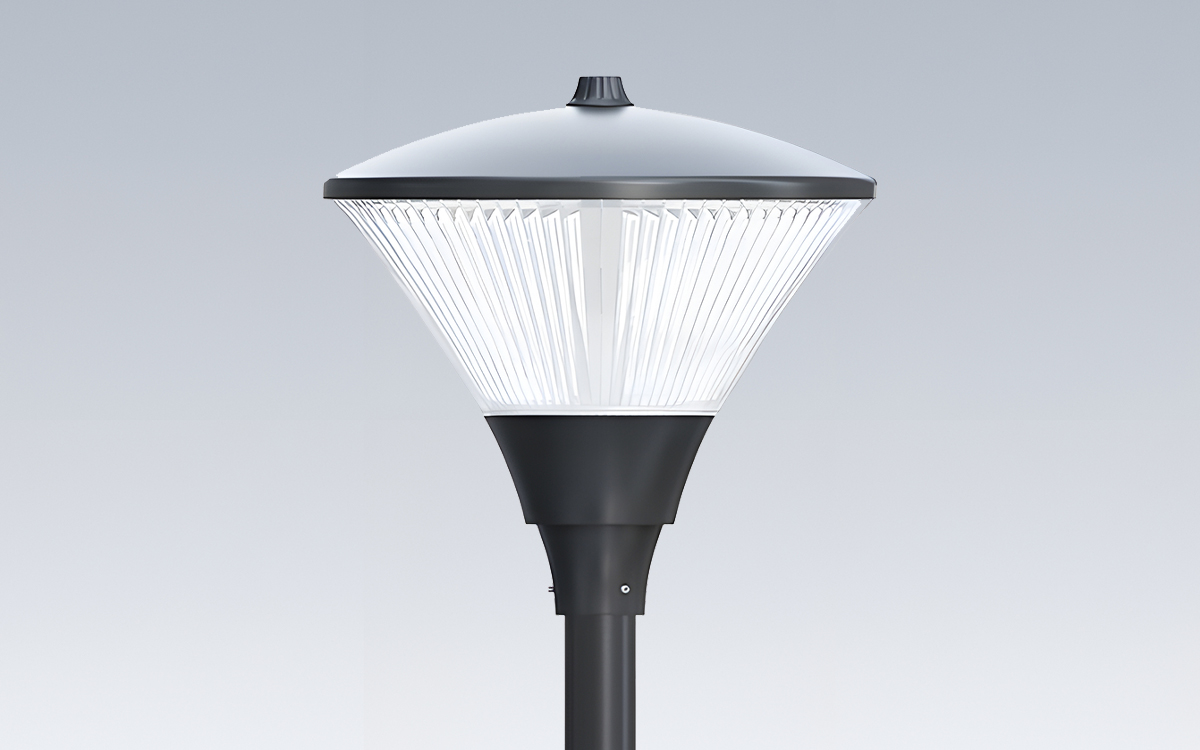

The ZG-6116 series LED post top light combines architectural elegance with functional lighting performance for a range of outdoor applications at regional, site, and pedestrian scales. This luminaire is specifically designed to enhance streetscapes, parking areas, parks, and residential roadways, delivering consistent and uniform light coverage while minimizing glare through the use of precision-engineered PC lenses. Its optical system ensures high visibility for pedestrians and drivers alike, providing a safe and comfortable lighting experience across diverse outdoor environments.
Constructed from high-quality die-cast aluminum (ADC12), the ZG-6116 offers robust durability and long-term reliability even in challenging outdoor conditions. The fixture is compatible with Ø60mm poles as standard, and an optional Ø76mm mounting solution is also available, giving flexibility for different urban and site installation requirements. Class I and Class II LED drivers are supported, allowing customization according to project specifications. The luminaire also supports timer dimming, making it particularly suitable for locations such as parking lots, parks, and residential streets where variable lighting schedules are desirable.
This post top light series covers a wide power range from 30W to 70W and achieves luminaire efficacy up to 120 lm/W. It operates on a voltage range of 100–240/277 VAC at 50/60 Hz, with a power factor greater than 0.95. To ensure operational safety and resilience, the ZG-6116 includes surge protection with a standard rating of 10 kV, extendable to 20 kV on request. The driver and surge protection device are designed for easy removal and replacement, minimizing maintenance efforts.
The optical design features a Type V short distribution, which delivers uniform coverage for street and pathway lighting while maintaining visual comfort. The luminaire is IP66-rated for protection against dust and water ingress and IK08-rated for impact resistance, ensuring durability in a variety of outdoor conditions. Control options include 1–10V dimming by default or timer-based dimming schedules, providing flexibility for adaptive lighting strategies. Certified to CE, ROHS, LM80, TM-21, IEC62471, and other relevant standards, the ZG-6116 LED post top light combines reliability, longevity, and aesthetic appeal, supported by a five-year warranty for added confidence in long-term outdoor lighting projects.
