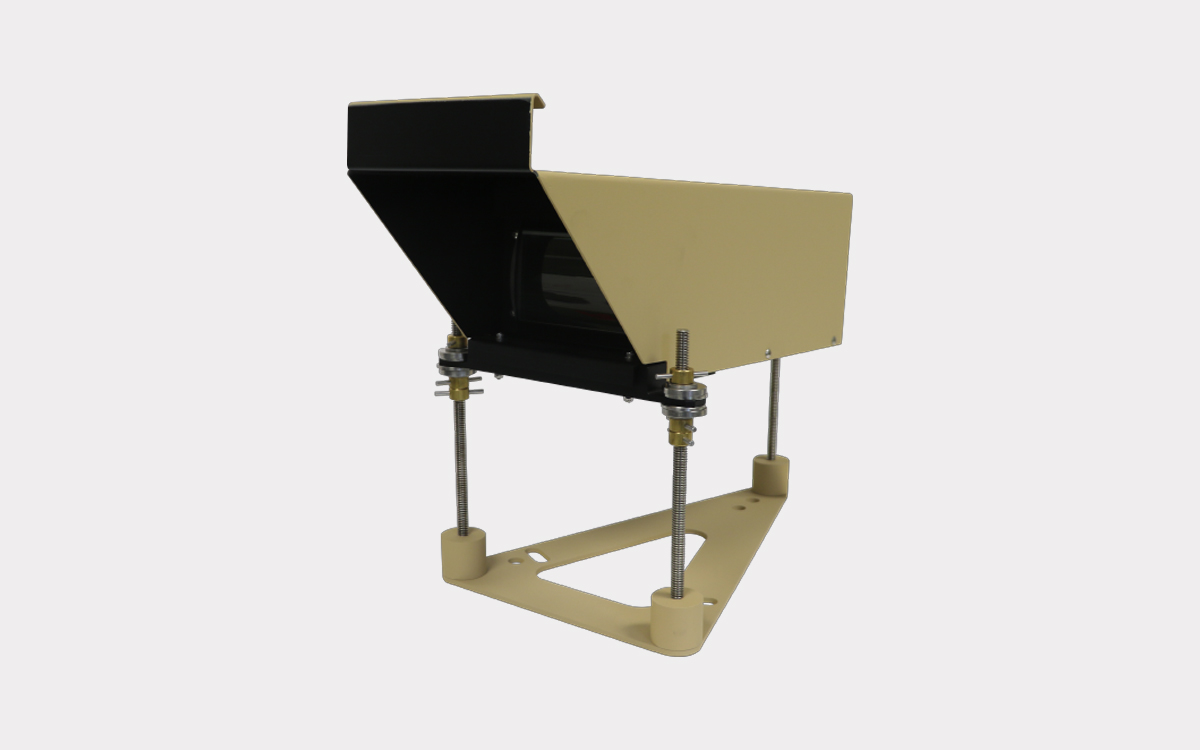

The AV-PAPI is a highly efficient LED Precision Approach Path Indicator designed to provide pilots with clear, reliable visual guidance during aircraft approaches. Available in both 4-box and 2-box configurations, the AV-PAPI is certified to meet FAA L-880/881 (L) standards under Intertek AC 150/5345-28H Style A Class I, with certification for Style B currently pending. It has also undergone rigorous third-party photometric and chromaticity testing in compliance with ICAO standards. This allows the AV-PAPI to meet both FAA and ICAO requirements within a single, compact, and lightweight unit, making it an exceptional solution for a variety of airport operations worldwide.
One of the unique features of the Avlite LED PAPI system is its capability to support both visual and infrared (IR) operational modes within the same optic. This innovative dual-mode functionality can be switched by ground operators, allowing pilots to receive approach slope information either through the traditional red/white light indication or via flashing infrared combinations. The system’s advanced optical design achieves the industry’s lowest power consumption while maintaining uniform light intensity and delivering the sharpest red/white transition line, which is critical for conveying accurate approach slope information to pilots.
Designed for flexibility and adaptability, the AV-PAPI system is suitable for rapid deployment in temporary or expeditionary airfields, as well as for long-term service in permanent airfields. Its third-generation design benefits from extensive field experience, with hundreds of systems successfully deployed across the globe. The unit is engineered for high reliability and minimal maintenance costs, ensuring dependable performance even in demanding military and humanitarian applications.
The AV-PAPI is available in both portable and permanent mounting configurations, supporting a wide range of power options to suit diverse operational needs. These include AC power ranging from 90 to 264 VAC at 50/60 Hz, DC power with 3- and 5-step current inputs, solar power, and constant current regulation (CCR) compliant with ICAO requirements. Control options are equally versatile, including fixed, wireless, manual controls, and Pilot Activated Lighting Control/ARCAL, with power line control available in AC versions. The system’s LEDs are long-lasting, further reducing maintenance requirements and ensuring sustained performance.
Additional features include marine-grade finishes available in ICAO Yellow, FAA Orange, NATO Green, and Desert Sand, providing enhanced durability and corrosion resistance suitable for harsh environments. The system supports configurations such as two-box FAA Type L-881, four-box FAA Type L-880, ICAO PAPI, and A-PAPI variants. External baffles are incorporated to improve optical performance by reducing stray light and glare.
The AV-PAPI meets or exceeds multiple regulatory standards, including FAA AC 150/5345-28H Style A Class I certification by Intertek, with FAA Style B certification pending. Its voltage and constant current systems comply with ICAO Annex 14 for PAPI (2 and 4 Light Housing Assemblies) and A-PAPI (2 LHAs). The system is also UFC 3-535-01 compliant and holds an FAA National Buy American Waiver, reflecting its quality, performance, and suitability for both civil and military aviation operations.
