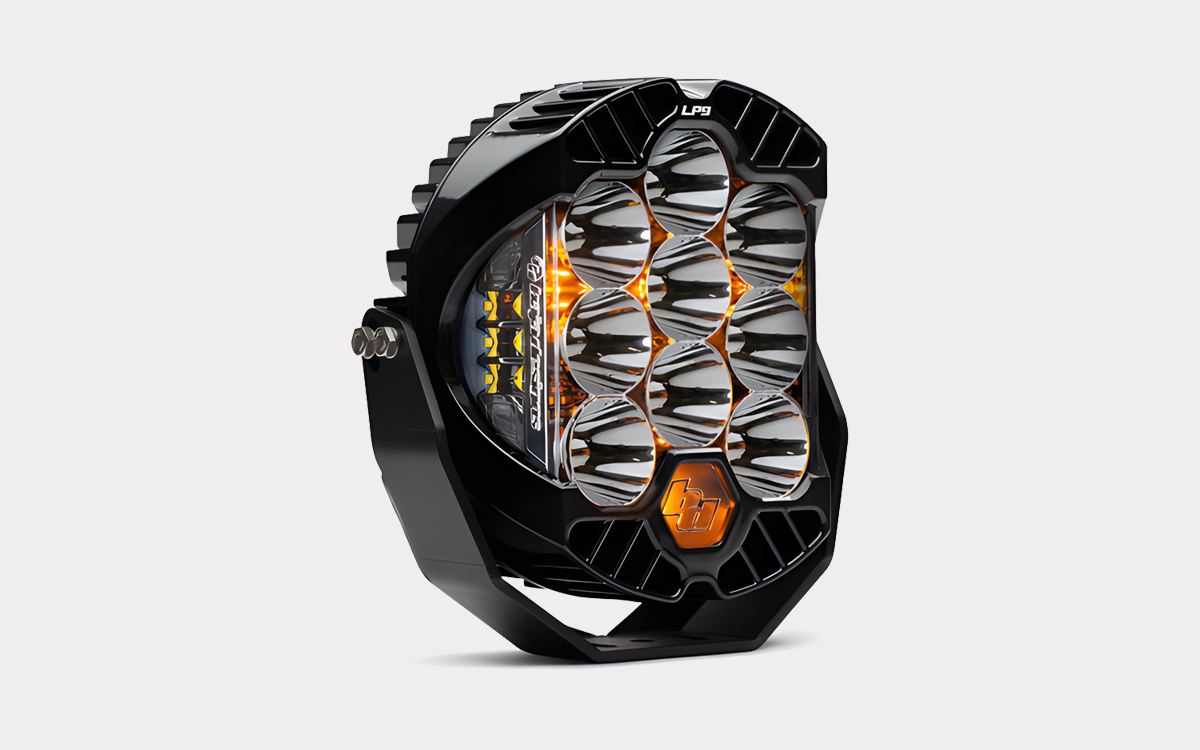

Inspired by Baja Designs’ iconic 8-inch La Paz HID light, the LP9 brings contemporary styling combined with top-tier performance, integrating some of the most advanced LED technologies available today. The LP9 features nine powerful forward-projecting LEDs producing an impressive 11,025 lumens at 105 watts. Complementing these are six LEDs dedicated to Integrated Peripheral Technology (IPT), which generate an additional 1,140 lumens at 10.5 watts per side. This combination results in an outstanding total lumen output and a remarkable 200-degree spread of usable light, ensuring wide-area illumination. The housing is expertly engineered for exceptional heat dispersion, utilizing Direct Ducted Cooling to maintain effective airflow from front to rear, thereby enhancing durability and performance.
The LP9 offers versatile lighting modes, including daytime running light, low, and high-power options, to suit a variety of lighting needs. Available in both a standard model for broad off-road applications and a specialized Racer Edition designed for high-speed driving, the light caters to different performance demands. The Racer Edition maintains a similar power draw but features a tighter beam pattern for enhanced visibility at longer distances. Both models incorporate the innovative uService technology, enabling users to easily change the lens pattern and color to adapt to varying driving conditions or to refresh the lens over time.
With an amperage rating of 9.6 amps and a rated lifespan of nearly 50,000 hours, the LP9 is built to last. The light includes a secondary backlight with a 0.2-amp draw and 2.8 watts, contributing to additional visibility through the IPT system. Constructed from durable powder-coated cast aluminum with a hardcoated polycarbonate lens, the housing is finished in sleek black and equipped with stainless steel mounting hardware for secure installation. The forward-projecting LEDs deliver a beam pattern tailored for the Racer Edition spot configuration, boasting a brightness of 8,374 lumens. The unit is universal in fitment and features overvoltage protection for reliable operation. Connections are facilitated by a DT06-4S Deutsch mating connector, ensuring easy integration with vehicle wiring.
The Baja Designs LP9 off-road light stands as the ultimate solution for enhancing nighttime visibility and safety. It evolves from the renowned 8-inch La Paz HID light by incorporating cutting-edge LED technology for superior performance. This light combines nine forward-projecting next-generation LEDs with three Integrated Peripheral Technology LEDs on each side, providing an expansive 200-degree illumination spread. Offered in three distinct models, the LP9 Pro excels at delivering bright light across near and mid-field zones (1-3) while extending spot lighting capabilities into zone 4 for high-speed scenarios.
Installation flexibility allows the LP9 Pro to be mounted on your front grille to complement existing headlights or attached to a Baja light bar on your roof for extended range projection. No matter the placement, the LP9 Pro ensures that drivers can identify dips, rocks, wildlife, and other obstacles well before they become hazards, making it an essential upgrade for off-road enthusiasts who demand uncompromising performance and safety.
