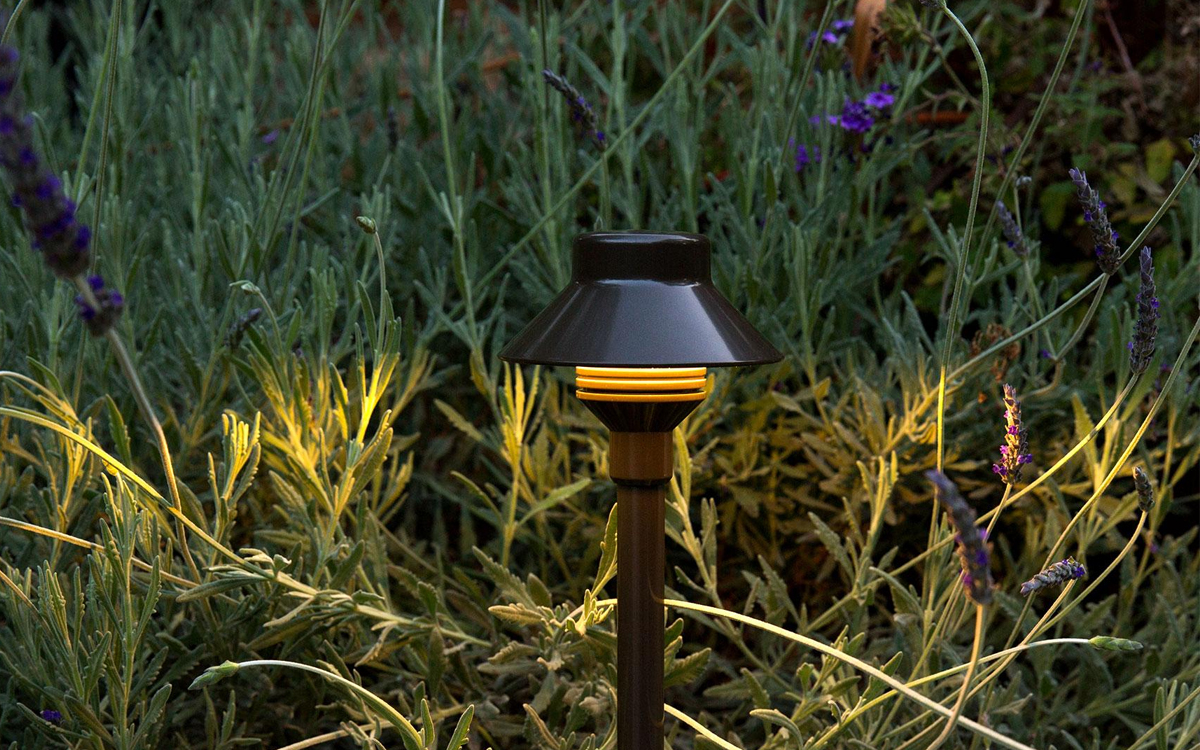

The TM LED Path Light by FX Luminaire is a refined lighting solution tailored for mid-sized landscapes, blending performance with contemporary elegance. With its compact cap and streamlined profile, the TM doesn’t just light up walkways—it enhances them with a sophisticated architectural touch. Despite its minimal size, it delivers powerful illumination, balancing style with substance.
Constructed from die-cast aluminum, the TM is engineered for durability and outdoor longevity. It features a dual-layer marine-grade finish, including a sulfuric acid anodization followed by a polyester TGIC powder coat, ensuring superior resistance to corrosion and harsh weather. Designed to operate on 10–15V input voltage, the TM is compatible with both AC and DC systems and requires a remote transformer for operation.
At the core of the fixture is an integrated LED module featuring Lumileds® LEDs, known for their high efficiency and long life. These LEDs are protected by gold-plated connectors and a conformal coating for added reliability and corrosion resistance. With proprietary onboard thermal management, the TM intelligently regulates temperature for maximum performance and a rated lifespan of up to 72,000 hours (55,000 hours for the ZDC version). The LED module is both field-upgradable and replaceable, offering long-term flexibility.
The TM offers three output configurations—1LED, 3LED, and ZDC—with varying levels of light output, efficacy, and control options. It supports both phase-cut and PWM dimming and is fully compatible with Luxor® technology, enabling zoning, dimming, and even full-color RGBW control when paired with the ZDC option. Users can group fixtures into up to 250 zones and fine-tune brightness in 1% increments, or unlock a palette of 30,000 colors for dynamic lighting scenes.
For optical performance, the fixture includes a conical reflector designed to maximize light distribution based on riser height, and a frosted polycarbonate lens that provides durability while diffusing light gently along the path. Additional color temperature lenses are available as accessories for customized ambiance.
The fixture’s robust build extends to every detail, including the aluminum A380 housing, machined ¾" riser, and ½"-14 NPSM threads. The socket is sealed with MoistureBlock™ technology to prevent moisture intrusion, and wiring includes a 10-foot lead with high-temperature-rated insulation. Installation is made easy with the included 12-inch ABS slotted spike, and the TM is intended for downward-facing use only. With a weight of 4.0 lbs (1.8 kg), it provides a solid, secure installation.
Environmentally conscious in its design, the TM Path Light utilizes recycled materials wherever possible while maintaining excellent performance. It is compliant with international standards (IEC 60598-1 and IEC 60598-2-4) when used with appropriate mounting accessories and is available with wildlife-friendly options. This blend of rugged build quality, aesthetic versatility, and intelligent control makes the TM a standout choice for premium landscape path lighting.
